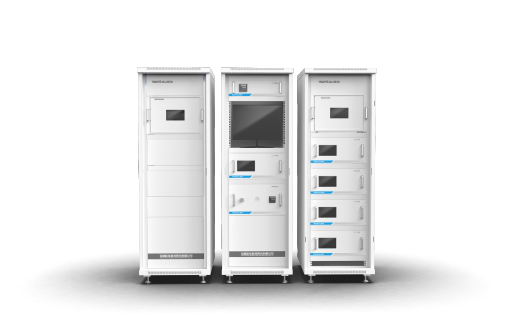

AQ7000 Air Quality Automatic Monitoring System
The AQ7000 Air Quality Automatic Monitoring System is designed for real-time monitoring of air quality parameters such as SO2, NOx, CO, O3, PM10, PM2.5, and more. It provides accurate and reliable data for environmental management and pollution control.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| SO2 Measurement Range | 0-1000ppb |
| SO2 Measurement Accuracy | ±1% |
| NOx Measurement Range | 0-1000ppb |
| NOx Measurement Accuracy | ±1% |
| CO Measurement Range | 0-50ppm |
| CO Measurement Accuracy | ±1% |
| O3 Measurement Range | 0-1000ppb |
| O3 Measurement Accuracy | ±1% |
| PM10 Measurement Range | 0-1000μg/m³ |
| PM10 Measurement Accuracy | ±5% |
| PM2.5 Measurement Range | 0-1000μg/m³ |
| PM2.5 Measurement Accuracy | ±5% |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
VOCs Optical Gas Imaging Thermal Camera
Gas Analysis
Ulirvision
: Cooled high sensitivity detector : 30μm
-
CO2 Optical Gas Imaging Thermal Camera
Gas Analysis
Ulirvision
: Cooled high sensitivity detector : 30μm
-
SF6 | NH3 Gas Leak Detection Infrared Thermal Camera
Gas Analysis
Ulirvision
: Cooled Quantum Well Detector (QWIP) : 15μm
-

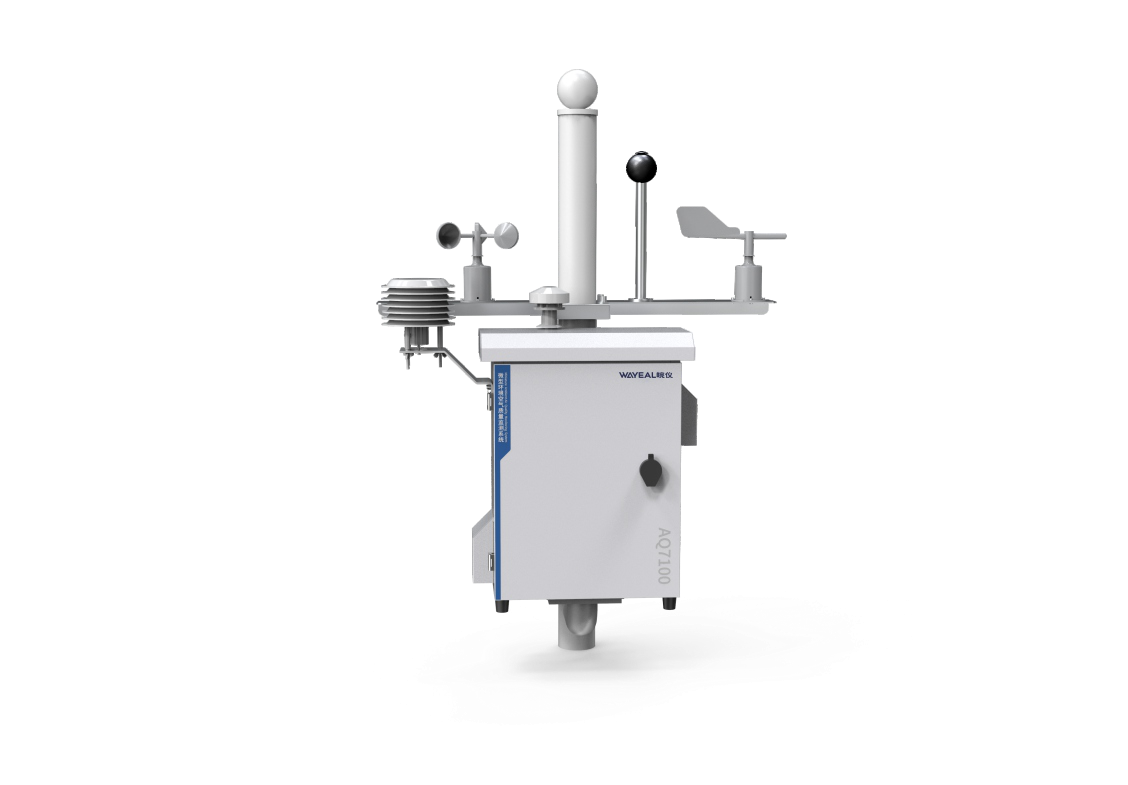

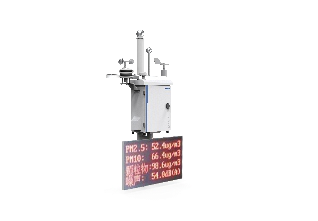

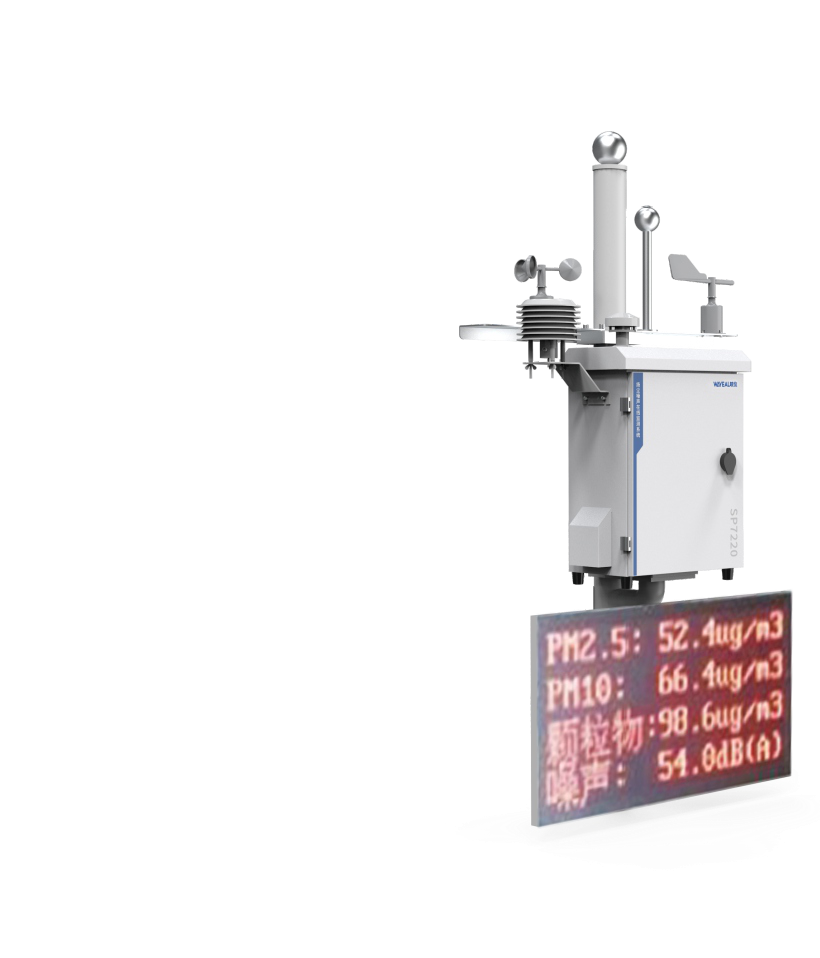

AQ7100 Micro Ambient Air Quality Monitoring System
Gas Analysis
Wayeal
Monitoring Factors: SO2、NO2、CO、O3、PM2.5、PM10 Meteorological Parameters: 风速、风向、温度、湿度、大气压 Monitoring Network Mode: 高密度网格化布局、群防式协同监测网络
The AQ7100 Micro Ambient Air Quality Monitoring System is a low-cost, multi-parameter integrated compact ambient air monitoring system developed by WAYEAL based on its extensive experience in the environmental monitoring field. Through a scientific and rational 'combined point placement' deployment scheme, the system targets various monitoring objects and parameters such as urban residential areas, industrial parks, regional boundaries, road traffic, and pollutant transmission channels, forming a 'group-prevention' collaborative monitoring network and a professional data calibration system. It achieves full coverage of the environmental monitoring network, enables high temporal-spatial resolution air pollution monitoring, and combines information-based big data applications to realize pollution source tracing, early warning and forecasting, providing timely and effective decision support for environmental pollution prevention and control.
-

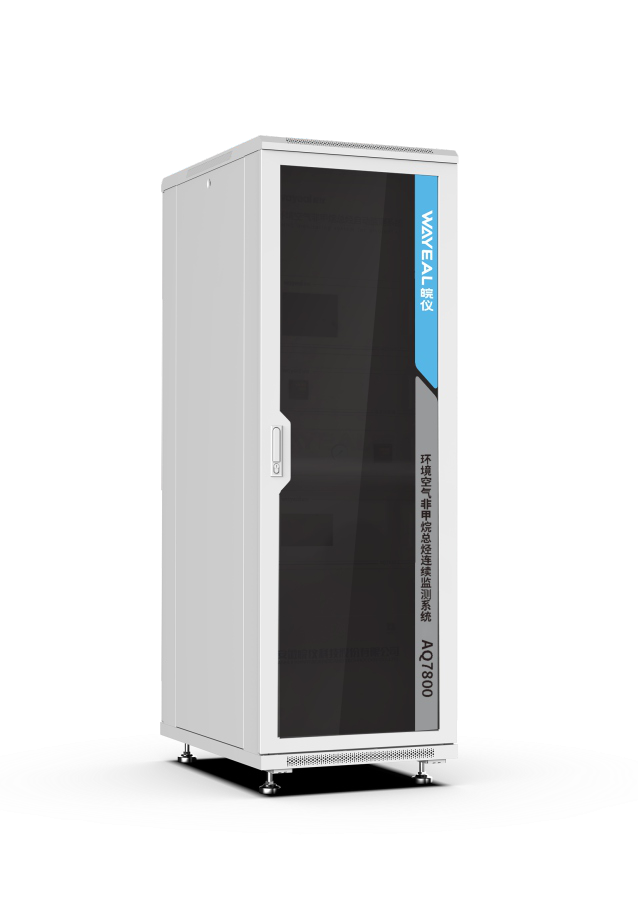

AQ7800 Ambient Air Non-Methane Total Hydrocarbons Continuous Monitoring System (Direct Measurement Method)
Gas Analysis
Wayeal
Detection Method: GC-FID Measurement Method: 直测法（Direct Measurement） Measured Components: 甲烷、非甲烷总烃（CH4、NMHC）
The AQ7800 is a methane and non-methane hydrocarbon analyzer independently developed by WAYEAL for direct measurement of non-methane total hydrocarbons (NMHC) in ambient air. Based on the GC-FID method, the instrument performs backflushing and enrichment processing on the sampled gas to directly measure methane and NMHC concentrations, enabling accurate measurement of higher-concentration NMHC. It complies with HJC-ZY84-2020 'Technical Requirements and Detection Methods for Ambient Air Non-Methane Total Hydrocarbons Continuous Monitoring System'. During operation, ambient air enters the sampling system at a constant flow rate; after dust removal, it is enriched and dehydrated at low temperature through a large-capacity composite trap column. With MFC superimposed sampling volume, valve switching and backflushing, methane and total hydrocarbons are separated into individual peaks for direct concentration determination. The fully heat-traced detection module effectively prevents loss of high-boiling-point and high-concentration samples, achieving a detection limit of ≤1ppbC, superior to the 20ppbC required by the latest standard.
