钛酸锂晶体
Lithium Titanate (LiTaO3) crystal is widely used in optical and acoustic applications due to its excellent piezoelectric and electro-optical properties.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Crystal Size | Diameter: 2-4 inches, Length: 50-100mm |
| Crystal Purity | >99.99% |
| Crystal Orientation | X |
| Crystal Orientation | Y |
| Crystal Orientation | Z |
| Density | 7.45g/cm³ |
| Refractive Index | 2.176 at 632.8nm |
| Dielectric Constant | 43 (at 1MHz) |
| Thermal Expansion Coefficient | 15.7×10⁻⁶/K |
| Hardness | 5 (Mohs scale) |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
Nd:YVO4 Crystal
Laser Crystals
Foctek
Lasing Wavelengths: 914nm, 1064nm, 1342nm Crystal Class: positive uniaxial, no=na=nb, ne=nc Refractive Index no at 1064nm: 1.9573
Nd:YVO4 is a highly efficient laser crystal widely used in diode-pumped solid-state lasers. It offers excellent optical properties, high absorption efficiency, and superior thermal conductivity, making it ideal for various laser applications.
-
Unknown
Laser Crystals
Crystro

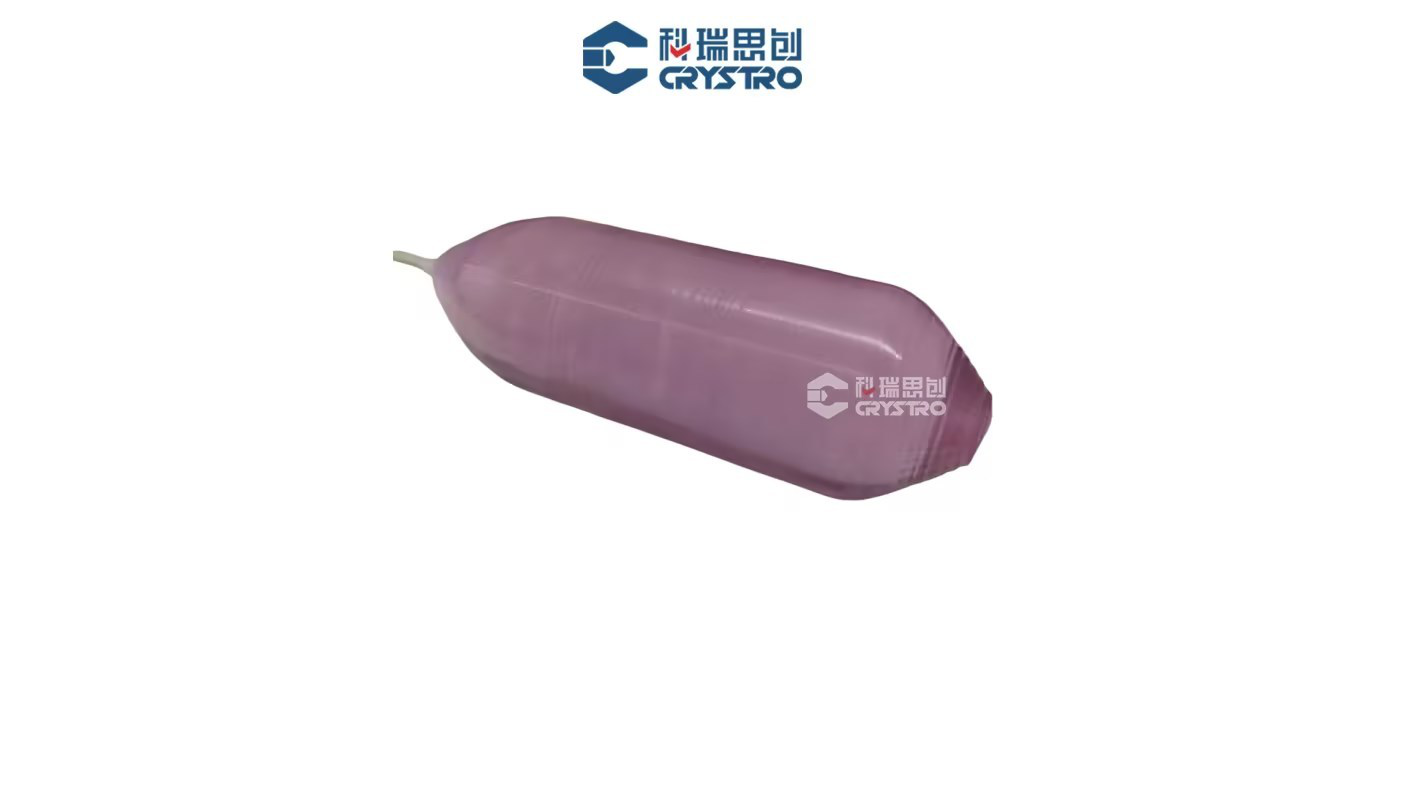

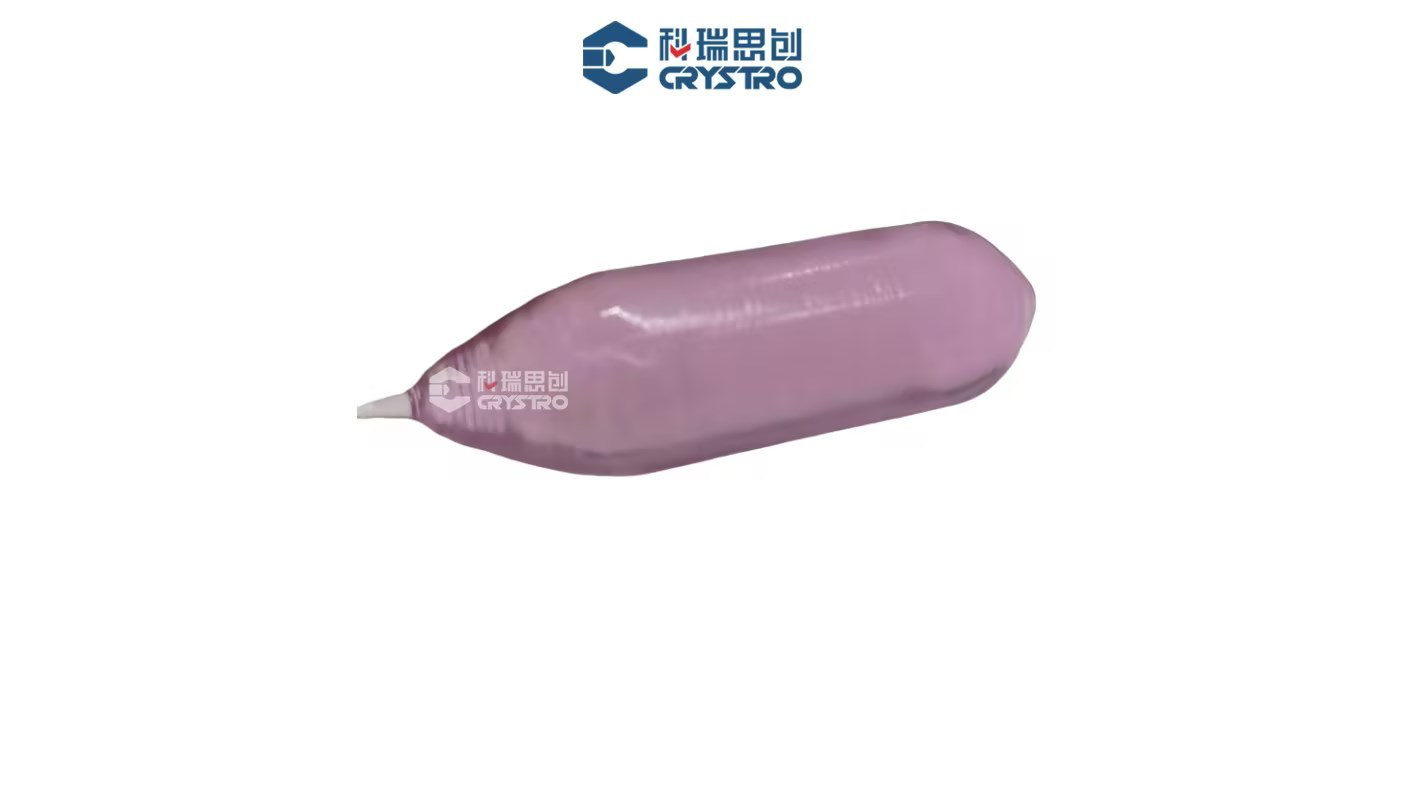

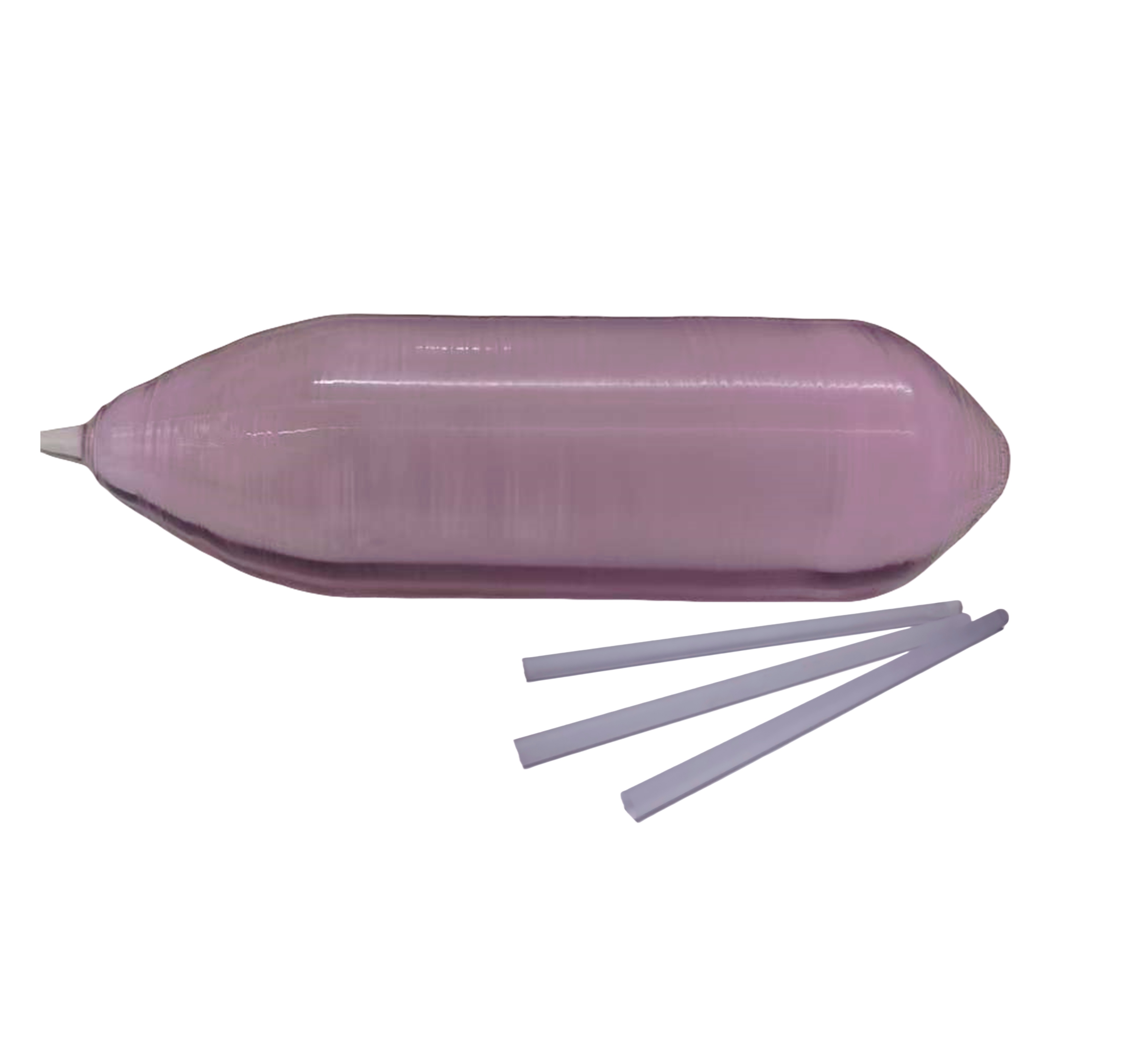

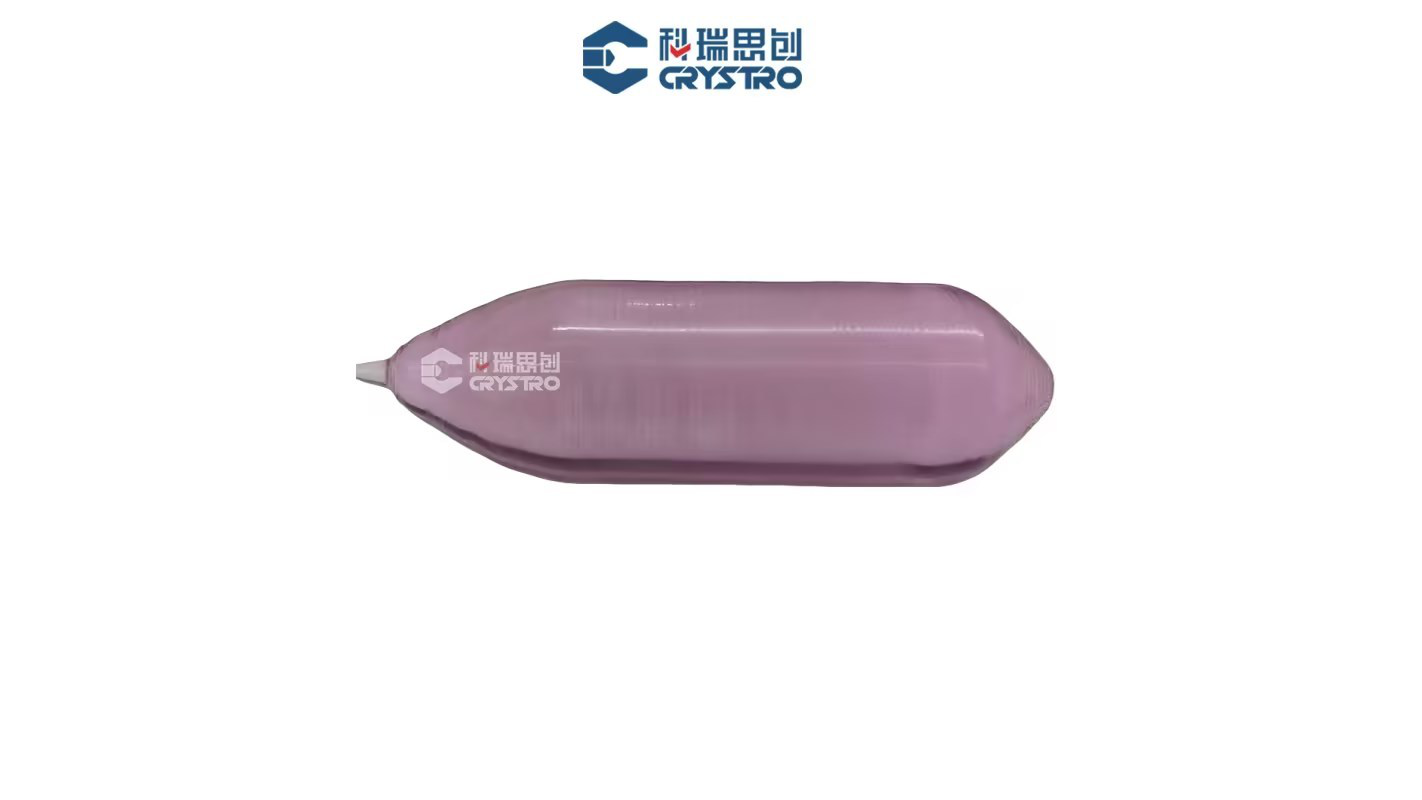

Material Type: Crystal Color: Pink Dimensions: Varies
