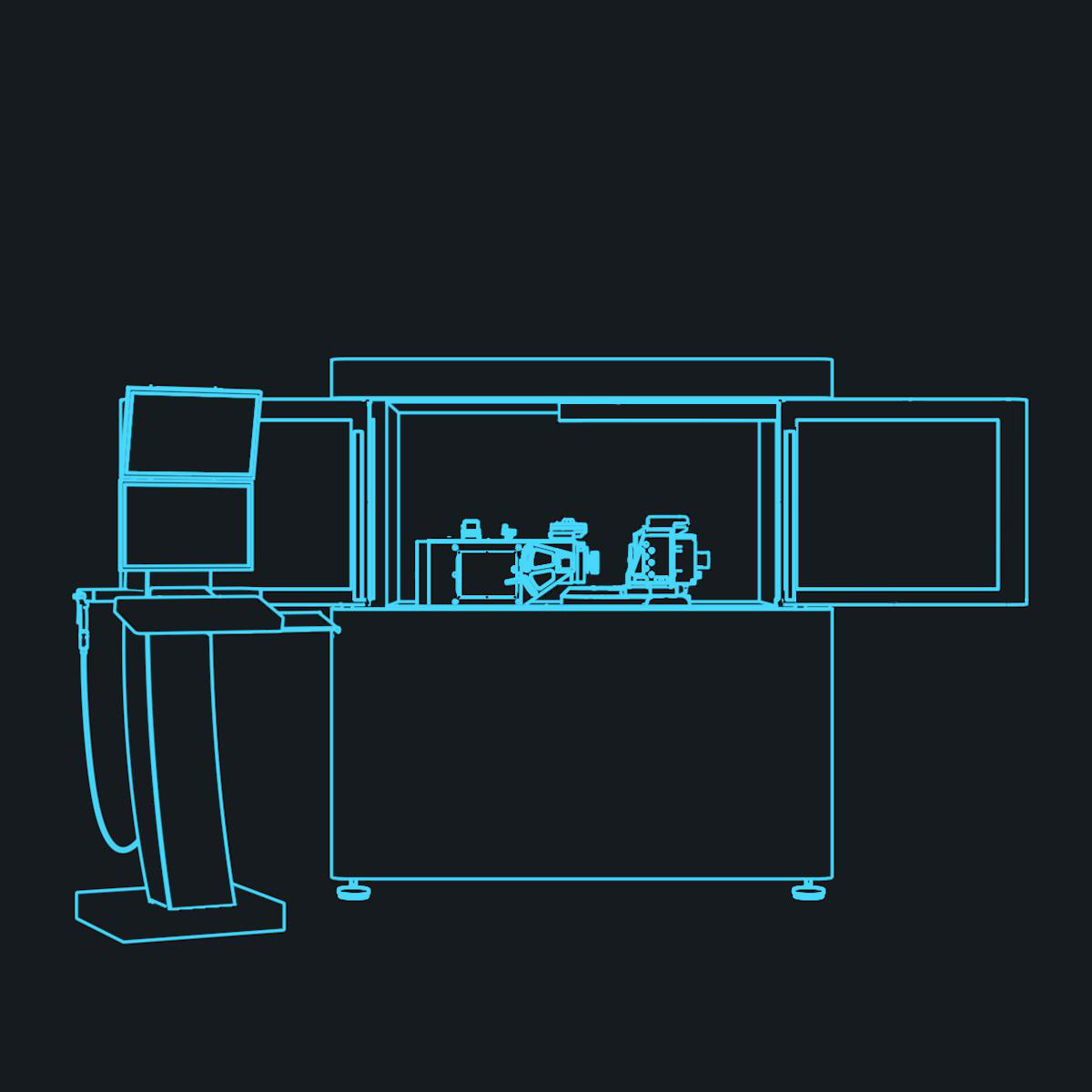

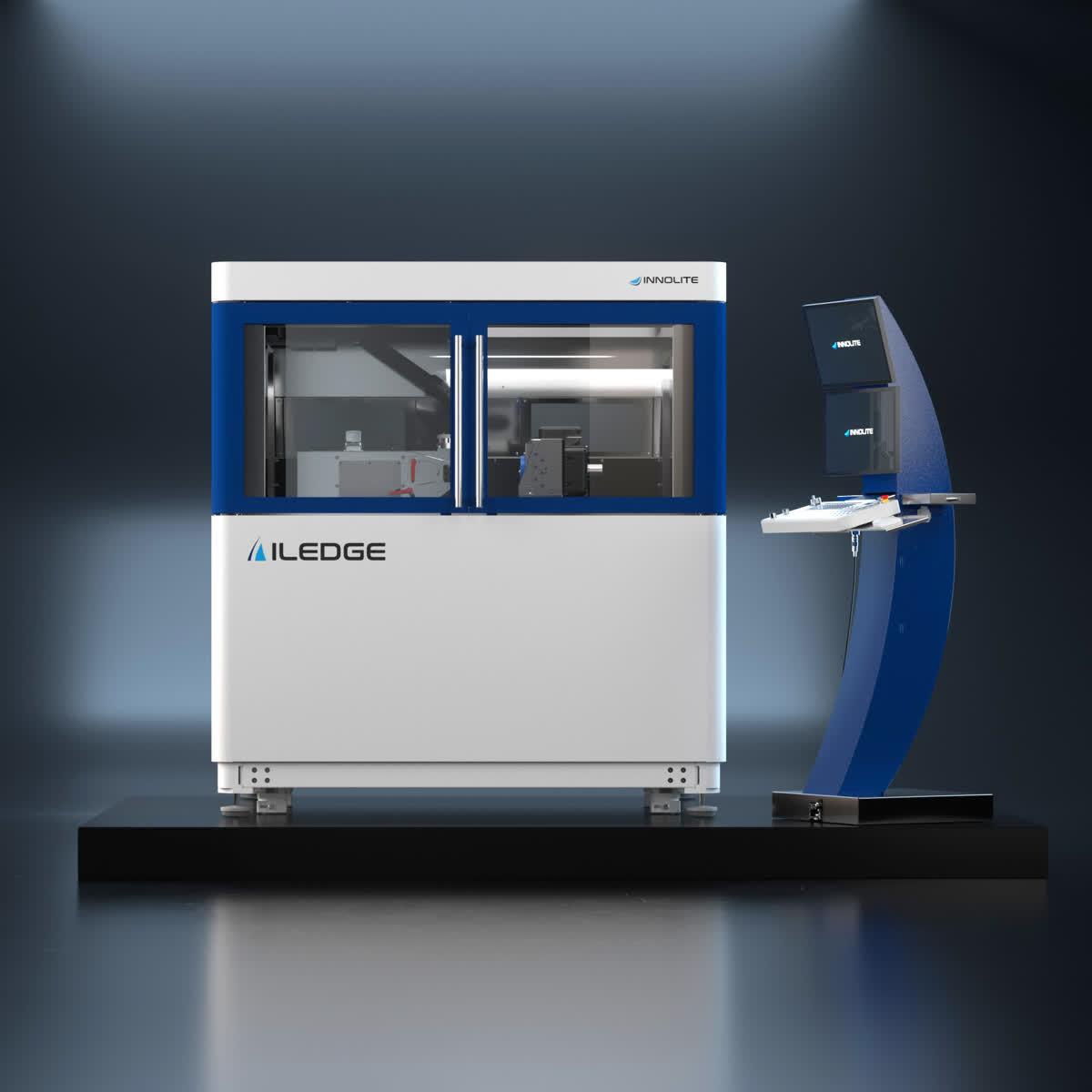

ILEdge
ILEdge is a high-precision optical machining system designed for advanced applications in optical manufacturing. It offers unparalleled accuracy and efficiency for producing complex optical components.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Processing Accuracy | ±0.1μm |
| Maximum Processing Size | 300mm |
| Control System | Advanced CNC |
| Power Requirements | 220V, 50Hz |
| Operating Temperature | 15°C-30°C |
| Operating Humidity | 30%-70% |
| Machine Dimensions | 2000mm x 1500mm x 1800mm |
| Machine Weight | 1500kg |
Applications
Key Features
Datasheet
