Optical Fiber Fusion Splicer
This optical fiber fusion splicer is designed for efficient and precise fiber optic splicing, featuring advanced technology and user-friendly operation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Applicable Fiber | SMF (G.652)/MMF (G.651)/DSF (G.653)/NZDSF (G.655) |
| Fiber Diameter | 包层:80-150μm;涂覆层:0.1-3mm |
| Splicing Loss | 0.02dB(SMF)/0.01dB(MMF)/0.04dB(DSF/NZDSF) |
| Alignment Method | 纤芯, 包层 |
| Focusing Method | 六马达自动聚焦 |
| Splicing Method | 自动/手动 |
| Splicing Time | 8秒 (SMF典型值) |
| Tensile Test | 1.96-2.25N |
| Image Display | 电容式5.5寸触摸液晶屏 |
| Magnification | 300 (X/Y) /150 (X/Y同步) |
| Splicing Records | 1000组 |
| Typical Heating Time | 18S |
| Heating Time | 0-60S |
| Heat Shrink Tube Length | 20mm/30mm/40mm/50mm/60mm |
| Wireless Module Type | 2G/4G |
| Local OPM | 范围(dBm):-70~+3 /波长(nm):850-1625nm /不Confirm度:±0.5% |
| Red Light (VFL) | ≥10mW |
| Operation Interface | GUI图形化用户操作界面 |
| Electrode Life | 3000次 |
| Battery Capacity | 7800mAh (熔接 and 加热240次) |
| Output Voltage | DC 11.1V |
| Charging Input | AC 100-240V, 50/60Hz |
| Charging Output | DC13.5V/4A |
| Charging Time | <3.5小时 |
| USB Output | 5V/500mA |

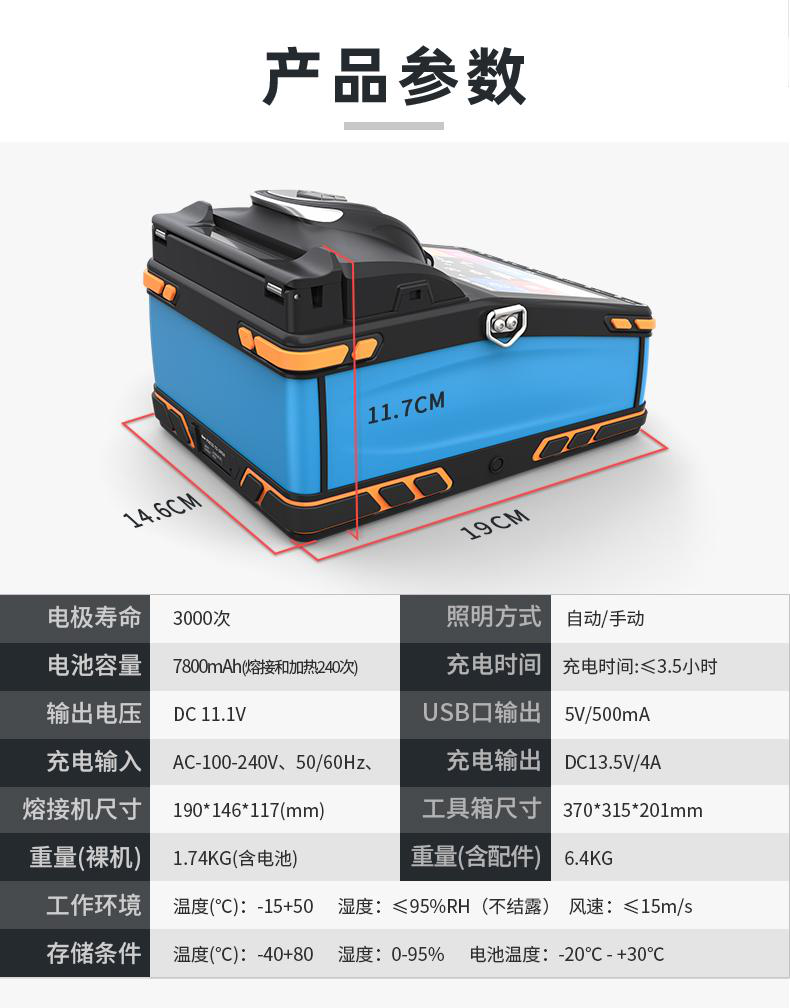

| Splicer Dimensions | 190*146*117(mm) |
| Toolbox Dimensions | 370*315*201mm |
| Weight (Bare Machine) | 1.74KG (含电池) |
| Weight (With Accessories) | 6.4KG |
| Working Environment Temperature | -15+50 |
| Working Environment Humidity | ≤95%RH (不结露) |
| Working Environment Wind Speed | <15m/s |
| Storage Conditions Temperature | -20+80 |
| Storage Conditions Humidity | 0-95% |
| Battery Temperature | -20℃~+30℃ |
