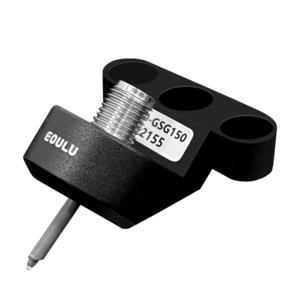

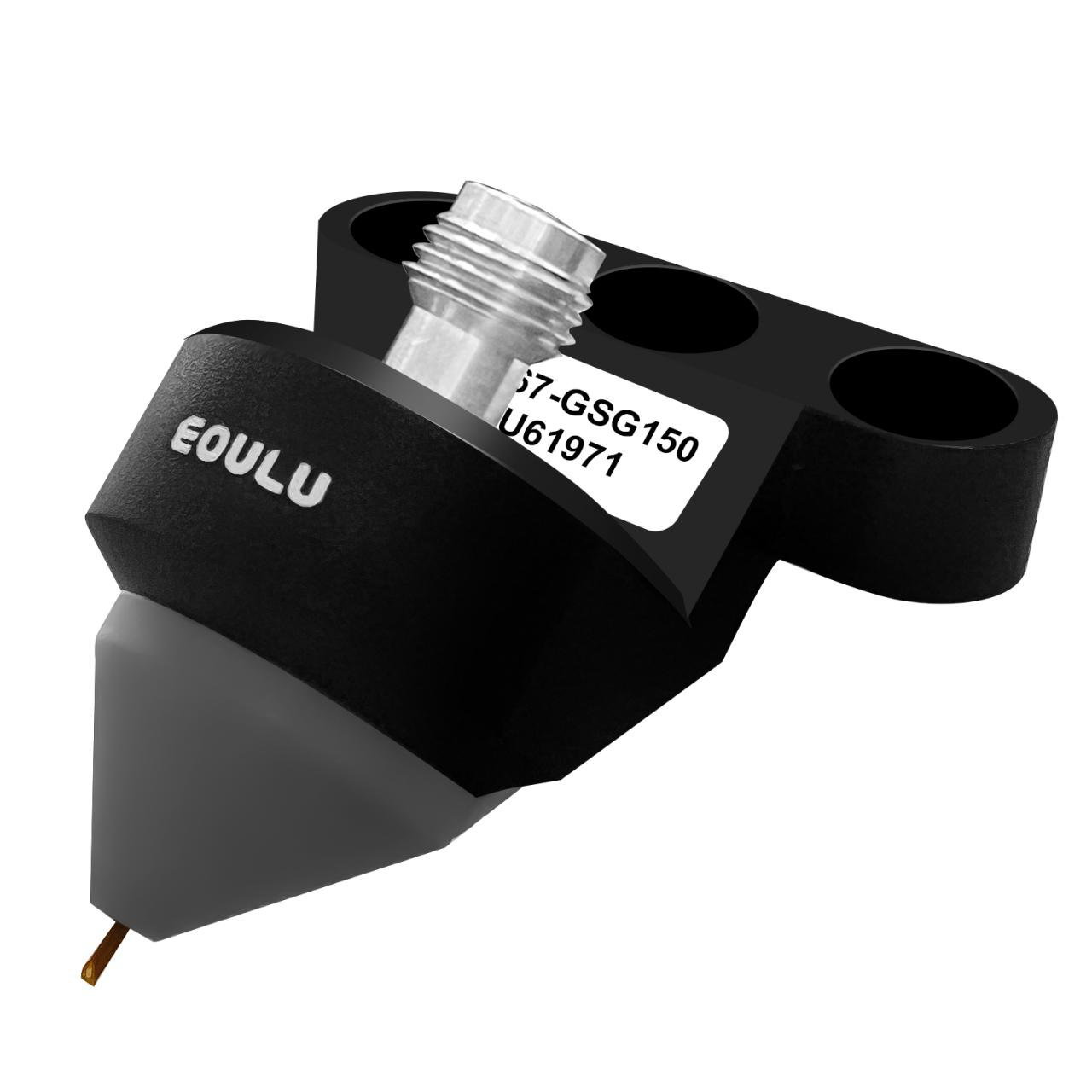

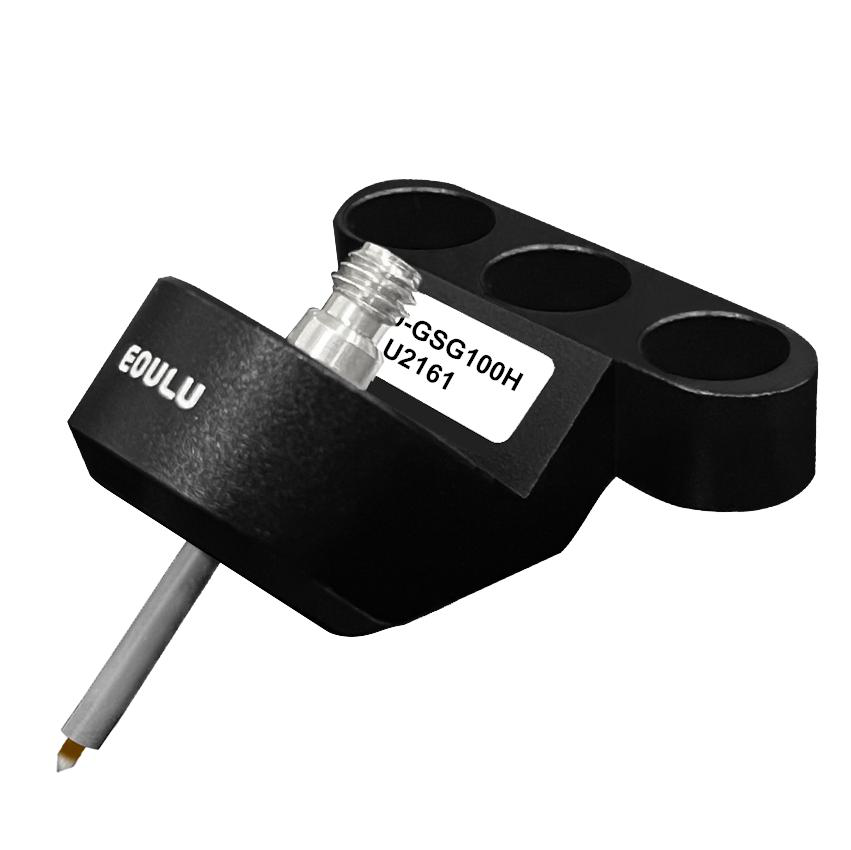

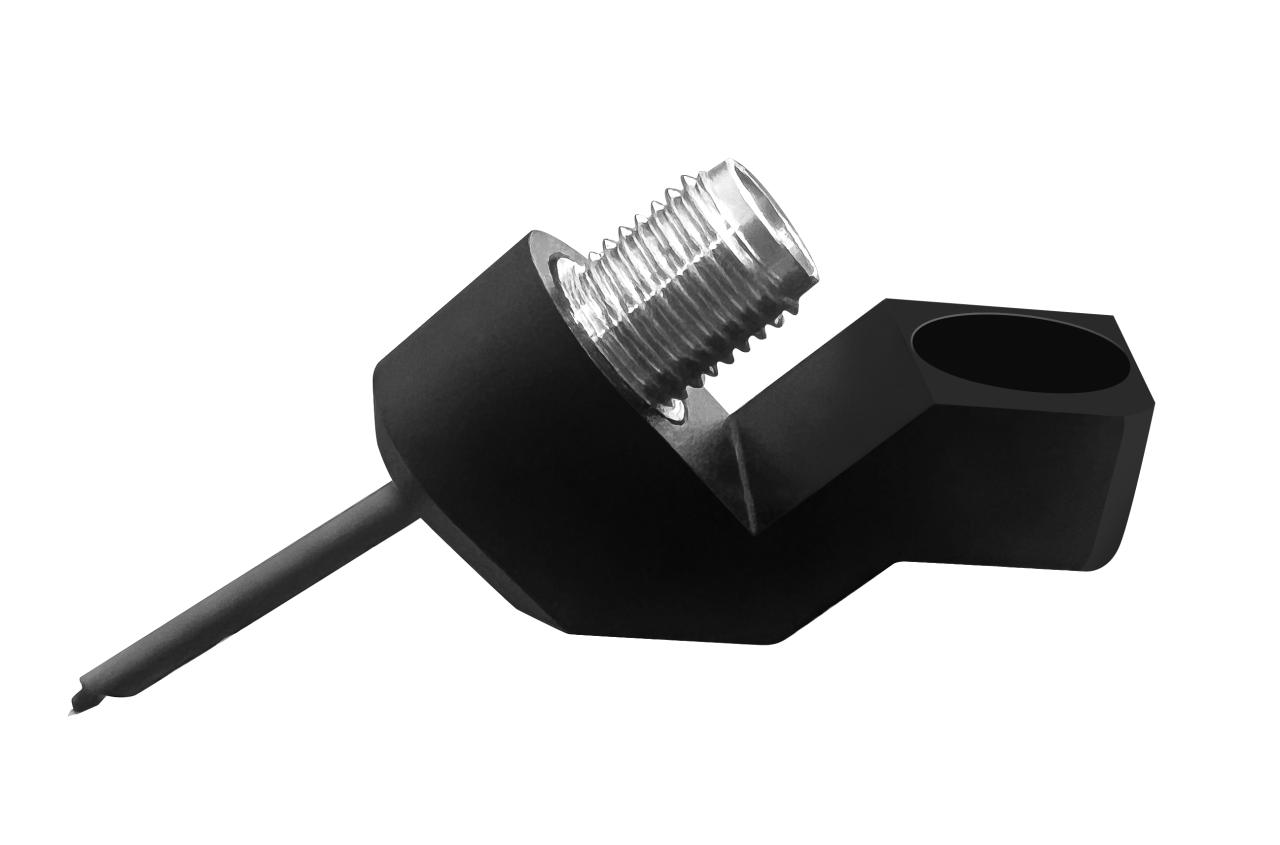

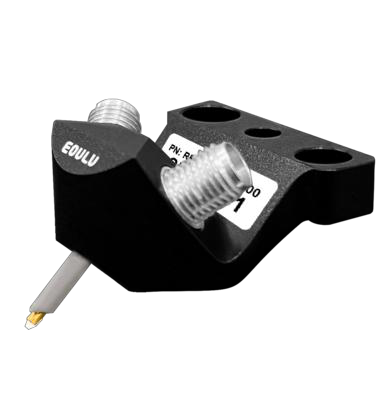

Eoulu Sky Series Probe - RF Probe
Eoulu Sky Series RF Probe is designed for high-frequency signal testing, offering exceptional precision and reliability for various applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Frequency Range | DC~110GHz |
| Insertion Loss | 0.96dB~1.37dB |
| Return Loss | -11.60dB~-19.24dB |
| Characteristic Impedance | 50Ω |
| Contact Resistance | <10mΩ |
| Maximum Current | 2A |
| Maximum DC Voltage | 200V |
| Signal Configuration | GSG |
| Probe Pitch | 50μm~150μm (25μm step) |
| Connector | 1.0mm (female) |
| Tip Material | Gold alloy |
| Durability | ＞1,000,000 |
| Maximum Operating Temperature | 200°C |
| Minimum Pad Size | 30×30μm |

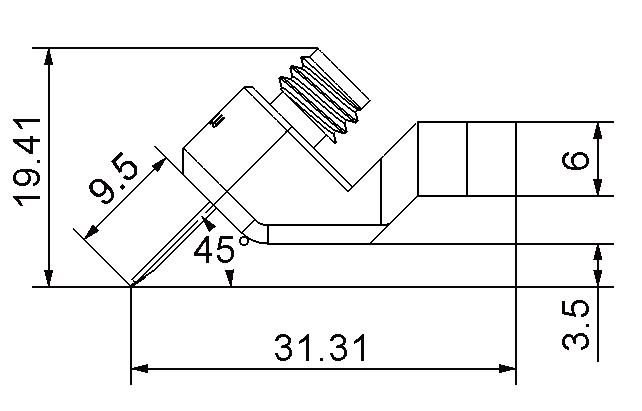

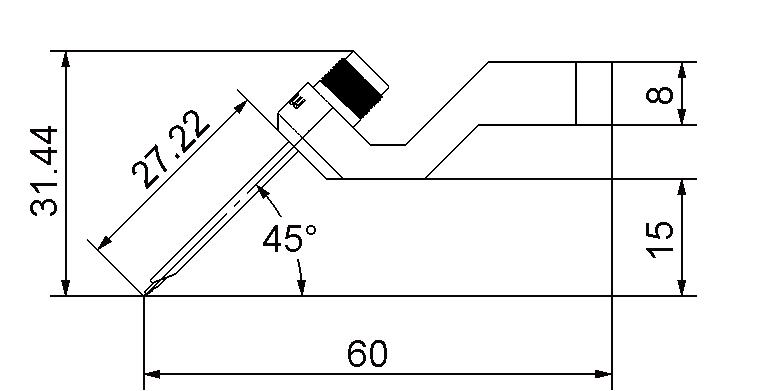

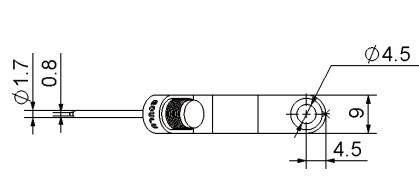

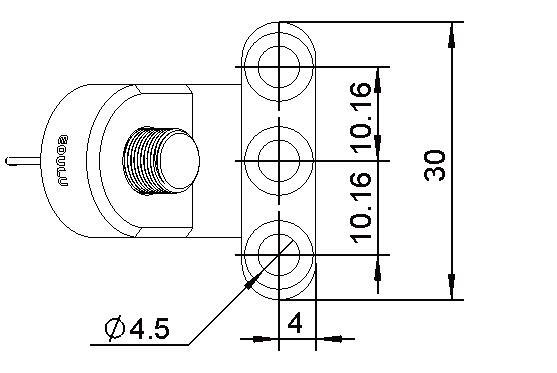

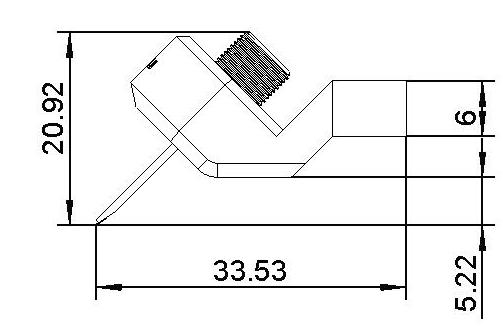

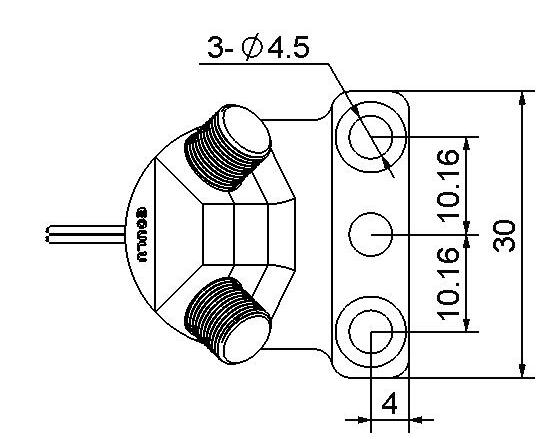

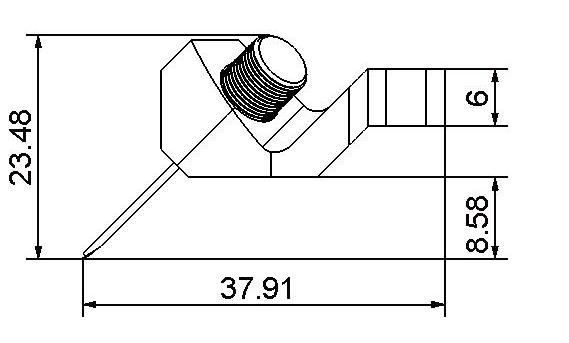

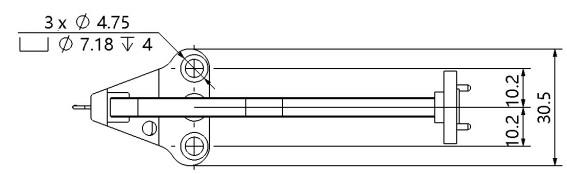

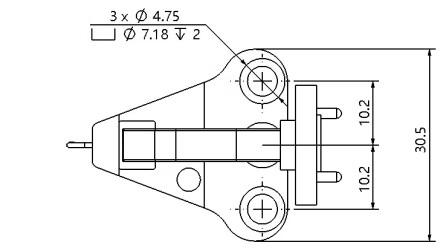

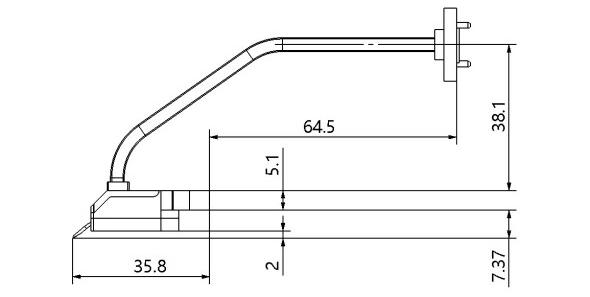

| Probe Dimensions | Standard |

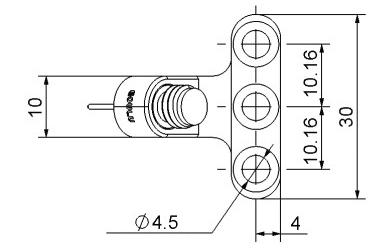

| Probe Dimensions | Mini |
| Probe Dimensions | Slim |
| Compatible Series | C110 Series |
