CDTrans-EDFA

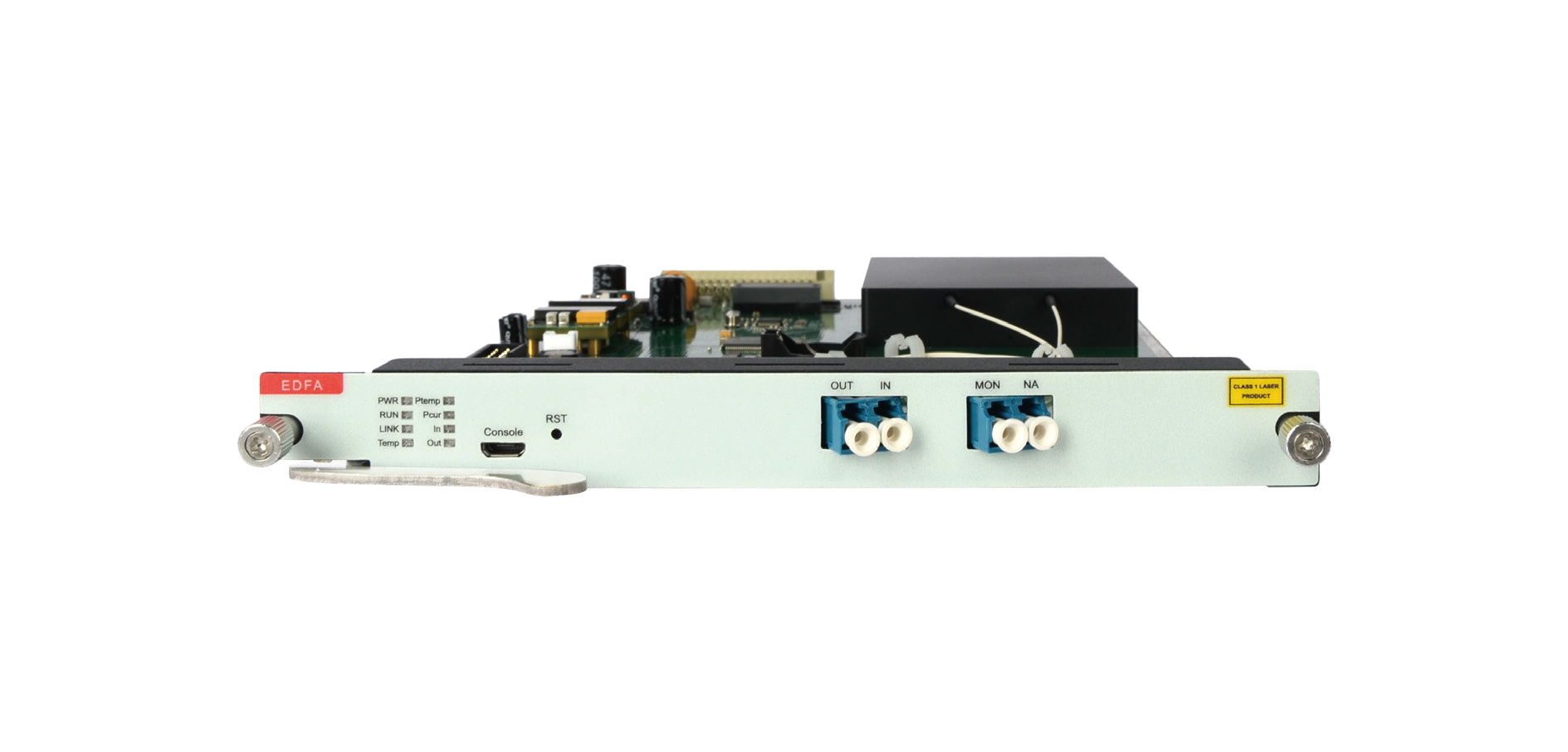

CDTrans-EDFA is a C-Band erbium-doped optical power amplifier with low noise and flat gain. The core device adopts a high-reliability pump laser, unique ATC and AGC circuit control, and professionally designed GFF and matched optical path design, optimizing the flatness and noise of EDFA, thus realizing APC and AGC functions. It is divided into power amplifier, line amplifier, and pre-amplifier.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Model | CDTrans-BA20G22, CDTrans-LA20G22, CDTrans-PA20G32 |
| Amplifier Type | Boost amplifier |
| Amplifier Type | Line amplifier |
| Amplifier Type | Preamplifier |
| Operating Wavelength Range | 1528-1566nm |
| Input Optical Power Range | -23dBm~12dBm, -30dBm~5dBm, -30dBm~5dBm |
| Output Optical Power Range | -4dBm~20dBm, -11dBm~20dBm, -1dBm~20dBm |
| Adjustable Gain Range | 19dB~25dB, 19dB~25dB, 29dB~35dB |
| Gain Flatness | 1.5dB |
| Noise Coefficient | 5.5dB |
| Polarization Dependent Gain | 0.5dB |
| Polarization Mode Dispersion | 0.5ps |
| Input Return Loss | 45dB |
| Output Return Loss | 45dB |
| Control Mode | AGC (default), APC, ACC |
| Port | Input, 1*LC; Output, 1*LC; Monitoring, 1*LC |
| Network Management Function | CLI |
| Network Management Function | WEB |
| Dimension (H*W*D) | 170*22*245mm |
| Working Environment | Working temperature: -10°C~60°C; Storage temperature: -40°C~85°C; Humidity: 5%-90% without condensation |
| Power Consumption | <12W |
