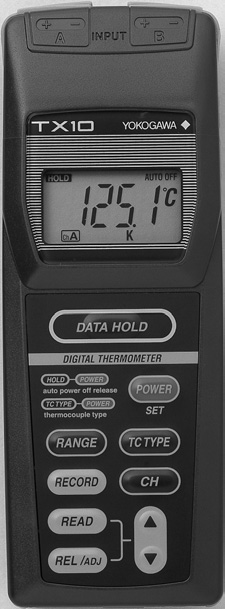

TX10 Series Digital Thermometers
The TX10 Series Digital Thermometers are designed to support K, J, E, and T type thermocouples, offering single-function and multi-function models with 1-channel and 2-channel options.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Number of Input Channels TX1001 | 1 |
| Number of Input Channels TX1002 | 1 |
| Number of Input Channels TX1003 | 2 |
| Measuring Range Type K TX1001 | -200°C to 1372°C |
| Measuring Range Type J TX1001 | -200°C to 1000°C |
| Measuring Range Type K TX1002 | -200°C to 1372°C |
| Measuring Range Type J TX1002 | -200°C to 1000°C |
| Measuring Range Type K TX1003 | -200°C to 1372°C |
| Measuring Range Type J TX1003 | -200°C to 1000°C |
| Resolution TX1001 | -200°C to 199.9°C: 0.1°C; 200°C or above: 1°C |
| Resolution TX1002 | -200°C to 199.9°C: 0.1°C; 200°C or above: 1°C |
| Resolution TX1003 | -200°C to 199.9°C: 0.1°C; 200°C or above: 1°C |
| Accuracy (Instrument) TX1001 | ±0.1% of rdg ±0.6°C (0°C to 50°C); ±0.2% of rdg ±1°C (-200°C to 199.9°C); ±0.2% of rdg ±1°C (200°C or above) |
| Accuracy (Instrument) TX1002 | ±0.1% of rdg ±0.6°C (0°C to 50°C); ±0.2% of rdg ±1°C (-200°C to 199.9°C); ±0.2% of rdg ±1°C (200°C or above) |
| Accuracy (Instrument) TX1003 | ±0.1% of rdg ±0.6°C (0°C to 50°C); ±0.2% of rdg ±1°C (-200°C to 199.9°C); ±0.2% of rdg ±1°C (200°C or above) |
| Temperature Coefficient | ±(0.015% of rdg + 0.06°C)/°C (18°C to 28°C and 28°C to 50°C) |
| Measurement Interval TX1001 | Approx. 1 sec |
| Measurement Interval TX1002 | Approx. 1 sec |
| Measurement Interval TX1003 | Approx. 1 sec (1 sec for 2-channel measurement) |
| Data Storage TX1001 | None |
| Data Storage TX1002 | Capable of storing up to 10 measured data items |
| Data Storage TX1003 | Capable of storing up to 10 measured data items |
| Simplified Correction TX1001 | None |
| Simplified Correction TX1002 | Correction range: ±20°C of measured value |
| Simplified Correction TX1003 | Correction range: ±20°C of measured value |
| Display Items TX1001 | HOLD, °C, ch A, TC type K, J, E, T, Battery alarm |
| Display Items TX1002 | HOLD, RCD, REL, ADJ, MAX, MIN, MEM, °C, cha, TC type K, J, E, T, Battery alarm |
| Display Items TX1003 | HOLD, RCD, REL, ADJ, MAX, MIN, MEM, °C, cha, chB, cha+chB, TC type K, J, E, T, Battery alarm |
| Other Functions | Auto power-off, battery alarm |
| Display | LCD |
| Operating Temperature and Humidity | 0°C to 50°C; 20% to 80% RH (no condensation) |
| Power Requirements | Two AA-size alkaline dry batteries (LR6) |
| Battery Life | About 450 hours |
| Drip-proof Construction | Conforms to IP54 (dust-proof and drip-proof requirements of IEC529) |
| Compliance with Standards | EMI (interference signal): EN55011:1998, EN61326-1:1998+A1 (Class B, Group 1); EMS (immunity): EN50082-1:1997, EN61326:1998+A1 |
| External Dimensions | Approx. 151(H)×56(W)×33(D)mm (excluding protrusions) |
| Weight | Approx. 180g (including batteries) |
| Supplied Accessories | Two AA-size alkaline dry batteries (LR6) and instruction manual |
| Optional Accessories | Temperature probes (for K type thermocouple): Rounded probe (90020B, 90021B, 90022B), Needle probe (90023B), Surface probe (90030B, 90031B, 90032B), Bead TC (90029B); Extension cable (5m: 245922/10m: 245922); Soft case (93012) |
