701946 Miniature Passive Probe

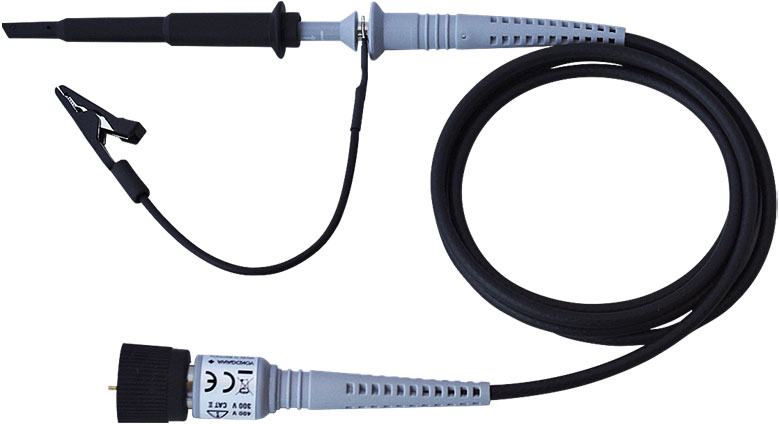

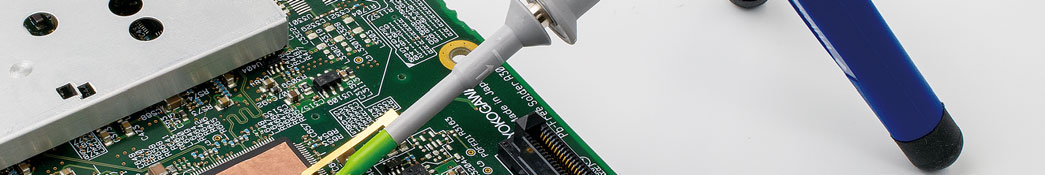

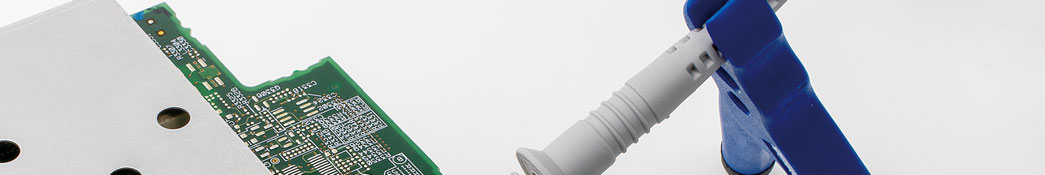

The 701946 Miniature Passive Probe is designed for high-density IC and PCB measurements, offering compact design, interchangeable probe tips, and hands-free multi-channel measurement capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Compatible Model | DLM2000/4000/6000, DL6000 |
| System Bandwidth | 500MHz (-3dB) |
| Connector Type | BNC (with the probe ID pin) |
| Input Resistance/Capacitance | 10MΩ±1% / 9.5pF (Typical) |
| Maximum Input Voltage | 400Vrms |
| Operating Temperature Range | 0°C to 50°C |
| Probe Length | Approximately 1.2m |
| Attenuation Ratio | 1:1 ±2% @DC |

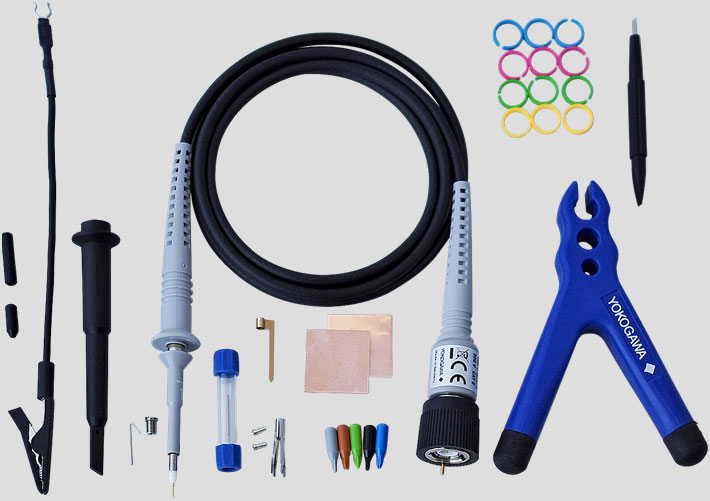

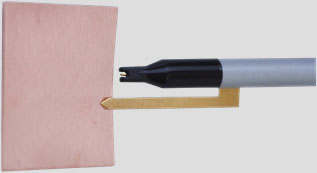

| Standard Accessories | Spring tip, Rigid tip, Pincher tip, IC cap (Five types), Insulation cap, Protection cap, Ground lead, Ground spring, Ground blade, Cu pad (2 sheets), PCB adapter kit, Marker tips (4 colors x 3), Adjustment screwdriver, Two-footer probe positioner, Manuals |
