AQ2200 Series

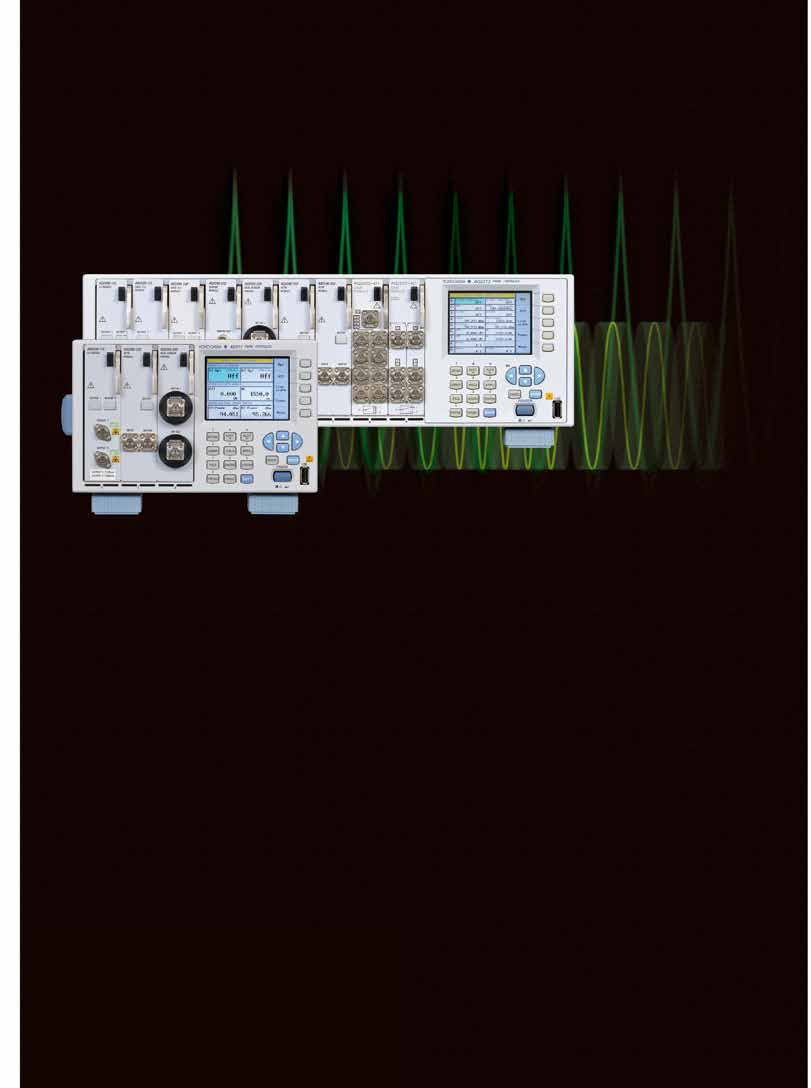

The AQ2200 Series is a versatile measurement system designed for evaluating optical devices and transmission systems. It offers a variety of measurement modules, including light sources, optical power meters, optical attenuators, and optical switches.
Save to Favorites
Overview
Specifications

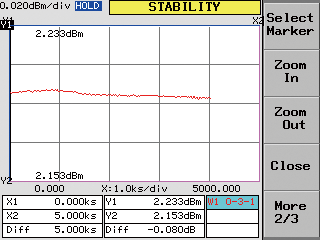

| Parameter | Value |
|---|---|
| Insertion Loss (dB) 1x2 | ≤4.0 |
| Insertion Loss (dB) 1x4 | ≤7.4 |
| Insertion Loss (dB) 1x8 | ≤11.4 |
| Insertion Loss (dB) 1x16 | ≤15.4 |
| Uniformity (dB) 1x2 | ≤0.6 |
| Uniformity (dB) 1x4 | ≤1.0 |
| Uniformity (dB) 1x8 | ≤1.5 |
| Uniformity (dB) 1x16 | ≤2.0 |
| Optical Isolation (dB) | ≥55 |
| Fiber Type | SMF(ITU-T G.652), MMF(50/125μm, 62.5/125μm) |
| Optical Power Range | -90 to +15dBm |
| Wavelength Range | 800-1700nm |
| Power Uncertainty | ±2.5% |
| Response Time | 100μs |
| Source Wavelength | 1310nm, 1550nm, 1625nm, 1650nm |
| Source Power | ≥+10dBm |
| Source Stability | ±0.005dB |
| Source SMSR | ≥35dB |
| Source Modulation Frequency | 10MHz |
| Source Insertion Loss | ≤0.005dB |
| Source Return Loss | ≥35dB |
| Source Applicable Fiber | SMF(ITU-T G.652), FC/APC |
| Switch Repeatability | ±0.01dB |
| Switch Insertion Loss | ≤1.0dB |
| Switch Optical Isolation | ≥55dB |
| Switch Applicable Fiber | SMF(ITU-T G.652), MMF(50/125μm, 62.5/125μm) |
| Attenuator Insertion Loss | ≤1.0dB |
| Attenuator Range | 0-60dB |
| Attenuator Power Range | 1200-1700nm |
| Attenuator Power Uncertainty | ±0.1dB |
| Attenuator Applicable Fiber | SMF(ITU-T G.652), MMF(50/125μm, 62.5/125μm) |
| Receiver Wavelength Range | 850nm-1310nm |
| Receiver Power Range | -90 to +10dBm |
| Receiver Applicable Fiber | SMF(ITU-T G.652), MMF(50/125μm, 62.5/125μm) |
Applications
Key Features
Datasheet
