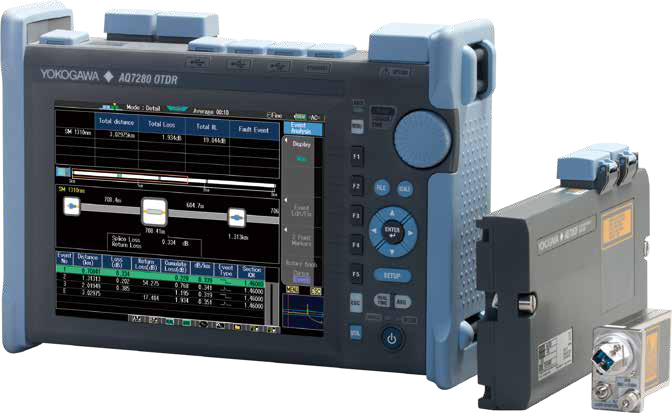

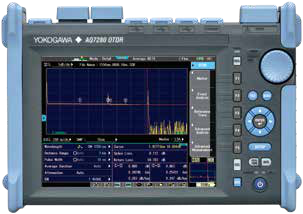

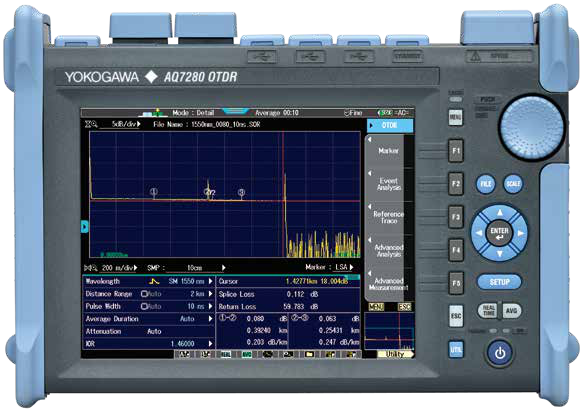

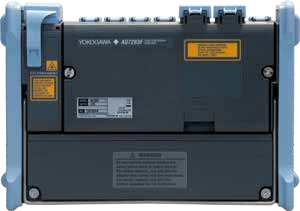

AQ7280 OTDR
The AQ7280 OTDR is a modular optical time-domain reflectometer designed for field testing and maintenance of optical fiber networks. It features advanced functionalities, a large-capacity battery, and a user-friendly large screen to ensure measurement quality and improve work efficiency.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Display Screen | 8.4英寸彩色TFT LCD，分辨率800×600，multiple点触控电容式触摸屏 |

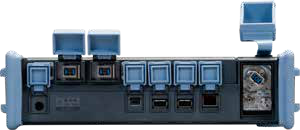

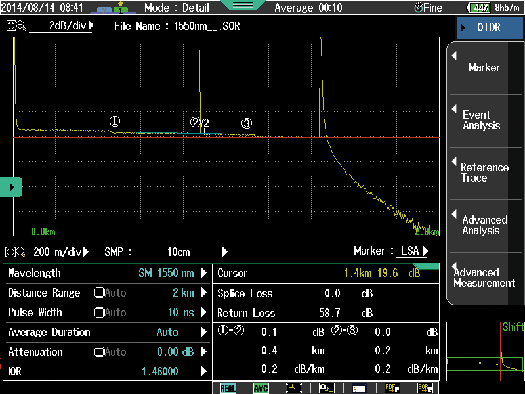

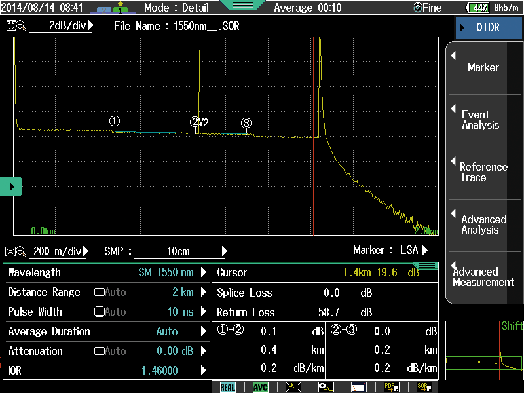

| Electrical Interface | 1×1，1×2，USB2.0×3(TypeA×2，TypeB(Mini-B)×1)，以太网(10/100BASE-T)，SD卡槽×1 |
| Data Storage | 存储格式：SOR、CSV、SET、BMP、JPG、PDF、SMP；存储介质：USB存储器、SD卡存储 |
| External Dimensions | 287mm(W)×210mm(H)×80mm(D) |
| Weight | 2.2kg(不包括选配模块 and 电池) |
| OTDR Function-Minimum Sampling Resolution | 2cm |

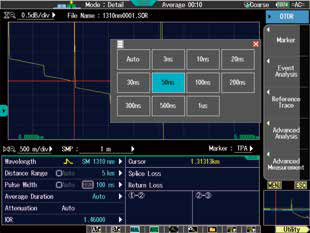

| OTDR Function-Pulse Width Range | 3,10,20,30,50,100,200,300,500,1000,2000,5000,10000,20000ns |
| OTDR Function-Distance Range | 0.2,0.5,1,2,5,10,20,30,50,100,200,300,500,1000,2000,5000,10000,20000m |
| OTDR Function-Distance Resolution | 0.5m |
| OTDR Function-Distance Accuracy | ±(0.75m+测量距离×2×10^-5+采样分辨率) |
| OTDR Function-Reflectance Resolution | ±2dB |
| OTDR Function-Dynamic Range | 38/42/40/46/45dB |
| OTDR Function-Event Dead Zone | 1m |
| OTDR Function-Attenuation Dead Zone | 4m |
| OTDR Function-Analysis | multiple曲线分析、双向曲线分析、差异曲线分析、链路分析 |
| Environmental Conditions-Operating Temperature | -10~50°C(使用AC适配器时-40~50°C；电池充电时0~35°C) |
| Environmental Conditions-Storage Temperature | -20~60°C |
| Environmental Conditions-Humidity | 相对湿度RH20~90%，符合TelcordiaGR-196-COREIssue22010 |
| Battery Operating Time | 15小时 |
| Battery Type | 锂电池 |
| Battery Charging Time | 10小时 |
| Power Requirements | 100~240VAC，50/60Hz(AC适配器) |
| Laser Wavelength | 1310±25/1550±25/1625±10nm |
| Optical Output Power | ≤-5dBm |
| Fiber Type | SM(ITU-TG.652) |
| Fiber Connector | 通用适配器SC、FC、LC、SCAPC |

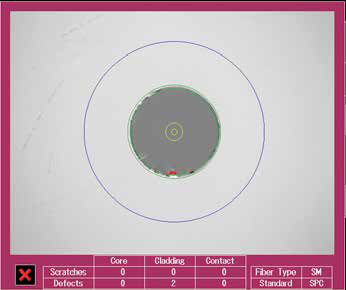

| Fiber End-Face Detector | 支持 |
| Optical Power Meter | 支持 |
| Visible Light Source | 支持 |
| Power Checker | 支持 |
| Touch Screen | 支持 |
| Multi-Language Support | 支持 |
| File Transfer and Remote Control | 支持 |
| PDF Report Generation | 支持 |
| Fault Locator | 支持 |
| Smart Mapper Function | 支持 |
