AQ7280 OTDR

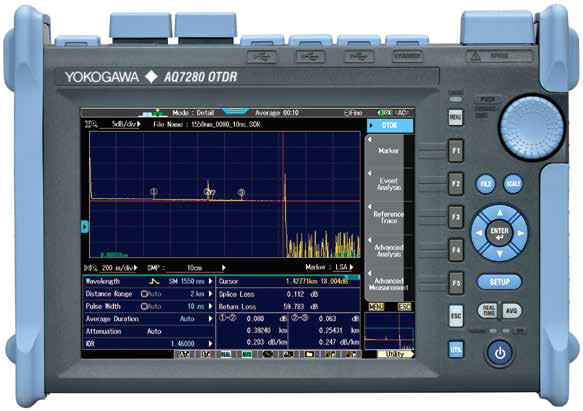

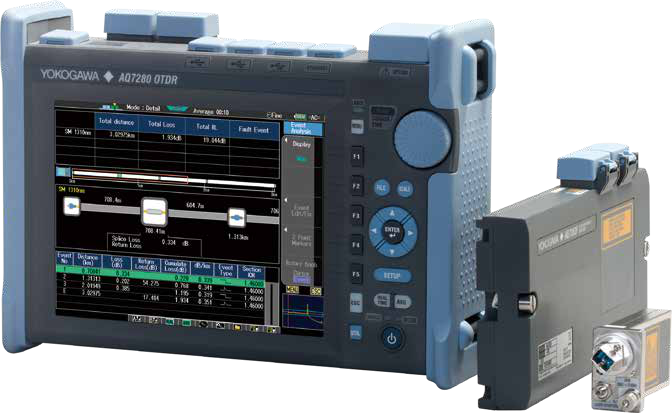

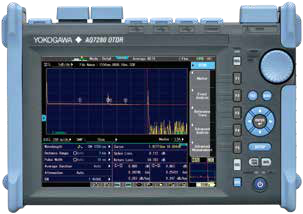

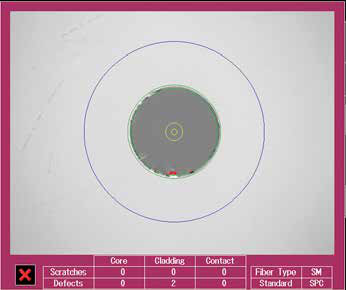

The AQ7280 OTDR is a modular optical time domain reflectometer designed for field testing and maintenance of optical networks. It features advanced functionalities, a large-capacity battery, and a user-friendly large screen to ensure measurement quality and improve work efficiency.
Save to Favorites
Overview
Specifications

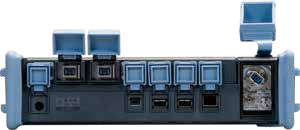

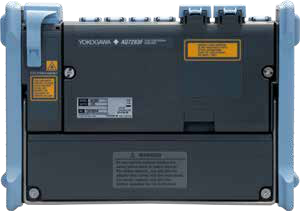

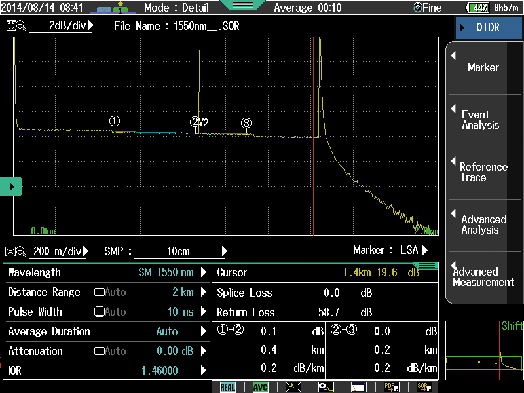

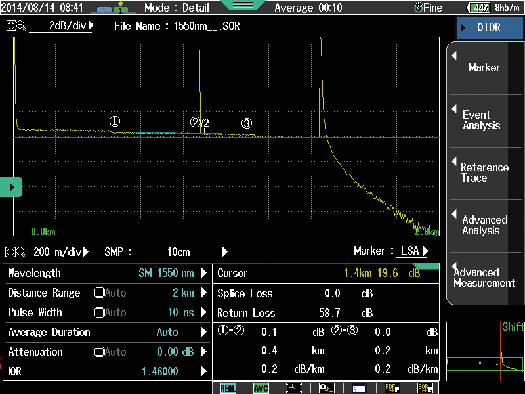

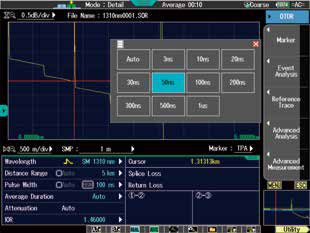

| Parameter | Value |
|---|---|
| Display Screen | 8.4英寸TFT LCD分辨率800×600,multiple点触控电容式触摸屏 |
| Electrical Interface | 模块接口×1,模块接口×1,USB2.0×3(TypeA×2,TypeB(Mini-B)×1),以太网×1(10/100BASE-T),读卡器×1,SD卡插槽×1 |
| Data Storage | 存储格式:1000 complete plans波形,存储介质:内置存储器,USB存储器,SD存储卡 |
| External Dimensions | 529mm(W)×210mm(H)×80mm(D)(不包括凸起部分) |
| Weight | 约2.2kg(不包括模块 and 电池) |
| OTDR Functions | 最小采样分辨率:2cm,脉宽范围:3,10,20,30,50,100,200,300,500,1000,2000,5000,10000,20000ns,量程范围:0.2,0.5,1,2,5,10,20,30,50,100,200,300,500,1000,2000,5000,10000,20000km,事 Items盲区:0.6m,衰减盲区:3.5/4m,动态范围:38/36/36/42/40/39/46/45dB |
| Environmental Conditions | 工作温度:-10~50°C(使用AC适配器时),-40~70°C(电池充电时),0~35°C |
| Battery | 类型:锂电池,工作时间:15小时(TelcordiaGR-196-COREIssue22010),10小时(连续测量) |
| EMC | 辐射标准:EN61326:ClassA,EN55011:ClassAGroup1,抗扰度:EN61326:Table2 |
| Safety Standards | EN61010-1 |
| Laser | IEC60825-1:2007,GB7247.1-2012Class1M,IEC60825-1:2007,GB7247.1-2012Class3R |
