AQ7290 Series OTDR

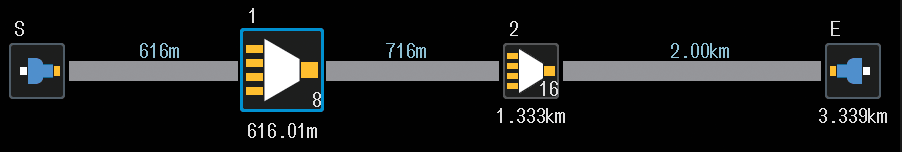

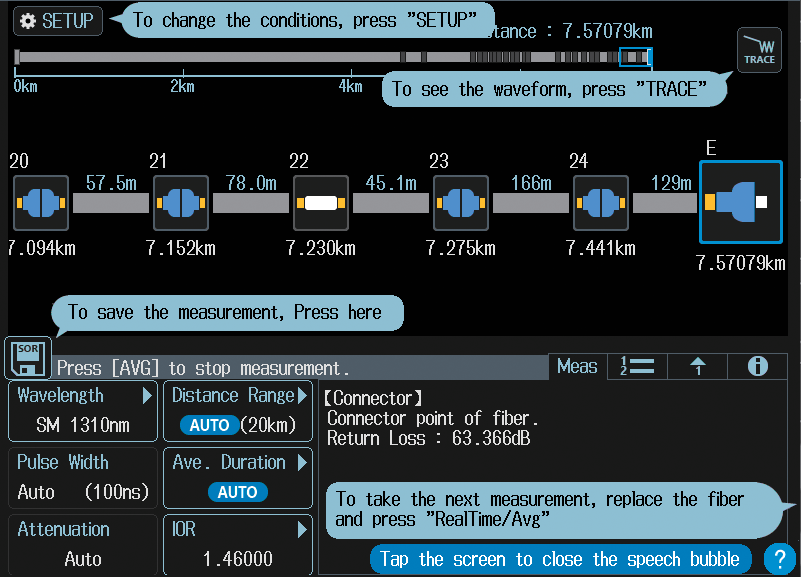

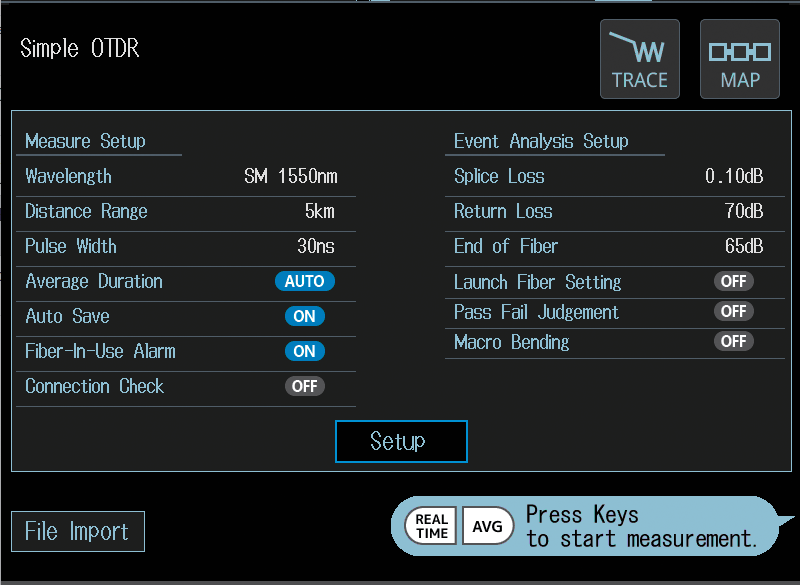

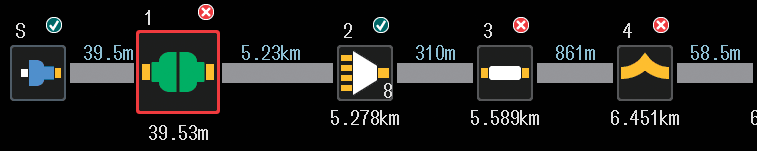

The AQ7290 Series OTDR is a high-performance optical time-domain reflectometer designed for fiber optic installation and maintenance. It features advanced functionalities, user-friendly design, and reliable measurement capabilities.
Save to Favorites
Overview
Specifications

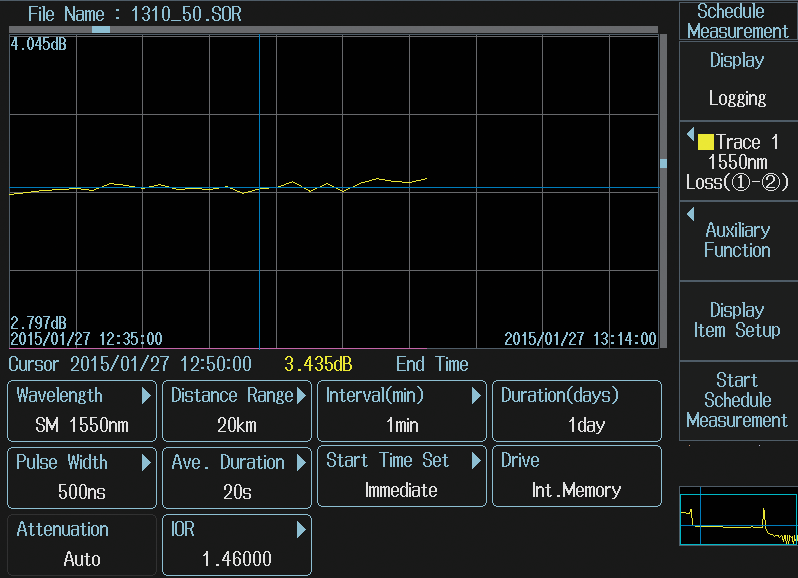

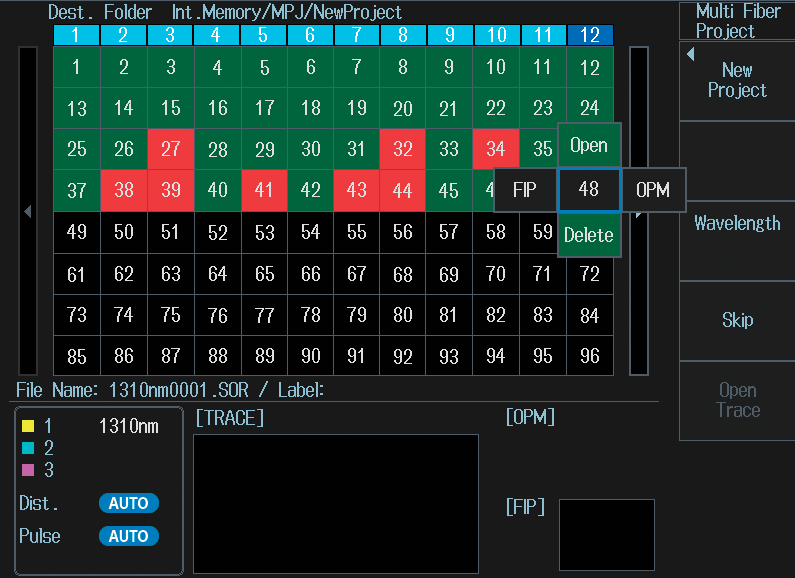

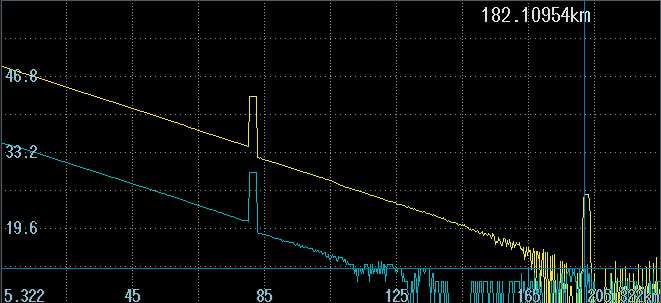

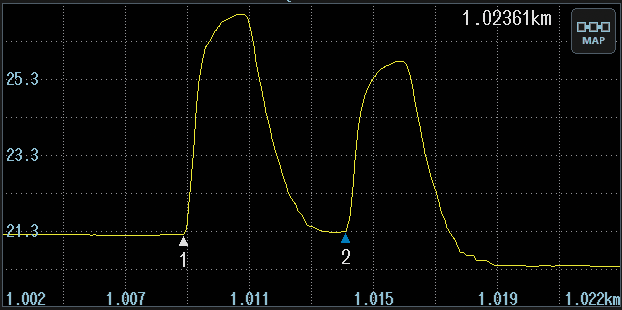

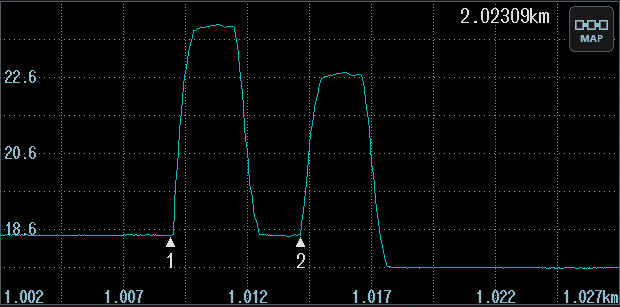

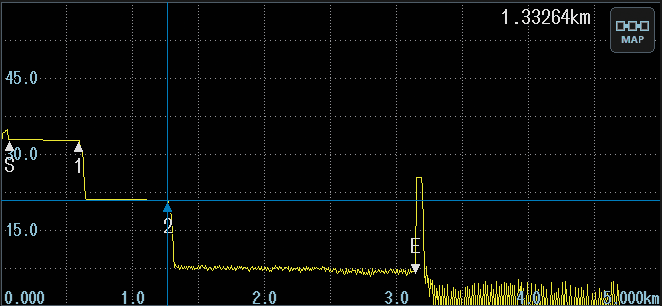

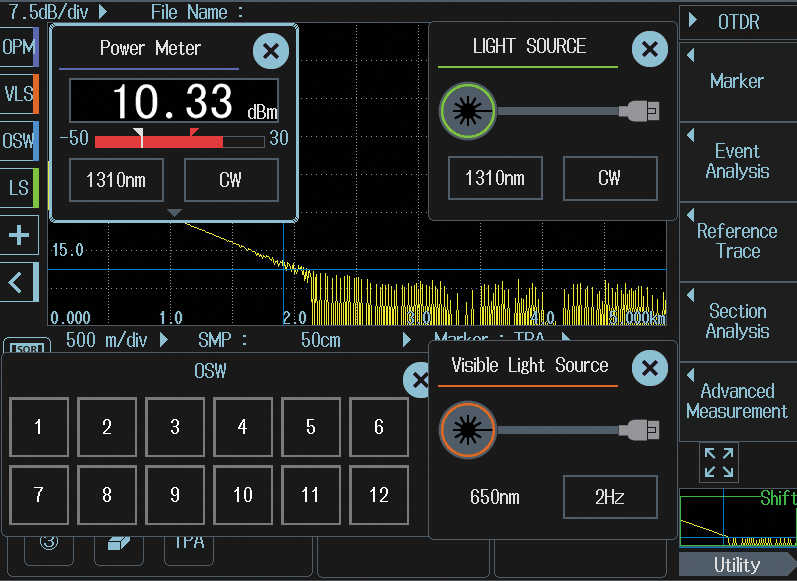

| Parameter | Value |
|---|---|
| Display Screen | 8.4-inch TFT LCD, 800x600 resolution |
| Electrical Interface | USB2.0 Type-C, Type-A, microSD |
| Remote Control Interface | USB2.0 Type-C, Wi-Fi |
| Data Storage | Internal: 1GB, up to 60000 waveforms; External: microSD card, up to 2TB |
| File Format | SOR |
| File Format | CSV |
| File Format | SET |
| File Format | SMP |
| File Format | BMP |
| File Format | JPG |
| File Format | |
| External Dimensions | 287mm x 210mm x 80mm |
| Weight | 2.6kg (including battery) |
| Minimum Sampling Resolution | 1cm |
| Distance Range | 0.1-512km |
| Distance Resolution | 0.75m |
| Event Dead Zone | ≤0.75m |
| Attenuation Dead Zone | ≤3.5m |
| Dynamic Range | 39/37dB, 43/42dB, 47/47dB, 43/42/40dB, 43/42dB, 47/47/45dB |
| Fiber Connector | SC |
| Fiber Connector | FC |
| Fiber Connector | SC APC |
| Sampling Resolution | 2cm |
| Maximum Fiber Data Points | 256000 |
| Stable Light Source Wavelength | 1310±20nm, 1550±20nm, 1625±20nm, 1650±20nm |
| Optical Output Power | ≤+15dBm (1650nm) |
| Optical Output Power Stability | ±0.05dB |
| Modulation Mode | CW, 270Hz, 1kHz, 2kHz |
| Laser Class | Class 1 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | <95% (non-condensing) |
| Altitude | 4000m |
| Battery Type | Lithium-ion |
| Battery Operating Time | 6 hours |
| Power Input | USB Type-C, DC 15V±5%, max 3A |
| Power Meter Wavelength Range | 800-1700nm |
| Power Meter Power Range | CW: +10~-70dBm, CHOP: +7~-70dBm |
| High Power Meter Power Range | CW: +27~-50dBm, CHOP: +24~-50dBm |
| Visible Light Source Wavelength | 650±20nm |
| Visible Light Source Output Power | >-3dBm |
| Fiber End Face Inspection Function | IEC 61300-3-35 compliant |
| Fiber End Face Inspection Wavelength | 1310-1600nm |
