AQ7290 Series OTDR

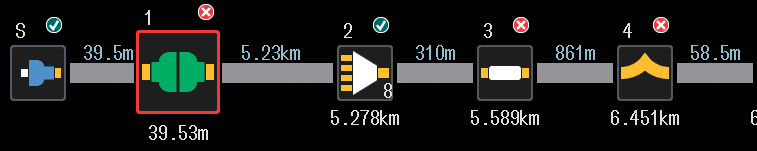

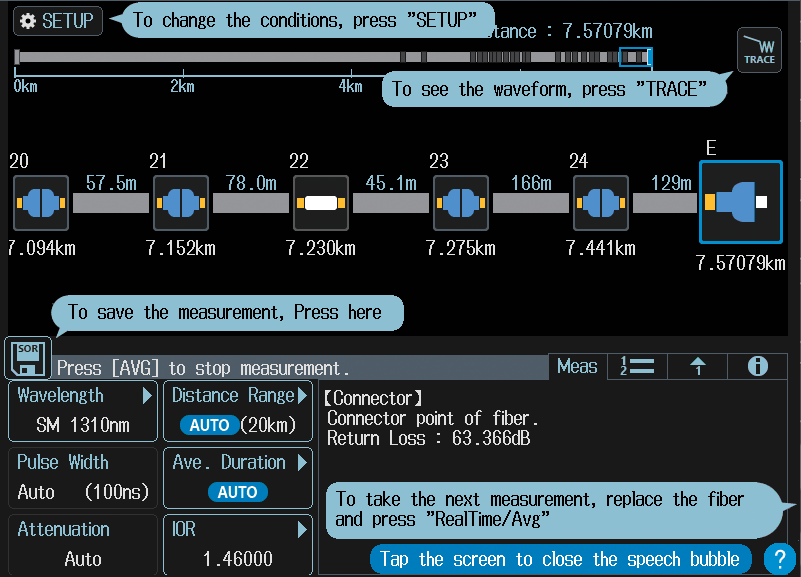

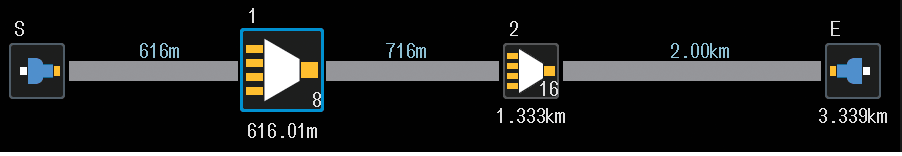

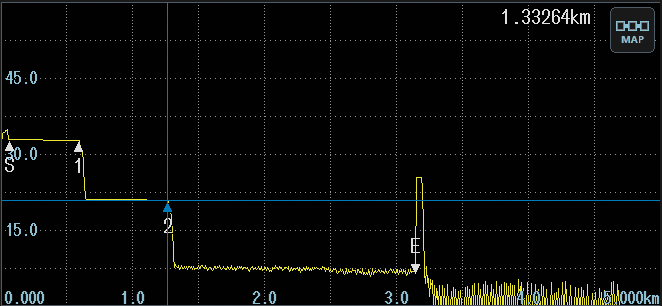

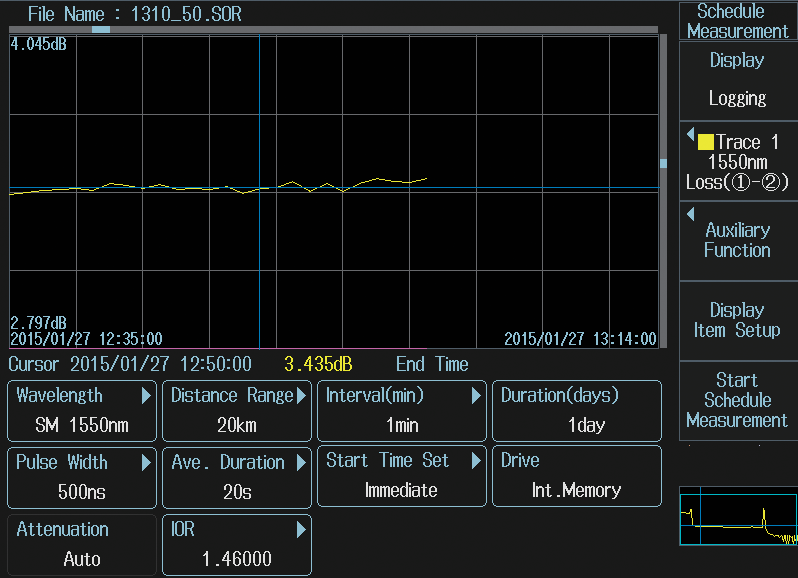

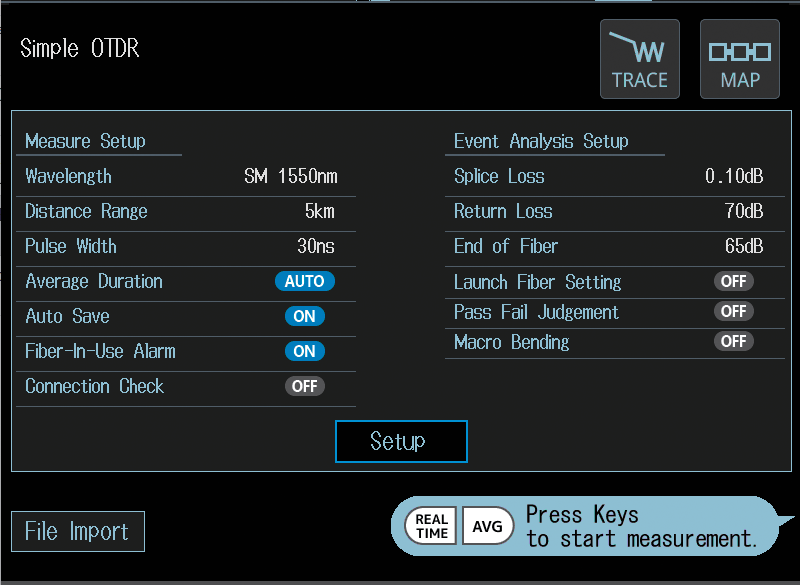

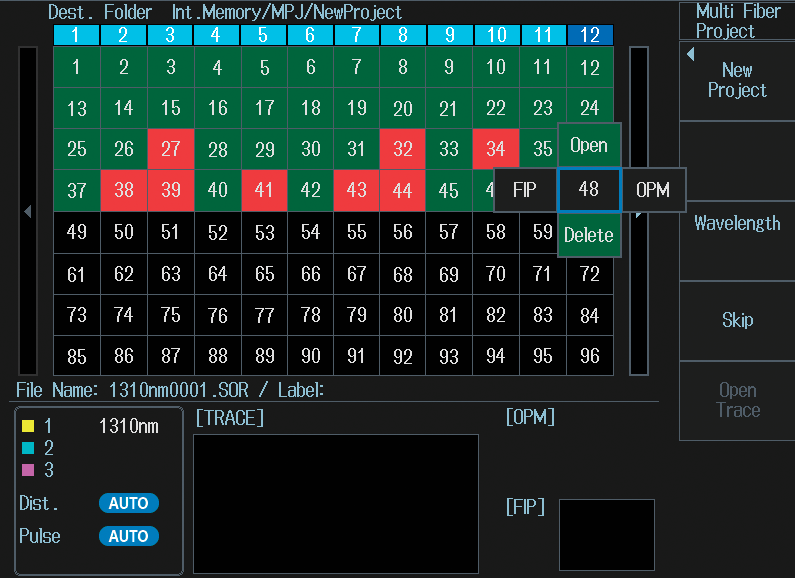

The AQ7290 Series OTDR is a high-performance optical time-domain reflectometer designed for fiber optic network installation and maintenance. It offers advanced features such as Smart Mapper, multi-tasking capabilities, and remote control, ensuring efficient and accurate measurements.
Save to Favorites
Overview
Specifications

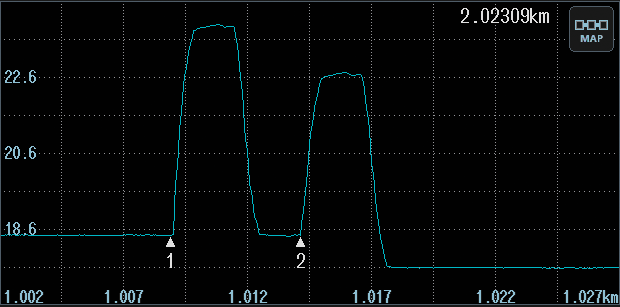

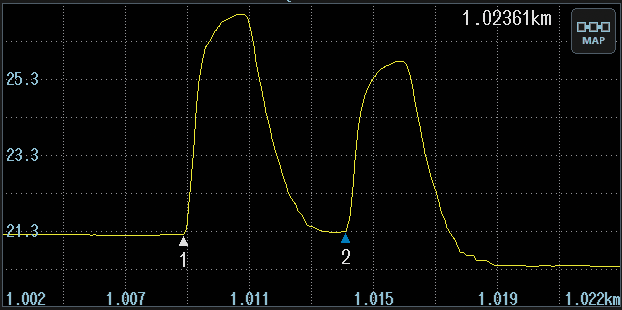

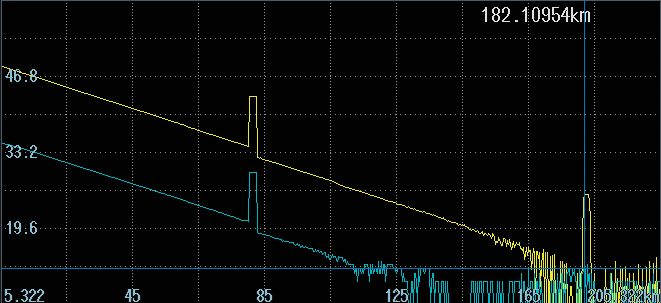

| Parameter | Value |
|---|---|
| Display | 8.4-inch TFT LCD, 800x600 resolution |
| Electrical Interface | USB2.0 Type-C, USB2.0 Type-A, microSD |
| Remote Control Interface | USB2.0 Type-C, Wi-Fi |
| Data Storage | Internal memory: 1GB, up to 60000 traces; External memory: microSD card, up to 2TB |
| File Format | SOR |
| File Format | CSV |
| File Format | SET |
| File Format | SMP |
| File Format | BMP |
| File Format | JPG |
| File Format | |
| Dimensions | 287mm x 210mm x 80mm |
| Weight | 2.6kg (including battery) |
| Minimum Sampling Resolution | 1cm |
| Distance Range | 0.1-512km |
| Distance Resolution | 0.75m |
| Dynamic Range | 39/37dB (AQ7292A), 43/42dB (AQ7293A), 47/47dB (AQ7294A), 43/42/40dB (AQ7293F), 43/42/40dB (AQ7293H), 47/47/45dB (AQ7294H) |
| Fiber Connector | SC |
| Fiber Connector | FC |
| Fiber Connector | SC APC |
| Sampling Resolution | 2cm |
| Maximum Fiber Measurement Points | 256000 |
| Stable Light Source Wavelength | 1310±20nm, 1550±20nm, 1625±20nm, 1650±20nm |
| Optical Output Power | ≤+15dBm (1650nm) |
| Optical Output Power Stability | ±0.05dB |
| Modulation Mode | CW, 270Hz, 1kHz, 2kHz |
| Laser Class | Class 1 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | <95% (non-condensing) |
| Altitude | 4000m |
| Battery Type | Lithium-ion |
| Battery Operating Time | 6 hours |
| Battery Charging Time | ≤3 hours |
| EMC Standards | EN61326-1 Class A, EN55011 Class A Group 1 |
| Safety Standards | EN61010-1, EN60825-1:2014+A11:2021, FDA 21 CFR 1040.10, IEC60825-1:2014-1 |

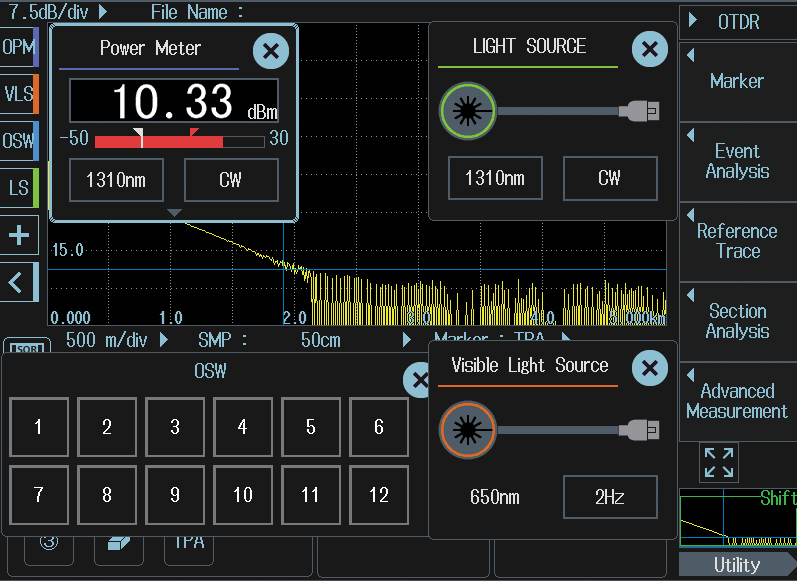

| Power Meter Wavelength Range | 800-1700nm |
| Power Meter Power Range | CW: +10 to -70dBm, CHOP: +7 to -70dBm |
| High Power Meter Power Range | CW: +27 to -50dBm, CHOP: +24 to -50dBm |
| Visible Light Source Wavelength | 650±20nm |
| Visible Light Source Output Power | ≥-3dBm |
| Fiber Endface Inspection Function | IEC61300-3-35 compliant |
| Fiber Endface Inspection Wavelength | 1310-1600nm |
