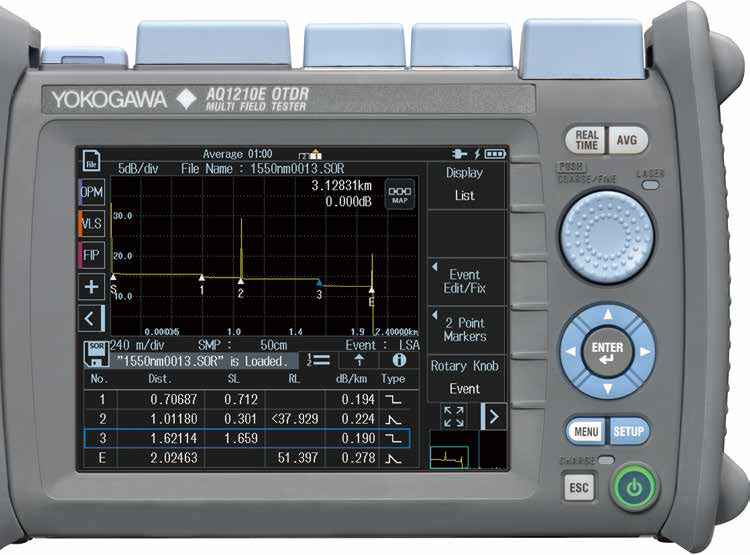

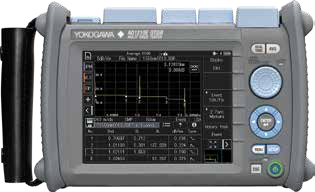

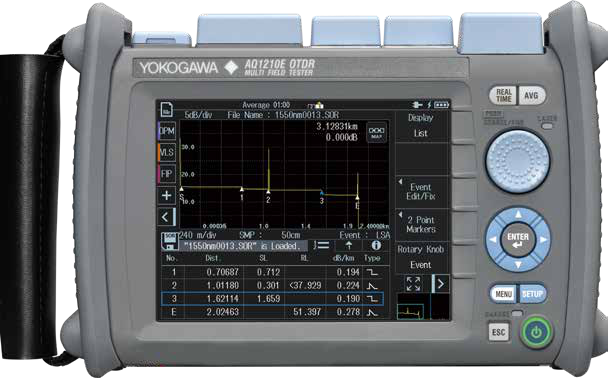

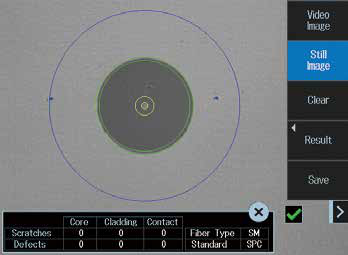

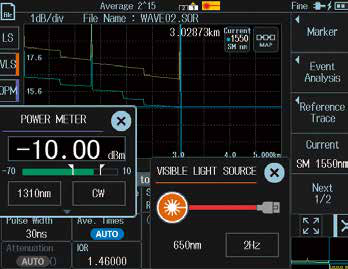

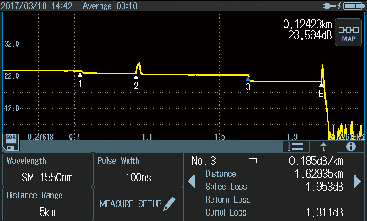

AQ1210 Series OTDR
The AQ1210 Series OTDR is a compact and multifunctional optical time-domain reflectometer designed for precise and efficient optical fiber network installation and maintenance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 1310±20/1550±20/1625±10/1650±10/850±30/1300±30 |
| Number of Optical Channels | 2, 3, 4 |
| Applicable Fiber | SM (ITU-T G.652), GI (1310/1550/1625/1650nm), GI (50/125μm) |
| Distance Range (km) | 0.1-256, 0.1-512, 0.1-1000 |

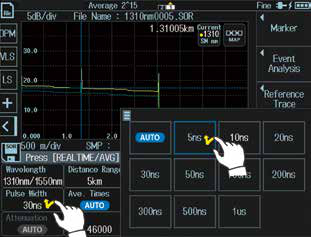

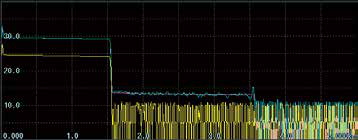

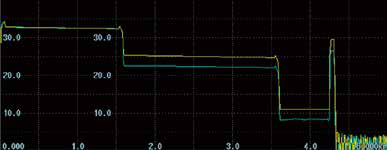

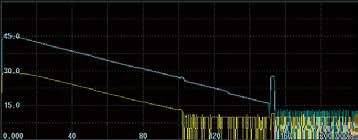

| Pulse Width (ns) | 5-20000 |
| Event Dead Zone (m) | 0.75, 2.5 |
| Attenuation Dead Zone (m) | 4, 5 |
| PON Dead Zone (m) | 35, 40 |
| Dynamic Range (dB) | 37/35, 42/40, 37/35/25/27 |
| Return Loss | ≥2dB |
| Sampling Resolution | 最小5cm, 最小2cm |
| Distance Measurement Resolution | 1cm, 1m, 精度: ±0.01dB |
| Distance Measurement Accuracy | ±0.075m ±测量距离×2×10^-5 |

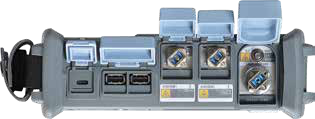

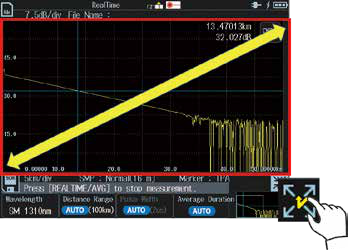

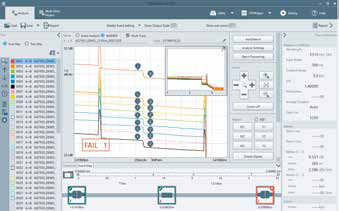

| Optical Connector Type | SC/FC/LC/SC Angled-FC (1310/1550/1625/1650nm), SC/FC/LC (850/1300nm) |
| Display Size | 5.7英寸TFT LCD (彩色), 640×480 |
| Data Storage | USB 2.0 Type-A×2, USB Type-C |
| File Format | SOR |
| File Format | CSV |
| File Format | SET |
| File Format | SMP |
| File Format | BMP |
| File Format | JPG |
| Battery Type | DC 5V, USB供电 |
| Battery Life | 超过10小时 |
| Operating Temperature Range | -20°C至+60°C |
| Dimensions | 210mm(W)×148mm(H)×69mm(D) |
| Weight | 约1kg |
