OSW408XA Optical Integrated Testing Floor

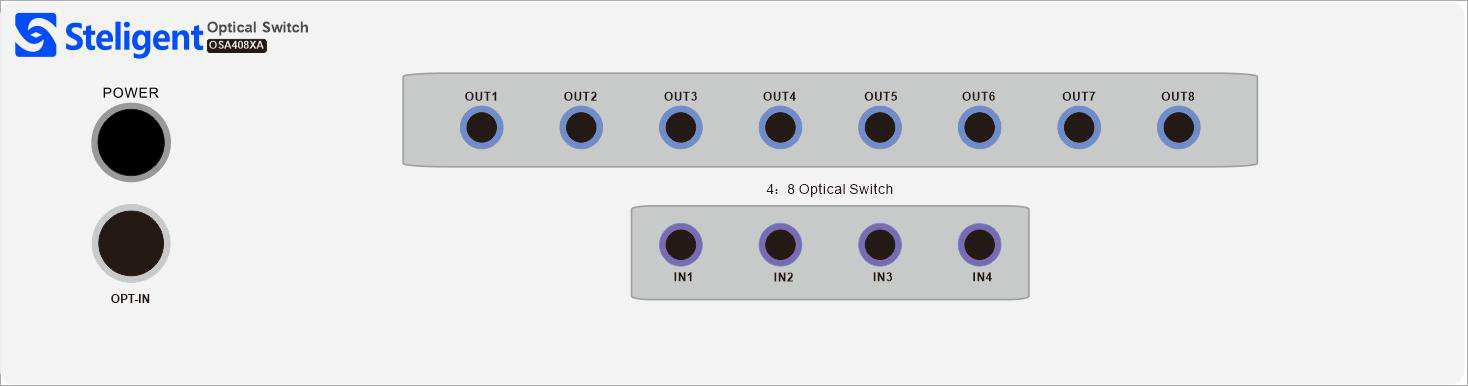

The OSW408XA Optical Integrated Testing Floor is a high-performance, cost-effective solution designed for TOSA/ROSA components R&D, manufacturing environments, and field installations. It integrates a precise optical power meter and optical switch, providing high precision, repeatability, and remote control capabilities.
Save to Favorites

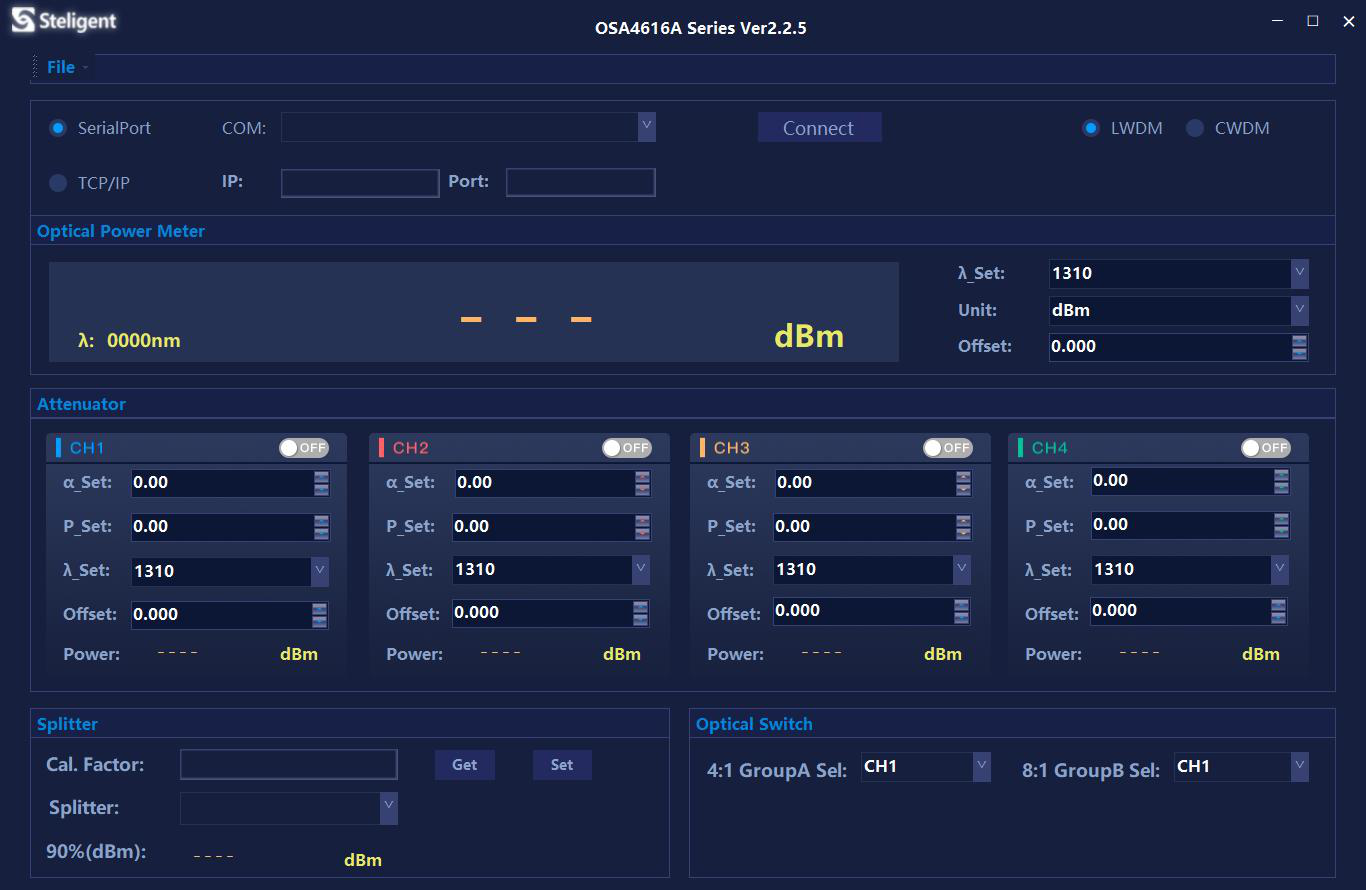

Overview
Specifications

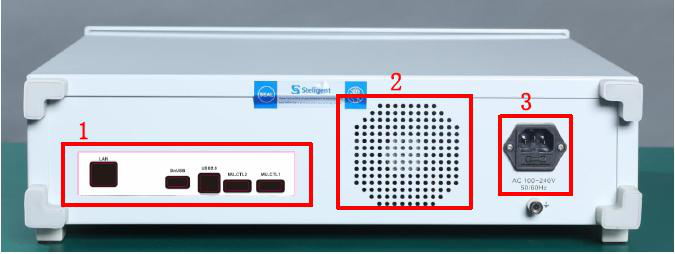

| Parameter | Value |
|---|---|
| Switching Channel Multi Mode Fiber | 4x8 |
| Switching Channel Single Mode Fiber | 4x8 |
| Wavelength Range Multi Mode Fiber | 850±40nm |
| Wavelength Range Single Mode Fiber | C band/L band/C+L/Others |
| Insertion Loss Multi Mode Fiber | 1.8dB typ., 2.2dB max |
| Insertion Loss Single Mode Fiber | 1.8dB typ., 2.2dB max |
| Repeatability | ≤±0.02 |
| Return Loss | ≥50dB |
| Cross Talk | ≥50dB |
| Wavelength Dependent Loss | ≤0.3dB |
| Polarization Dependent Loss | ≤0.2dB |
| Temperature Dependent Loss | ≤0.3dB |
| Switching Time | ≤15ms |
| Optical Power Handling | ≤500mW |
| Power Consumption | 100uW |
| Durability | 1 Billion Min. Cycles |
| Operating Temperature | +0°C to +70°C |
| Storage Temperature | -25~70°C |
| Fiber Type Multi Mode Fiber | MMF-28 or Equivalent |
| Fiber Type Single Mode Fiber | SMF-28 or Equivalent |
| Dimension | OD5.5x28 |
| Calibrated Wavelength | 850nm, 980nm, 1310nm, 1490nm, 1550nm, 1610nm |
| Wavelength Range | 850~1700nm |
| Type of Detector | InGaAs |
| Measuring Range | +5~75dBm |
| Uncertainty | ±3% |
| Measuring Unit | dB/dBm/xW |
| Display Resolution | 0.01/0.001 |
| Working temperature | -10~60°C |
| Dimensions | 107mm x 442mm x 365mm |
| Weight | Approx. 6.8kg |
| Recommended Recalibration Period | 24 month |
| Operating Humidity | 15% to 95%, non-condensing |
| Altitude | 2000m |
| Interfaces | USB interfaces |
| Power Consumption Line Power | AC 90~250V, 50~60Hz, 20Wma |
