STLHB-8986A-MUL400-EVK

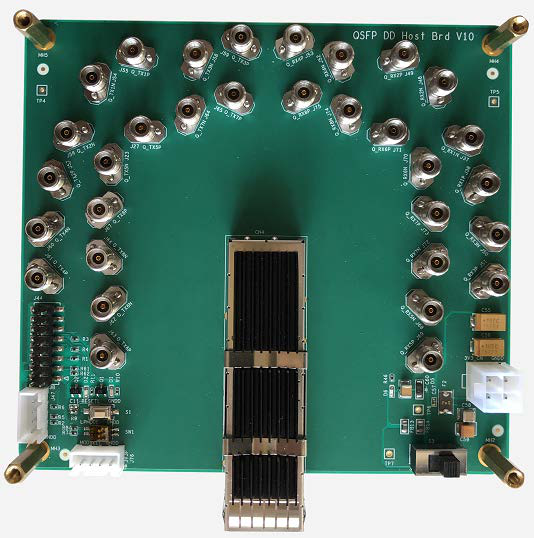

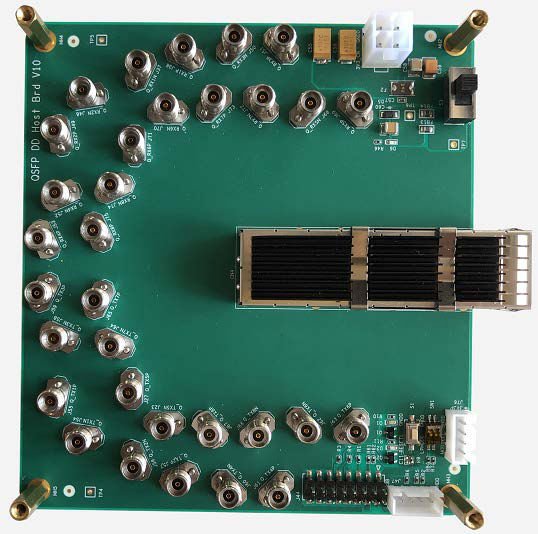

The STLHB-8986A-MUL400-EVK is an 8x56G QSFP DD evaluation board kit designed for 400Gbps Ethernet applications. It provides a convenient way for designers to evaluate the electrical and optical performance of high-speed QSFP DD transceivers.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power Input | 3.3V/5A |
| Connector Type | 40GHz SMK high-speed vertical mounted connectors |
| Signal Rate | 56Gbps per channel |
| Fiber Support | Single-mode fiber for up to 10km |
| Compatibility | Compliant with 400GbE electrical and optical specifications 802.3bm |
| Control Interface | MCU controller interface for module control and digital diagnostics monitoring |
| Heat Sink | QSFP DD compliant cage |
| Heat Sink | connector |
| Heat Sink | and heat sink |
| Debug Interface | I2C/MDIO/UART, GPIO in/out, and power sensing |
