STLHB-7986A-MUL400-EVK

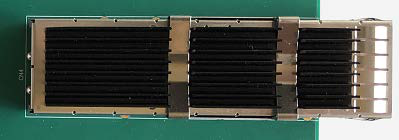

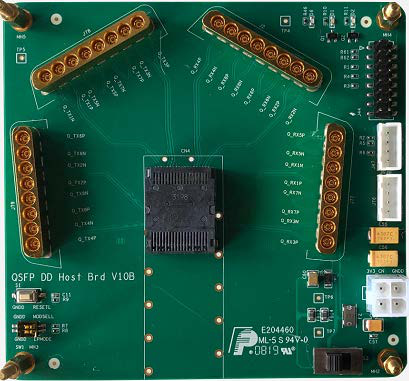

The STLHB-7986A-MUL400-EVK is an 8x56G QSFP DD Evaluation Board Kit designed for testing and debugging 400 Gigabit Ethernet applications. It provides a convenient way to evaluate the electrical and optical performance of QSFP DD transceivers, supporting high-speed links over fiber at signaling rates of 448Gb/s (line rate of 56Gb/s per channel) for link distances up to 10km.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Electrical and Optical Specifications | 802.3bm |
| High-Speed Connector Bandwidth | 40GHz |
| Fiber Link Distance | ≤10km |
| Signaling Rate | 448Gb/s |
| Channel Rate | 56Gb/s |
| Power Voltage | 3.3V |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
1550 nm directly modulated optical transmitter
Transmitters and Receivers
Ytdq
optical wavelength: 1310 optical connector: FC∕APC operating bandwidth: 45~860
-
optical receiver
Transmitters and Receivers
Ytdq
CTB: -66dBc CSO: -63dBc output level: 106dBuv (-3dB optical power reception)
-
optical receiver
Transmitters and Receivers
Ytdq
CTB: -66dB CSO: -63dB output level: 106dBuv (-3dB optical power reception)
-
externally modulated optical transmitter
Transmitters and Receivers
Ytdq
laser type: 1550nm DFB LD relative intensity noise: ≤-160dB/Hz
-
QSFP28 Host Board V1.30
Transmitters and Receivers
Steligent
Product Model: QSFP28 host board V1.30 PCB Marking: E206460 PCB Number: AL-85MA-0
QSFP28 Host Board V1.30 is a high-speed host-side evaluation/test PCB for 100G QSFP28 optical transceivers. The board routes the QSFP28 electrical interface to an arc array of gold SMA coaxial connectors around the top edge and to a QSFP28 cage/connector at the bottom center, enabling signal-integrity, compliance and interoperability testing of QSFP28 modules on the host side. PCB markings include E206460, AL-85MA-0 and the revision label "QSFP28 host board V1.30".
