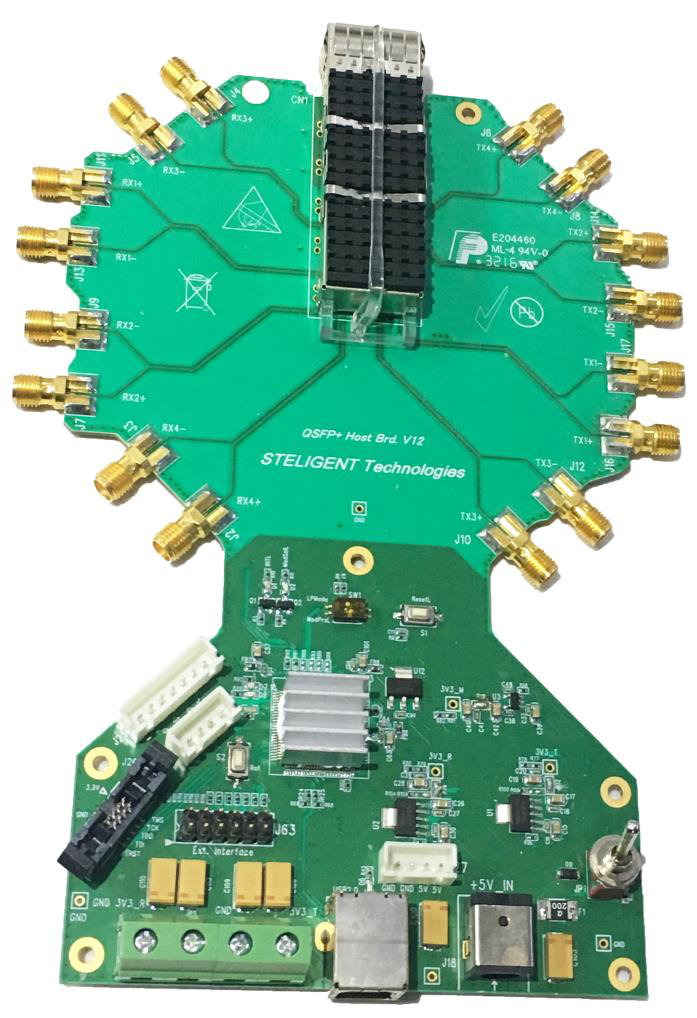

QSFP28 Host Board V1.2
QSFP28 Host Board is a high-speed, Small Form Factor Pluggable (QSFP28) host board designed for evaluating 100G QSFP28 modules that operate at data rates up to 28Gbps per lane. The host board can be used to test a variety of different modules, and includes additional features for testing, monitoring, and programming Customer’s QSFP28 reference design boards.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| CH1 TX± | Available |
| CH2 TX± | Available |
| CH3 TX± | Available |
| CH4 TX± | Available |
| CH1 RX± | Available |
| CH2 RX± | Available |
| CH3 RX± | Available |
| CH4 RX± | Available |
| Key: Module Reset | Available |
| Key: Reset for MCU | Available |
| I2C Interface | 1:GND; 2:SDA; 3:SCL; 4:3.3V |
| +5V/5A DC Adaptor Input | Available |
| +5V/5A DC Power Input | Available |
| +3.3V DC Power Input | Available |

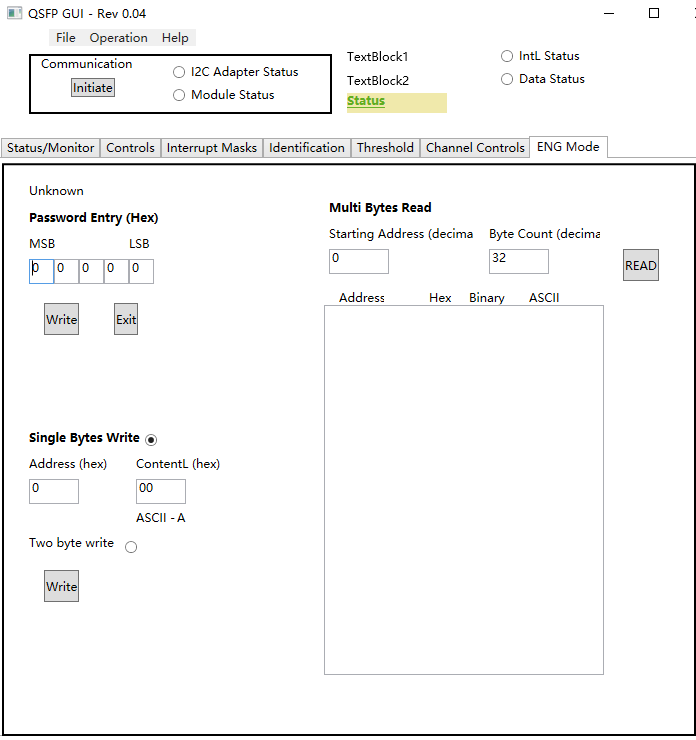

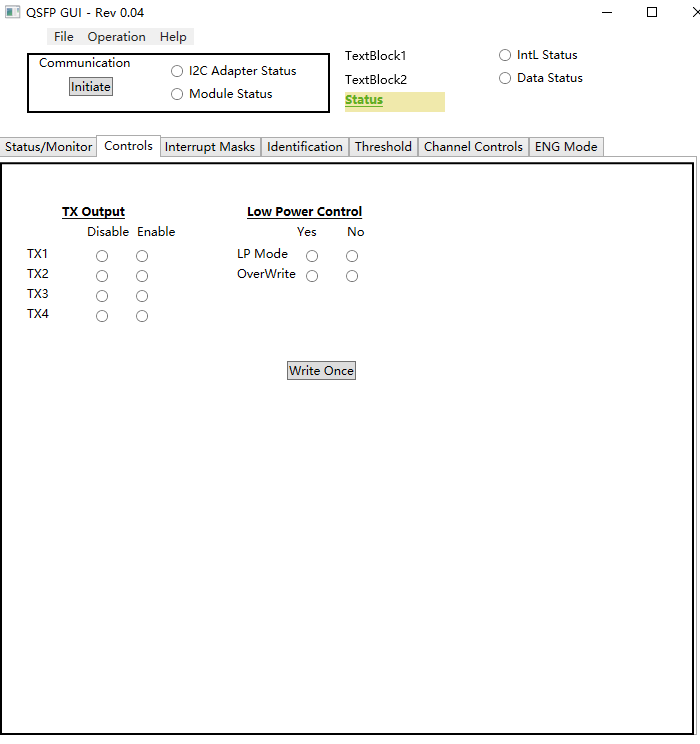

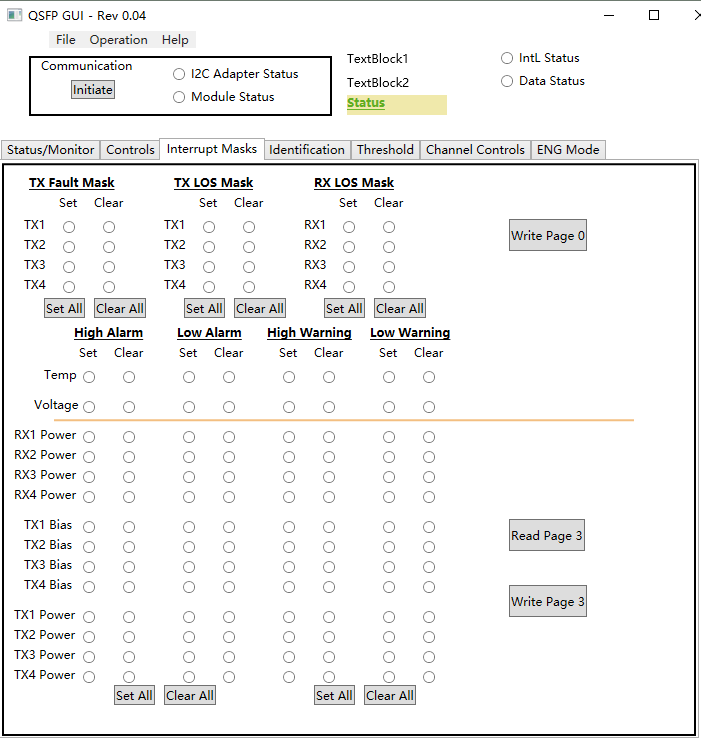

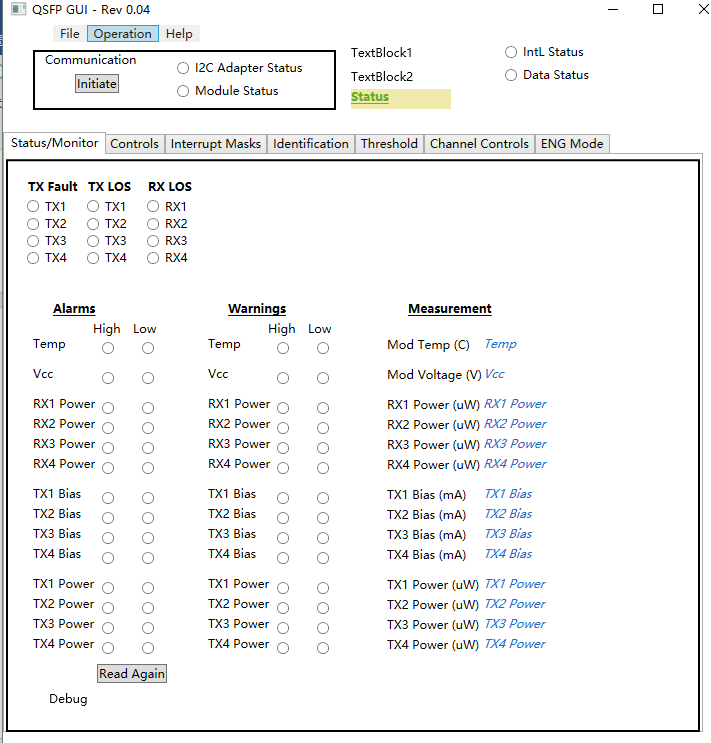

| USB2.0 | Communicate with PC GUI |
| DIP Switch | (1) ModPrsL Setting; (2) LPMode Setting |
