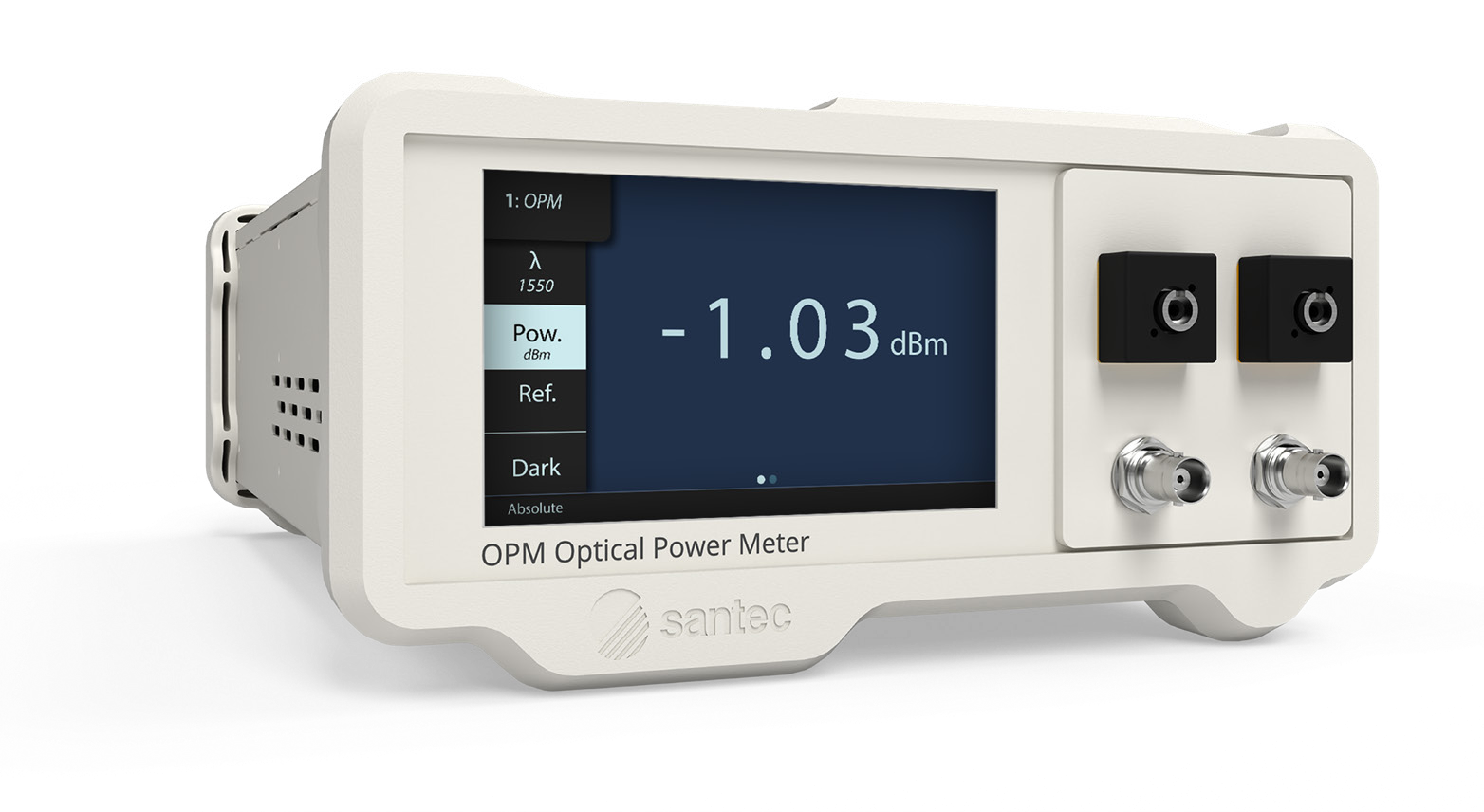

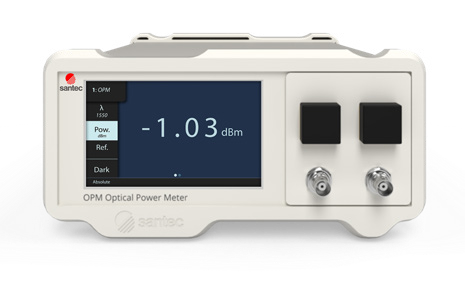

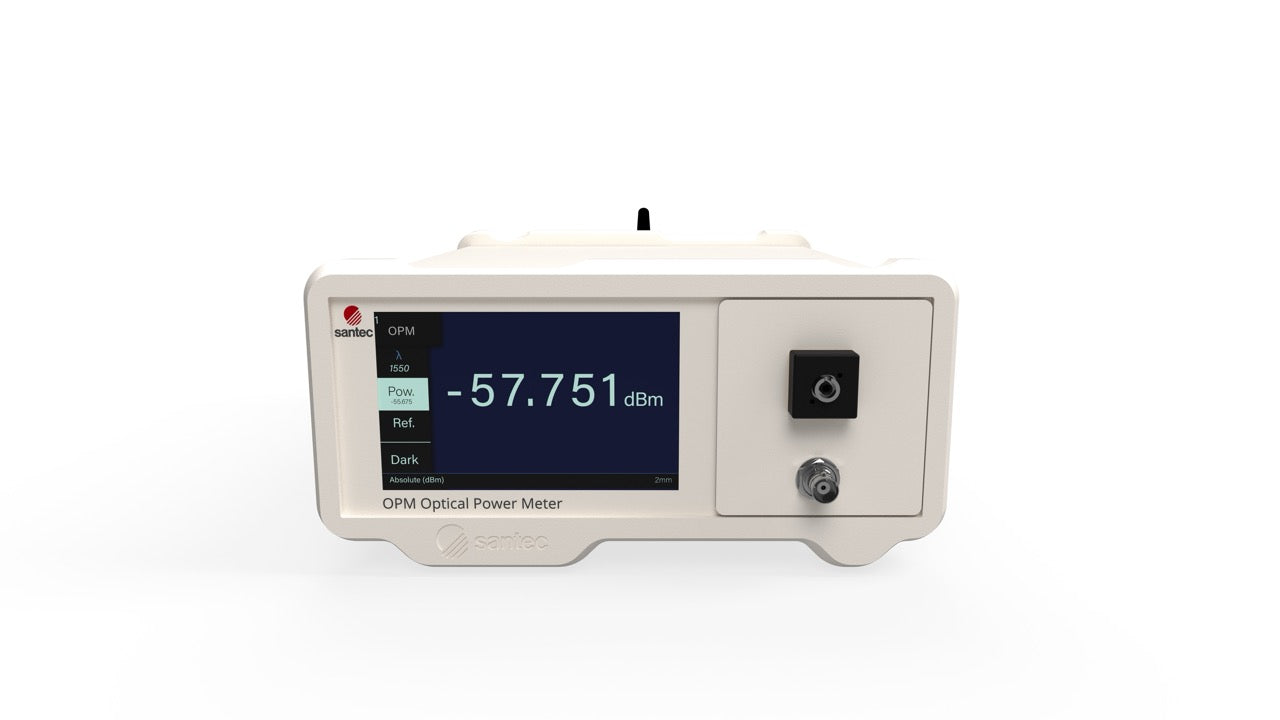

OPM-200 High-Performance Optical Power Meter
The OPM-200 is a high-performance optical power meter designed for precise power measurement across a wide wavelength range. It features advanced detectors, superior accuracy, and flexible configurations, making it ideal for various optical applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Detector Type | 2mm InGaAs, Integrating sphere (InGaAs) |
| Wavelength Range (nm) | 840 to 1700 |
| Power range (dBm) | 8 to -80 (2mm InGaAs), 30 to -50 (Integrating sphere) |
| Max Safe Power (dBm) | 16 (2mm InGaAs), 30.8 (Integrating sphere) |
| Uncertainty at Ref Conditions | ±3.7% (840 to 1200nm), ±2.7% (1200 to 1650nm) |
| Power Resolution (dB) | 0.001 |
| Wavelength resolution (nm) | 0.015 |
| Linearity (dB) | ±0.03±20pW (840 to 1200nm), ±0.02±5pW (1200 to 1650nm) |
| Polarization Dependent Responsivity (dB) | 0.03 (2mm InGaAs), 0.04 (Integrating sphere) |
| Averaging Time | 50μs to 1 second |
| Analog Output | 0 to 2.2V |
| Data Logging | 128,000 points per detector |
| Remote Interface | USB or Ethernet |
| Display | 5-inch touch screen |
| Input Voltage | 100-240VAC, 50-60Hz |
| Power Consumption (VA) | 60 maximum |
| Unit Dimensions W×H×D (cm) | 23.5×12×32.5 (OPM-200), 8.5×5×13.3 (RD-IN2-OPM-200), 6.8×8.5×13.3 (RD-INS-OPM-200) |
| Unit Weight (kg) | 3 (OPM-200), 0.6 (RD-IN2-OPM-200), 0.6 (RD-INS-OPM-200) |
| Total Shipment Weight (kg) | 4 |
| Operating Temperature (°C) | 5 to 40 |
| Storage Temperature (°C) | -40 to 70 |
| Humidity (non-condensing) | Maximum 95% RH from 5 to 40°C |
