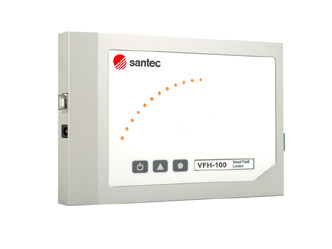

VFH-100 Ribbon Visual Fault Locator
The VFH-100 is designed to check for breaks in ribbon fiber and to verify correct polarity of ribbon fiber connectors, hybrid cables, and distribution boxes quickly and conveniently. Each of the 12 fibers illuminates with bright 635 nm red LASERs. The VFH-100 can be used for single-mode or multimode applications and pre-programmed with various sequences for automatic or individual scanning of each fiber. User-defined patterns can be programmed via the USB data port.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Laser Sources | 12 |
| Optical Interface | MTP/MPO/APC male or female |
| Fiber Type | SMF28 |
| Laser Wavelength | 635nm |
| Output Power (Typ.) | 0.50mW@9125 |
| Internal Battery | Rechargeable lithium-ion battery |
| Power Supply & Charge | +5VDC, 1.5A fast charge |
| Data Interface & Charge | USB 2.0, 1200mA |
| Unit Dimension (W×H×D) | 21×8.6×3.1cm |
| Unit Weight | 0.6kg |
| Operating Temperature (°C) | 0~50 |
