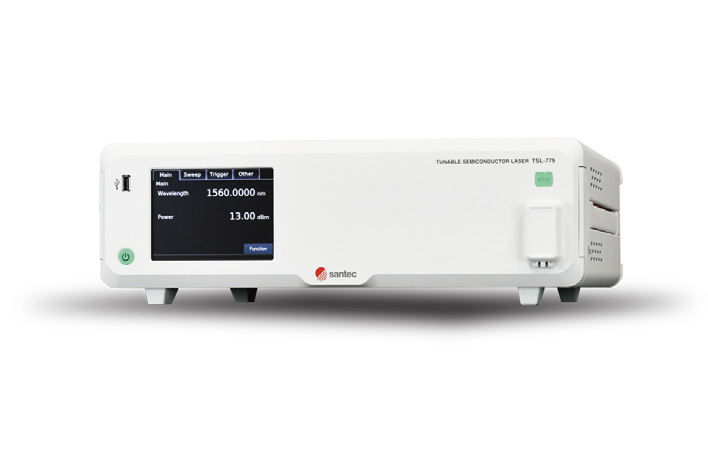

TSL-775

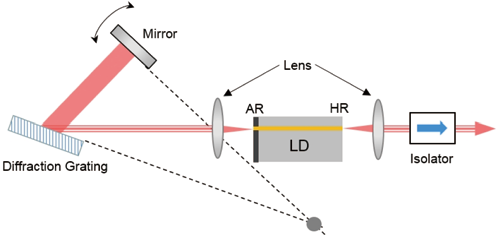

The TSL-775 is a high-performance tunable laser developed by Santec, leveraging over 40 years of expertise in optical technology. It is designed for a wide range of applications requiring precise and stable wavelength tuning. With a redesigned optical system, the laser achieves low power consumption and high stability, making it ideal for advanced optical testing and research.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

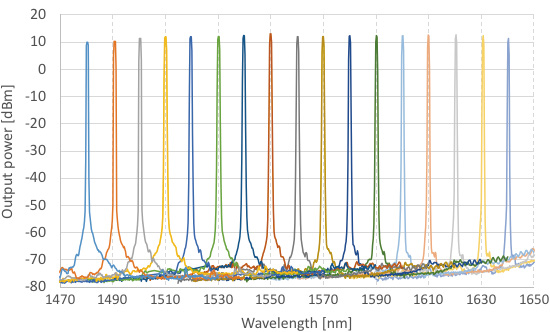

| Wavelength Tuning Range | 1480-1640nm, 1490-1630nm |
| Wavelength Resolution | 0.1nm |

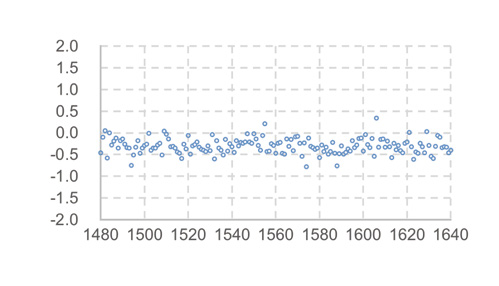

| Absolute Accuracy | ±1.5pm |
| Repeatability | ±0.5pm |
| Stability | <±0.5 (24hours) |
| Sweep Speed | 0.5 to 200nm/s |
| Fine Adjustment Range | 10GHz |
| Peak Output Power | ≥13dBm |
| Output Power Range | ≥10dBm (1500-1630nm) |
| Power Stability | ±0.01 (1hour, typ.), ±0.02 (24hours, typ.) |
| Signal-to-Noise Ratio | 90dB/0.1nm |
| Relative Intensity Noise | -145dB/Hz (1MHz to 3GHz) |
| Linewidth | <60kHz |
| Spectral Width | 35kHz (HWHM) |

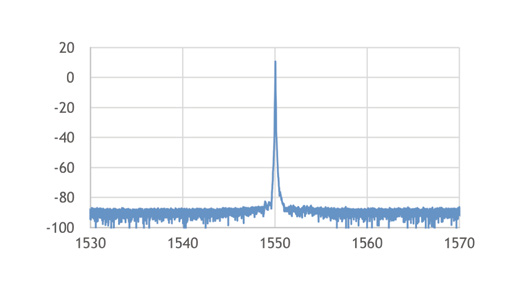

| Side Mode Suppression Ratio | ≥50dB |
| Short-Term Stability Suppression Ratio | ≥80dB |
| Super Short-Term Stability Suppression Ratio | ≥90dB/0.1nm |
| Fiber Connector | FC or SC |
| Fiber Connector | SPC or APC |
| Modulation Frequency Range | DC to 400kHz |
| Operating Temperature | 2°C to 35°C |
| Humidity | <80% (non-condensing) |
| Power Supply | AC100-240V (±10%), 50/60Hz |
| Dimensions | 440mm×416mm×133mm |
| Weight | 16kg |
