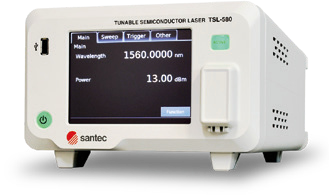

TSL-580
TSL-580 is a high-performance tunable semiconductor laser developed by Santec. It features a wide wavelength tuning range, high output power, and low noise. This product inherits the advantages of previous models while optimizing scanning speed and stability. It is ideal for optical component testing, fiber transmission testing, and spectral analysis.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 1240-1380nm, 1355-1505nm, 1480-1640nm |
| Wavelength Resolution | 0.1pm |
| Wavelength Stability | ±1pm (typ.) |
| Wavelength Repeatability | ±0.5pm |
| Wavelength Accuracy | ±1.0pm at 50nm/s, ±1.5pm at 100nm/s, ±2.1pm at 200nm/s |
| Wavelength Scanning Speed | 1-200nm/s |
| Output Power | ≥15dBm |
| Power Stability | ±0.01dB |
| Power Wavelength Flatness | ±0.2dB |
| Relative Intensity Noise | -145dB/Hz (1MHz to 3GHz) |
| Linewidth | 20kHz |
| Side Mode Suppression Ratio | ≥40dB |
| Short-Term Stability of Side Mode Suppression Ratio | ≥45dB |
| Long-Term Stability of Side Mode Suppression Ratio | ≥80dB |
| Operating Temperature | 15-35°C |
| Operating Humidity | <80% (non-condensing) |
| Power Supply | AC100 to 120V / 200 to 240V ±10%, 50/60Hz |
| Dimensions | 220x385x130mm |
| Weight | 7kg (Type P), 9kg (Type Q) |
