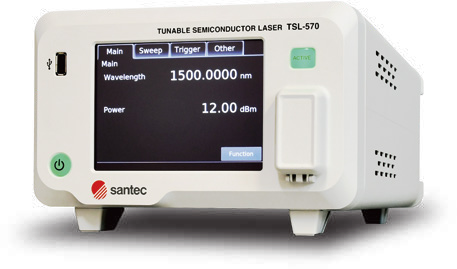

TSL-570 High Performance Tunable Laser
The TSL-570 is a high-performance tunable laser with a wide tuning range and an output combining high power and high signal-to-noise ratio. It features a new optical cavity design with precise speed control up to 200nm/s and sub-picometer resolution and accuracy. It is suitable for various applications in photonics, including optical component characterization, photonic integrated circuit testing, quantum photonics, spectroscopy, and sensors.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Tuning Range Type A | 1260-1360nm |
| Wavelength Tuning Range Type C | 1355-1485nm |
| Wavelength Tuning Range Type P | 1480-1640nm |
| Wavelength Setting Resolution | 0.1pm |

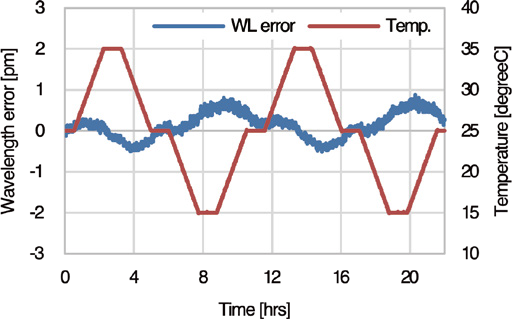

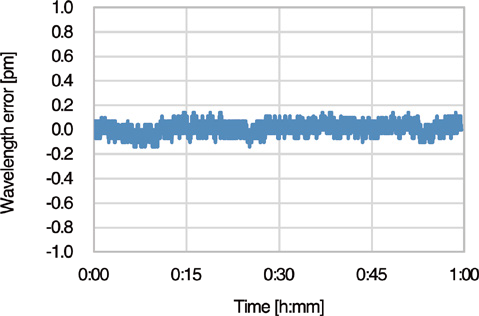

| Wavelength Stability (typ.) Type A | ≤±5pm |
| Wavelength Stability (typ.) Type C | ≤±1pm |
| Wavelength Stability (typ.) Type P | ≤±1pm |
| Absolute Wavelength Accuracy Type A | ±15pm |
| Absolute Wavelength Accuracy Type C | ±3.5pm |
| Absolute Wavelength Accuracy Type P | ±1pm |
| Wavelength Repeatability (typ.) Type A | ±8pm |
| Wavelength Repeatability (typ.) Type C | ±1.5pm |
| Wavelength Repeatability (typ.) Type P | ±1pm |
| Sweep Speed | 1-200nm/s |
| Fine Tuning Scan Range | ≥10GHz |
| Output Power Type A | ≥13dBm |
| Output Power Type C | ≥13dBm |
| Output Power Type P | ≥13dBm |
| Power Stability | ±0.01dB |
| Power Repeatability | ±0.01dB |
| Power Flatness vs. Wavelength (Step mode) | ±0.2dB |
| Dynamic Power Repeatability | ±0.01dB |
| Dynamic Relative Power Flatness | ±0.2dB |
| Relative Intensity Noise (RIN) | -145dB/Hz (1MHz to 3GHz) |
| Linewidth (typ.) Coherence Ctrl. Off | 200kHz |
| Linewidth (typ.) Coherence Ctrl. On | 40MHz |
| SMSR (typ.) | ≥45dB |
| Signal to Total Source Spontaneous Emission Ratio | ≥70dB |
| Signal to Source Spontaneous Emission Ratio | ≥80dB/nm (≥90dB/0.1nm) |
| Optical Output Connector | FC or SC |
| Optical Output Connector | SPC or APC |
| Optical Fiber | PMF |
| Communication | GP-IB (IEEE488.2), USB, Ethernet |
| Power Monitor | 0 to 3V |
| Intensity Modulation | DC to 400kHz (Input level -2 to 0V, Modulation depth >50%/V (typ.)) |
| Operating Temperature | 15 to 35°C |
| Operating Humidity | <80% (non-condensing) |
| Power Supply | AC100 to 120/200 to 240V ±10%, 50/60Hz |
| Power Consumption | 100VA |
| Dimensions (W x D x H) | 220x385x130mm |
| Weight | 7kg |
