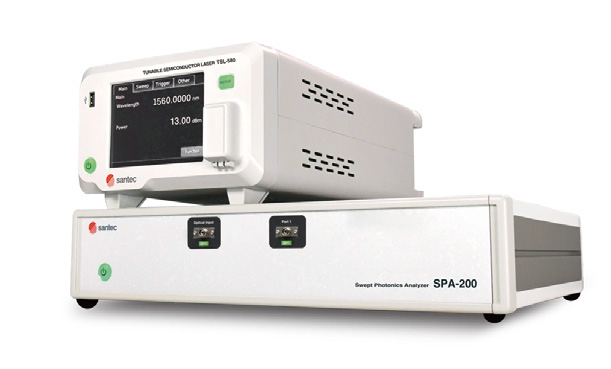

Swept Photonics Analyzer SPA-200

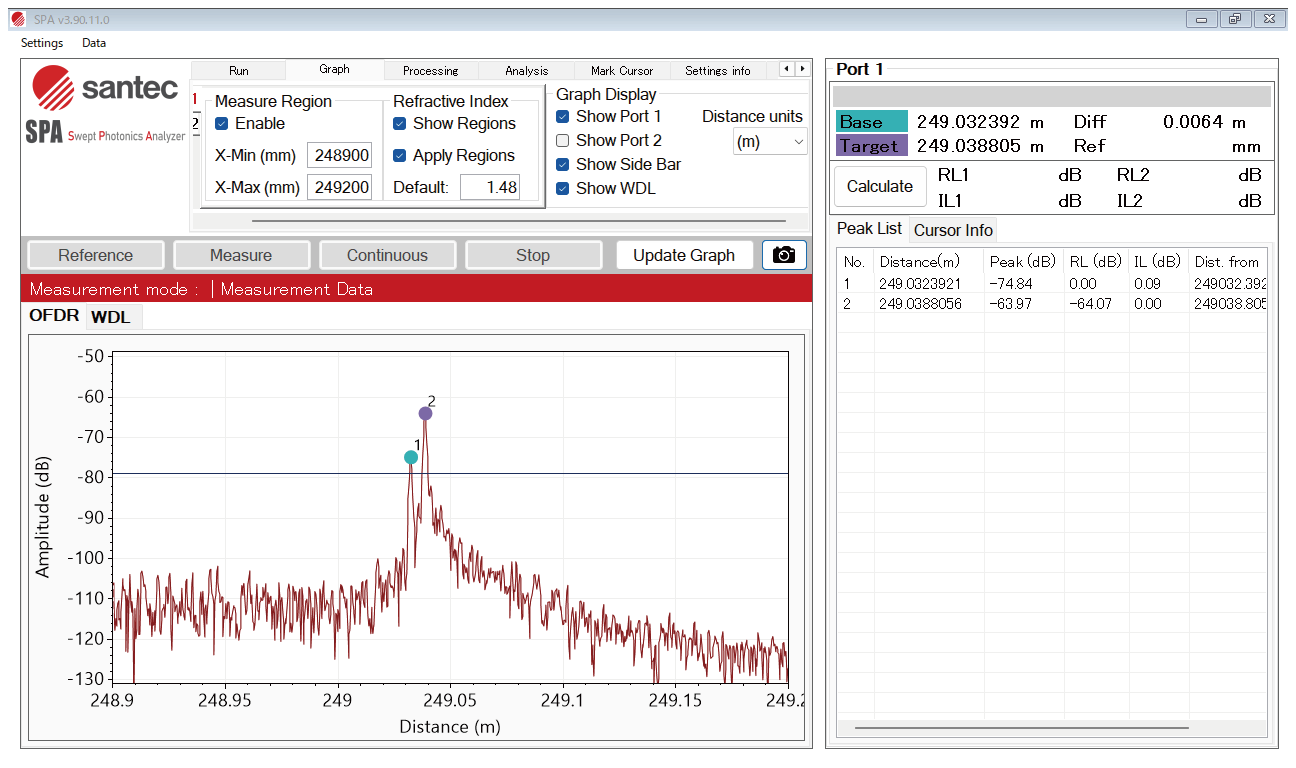

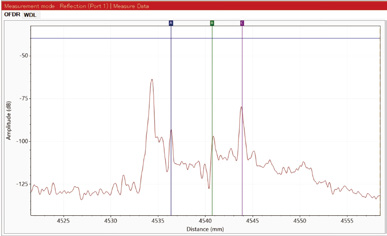

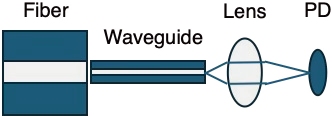

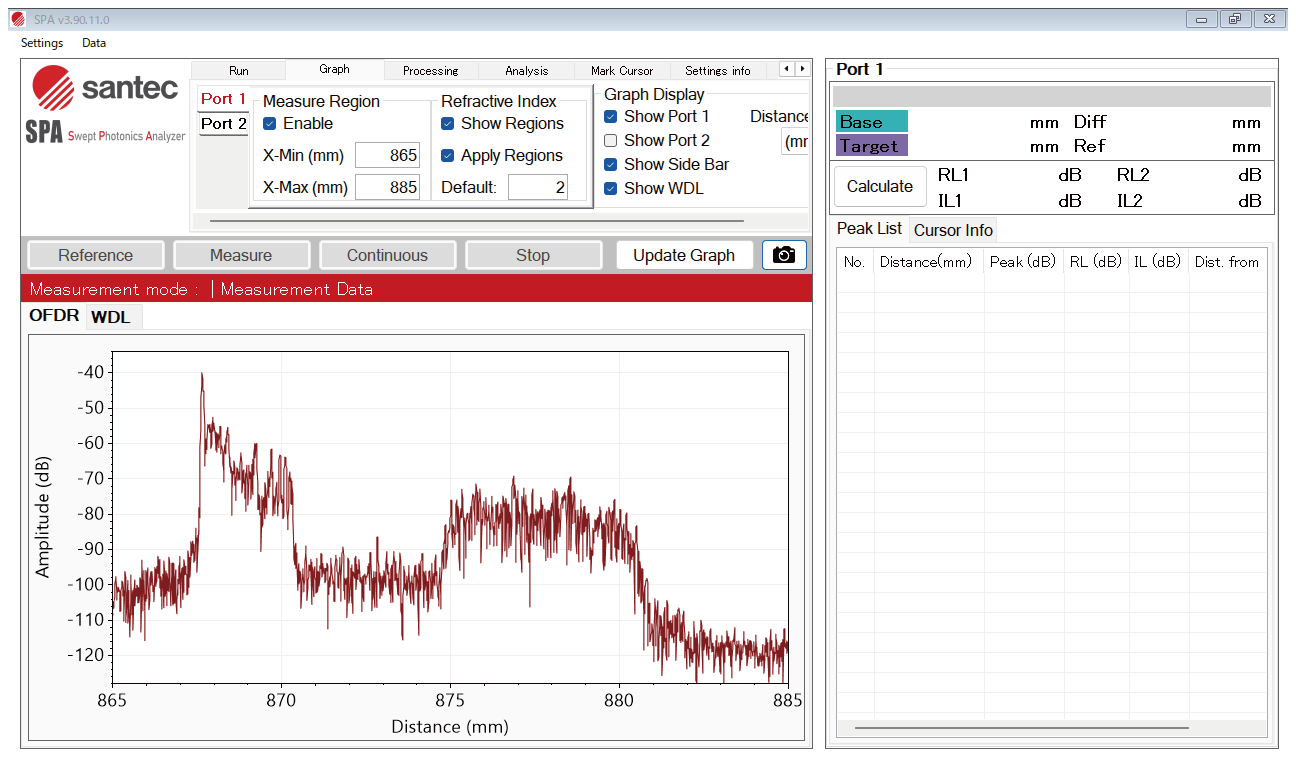

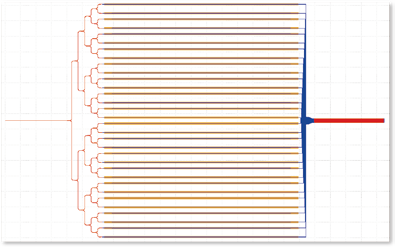

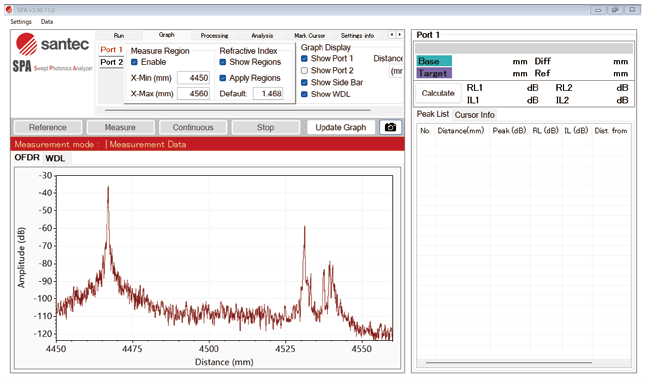

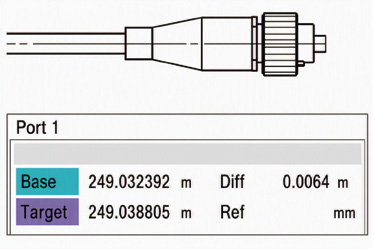

The SPA-200 is an advanced analytical instrument that enables highly accurate detection of reflection points and defect locations, precise measurement of minute losses, and characterization of waveguide propagation loss—capabilities essential for optical fiber cable assembly and photonics device testing.
Save to Favorites
Overview
Specifications

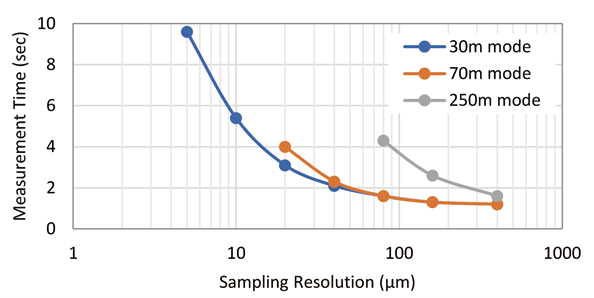

| Parameter | Value |
|---|---|
| Wavelength Range | 1260-1350nm, 1480-1640nm |
| Measurement Range (m) | 250 |
| Min. Sampling Resolution 30m mode (μm) | 6 |
| Min. Sampling Resolution 70m mode (μm) | 20 |
| Min. Sampling Resolution 250m mode (μm) | 5 |
| Repeatability (typ.) (mm) | ±0.08 (30m, 6μm resolution, 1260-1350nm), ±0.1 (5μm resolution, 1480-1640nm), ±1 (250m, 80μm resolution), ±5 (250m, 400μm resolution) |
| Sensitivity | -140 |
| Dynamic Range | >80 |
| Return Loss Accuracy (typ.) (dB) | ±0.2 |
| Return Loss Repeatability (typ.) (dB) | ±0.5 |
| Return Loss Resolution | 0.01 |
| Return Loss Dynamic Range | >20 |
| Insertion Loss Accuracy (typ.) (dB) | ±0.1 |
| Insertion Loss Repeatability (typ.) (dB) | ±0.05 |
| Insertion Loss Resolution | 0.01 |
| Measurement Time 30m mode 6/5μm resolution (sec) | 10 |
| Measurement Time 70m mode 20μm resolution (sec) | 4 |
| Measurement Time 250m mode 80μm resolution (sec) | 2 |
| Measurement Time 250m mode 400μm resolution (sec) | 1 |
| Optical Fiber | SMF |
| Connector/Polish | FC/APC or SC/APC |
| Communication | USB and Ethernet |
| Operating Temperature (°C) | 15 to 35 |
| Operating Humidity | <80% (non-condensing) |
| Power Supply | AC100 to 240V, 50/60Hz |
| Power Consumption (VA) | 100 |
| Dimensions (W x D x H) (mm) | 430x350x88 |
| Weight (kg) | 10 |
