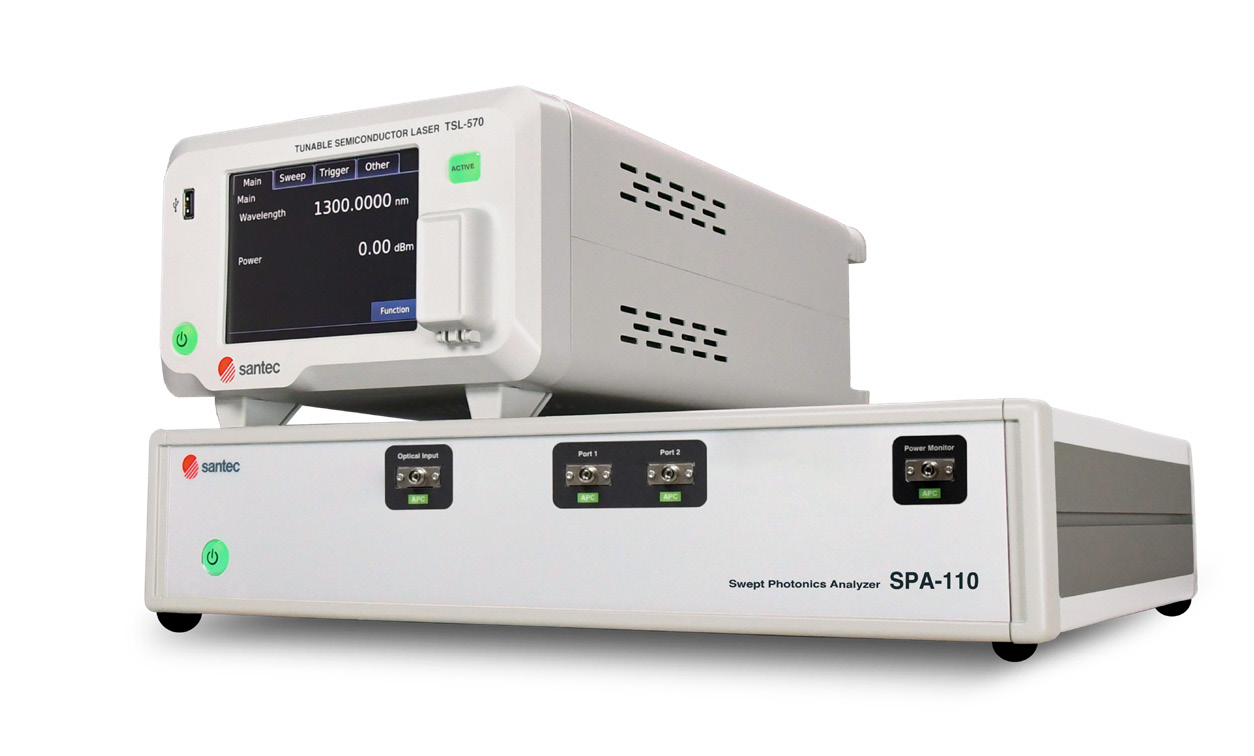

Swept Photonics Analyzer SPA-110
The SPA-110 is the next generation of OFDR-based reflectometers from Santec. It is a versatile add-on module for Santec tunable lasers, capable of analyzing compact and complex optical components with high resolution and precision.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Temperature Range (°C) | 15 to 35 |
| Operating Humidity Range (%) | ≤80 |
| Wavelength Range (nm) | 1260-1350, 1480-1640 |
| Maximum Tuning Width (nm) | 90, 160 |
| Sampling Resolution (μm) | 6, 5 |
| Measurement Length 5m (sec) | 2.6, 4.4 |
| Measurement Length 30m (sec) | 9.9, 17.2 |
| Maximum Measurement Length (m) | 30 |
| Repeatability 5m (μm) | ±50, ±30 |
| Repeatability 30m (μm) | ±300, ±180 |
| Dynamic Range (dB) | ≥80 |
| Insertion Loss (dB) | ≥20 |
| Sensitivity (dB) | -145 |
| Total Range (dB) | 0 to -135 |
| Resolution (dB) | 0.1 |
| Transmission Mode Repeatability 10m (μm) | ±100, ±60 |
| Transmission Mode Repeatability 60m (μm) | ±600, ±360 |
| Dynamic Range Insertion Loss (dB) | ≥80 |
| Fiber Type | PMF |
| Connector/Polish | FC/APC or SC/APC |
| Remote Control | USB |
| Voltage (V) | AC100 to 240 ±10% |
| Max. Power Consumption (VA) | 100 |
| Frequency (Hz) | 50/60 |
| Dimensions (mm) | 430x350x88 |
| Weight (kg) | 11 |
Applications
Key Features
Datasheet
