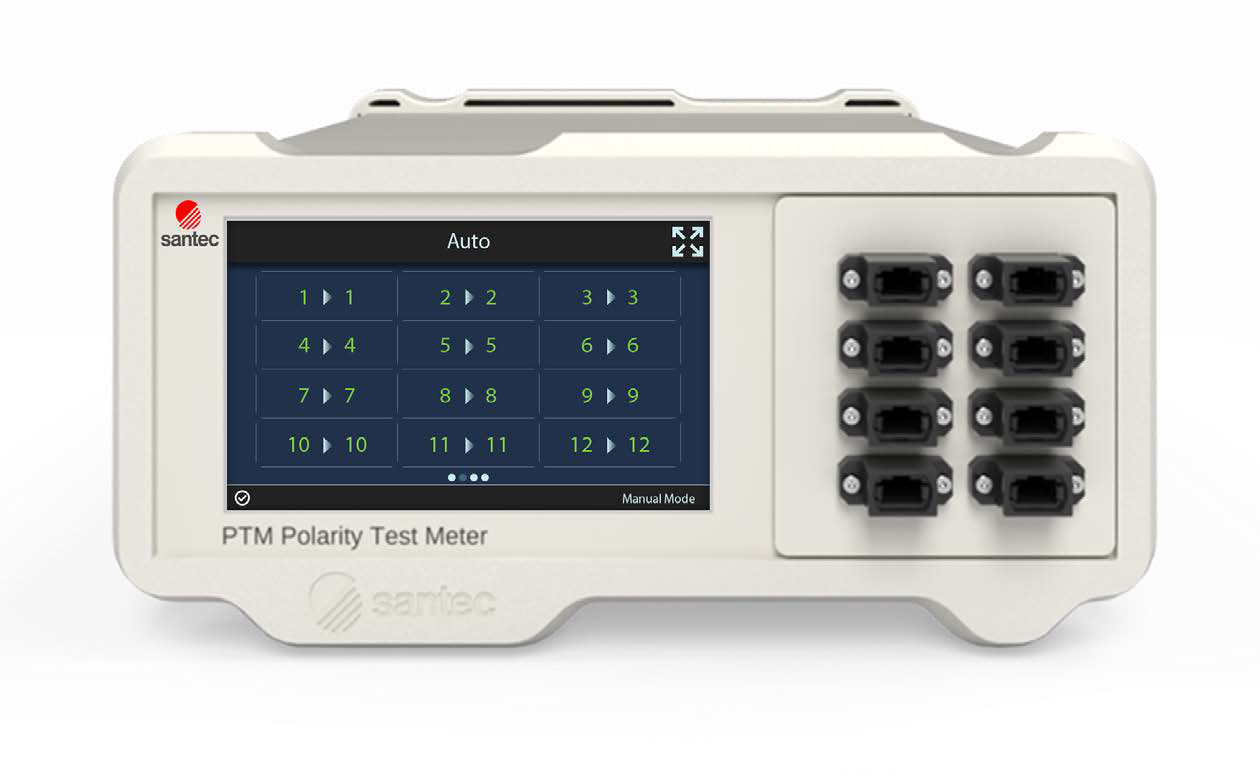

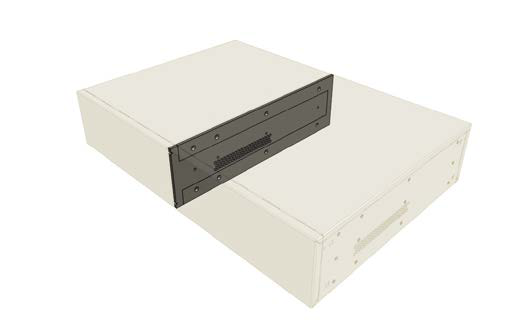

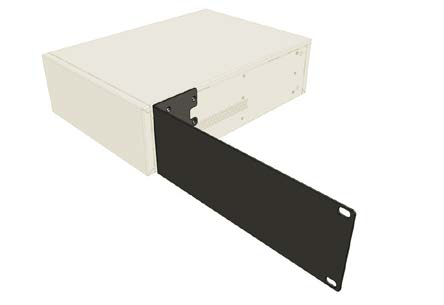

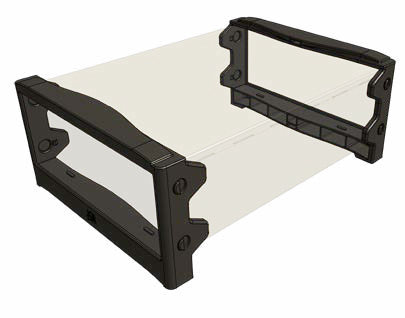

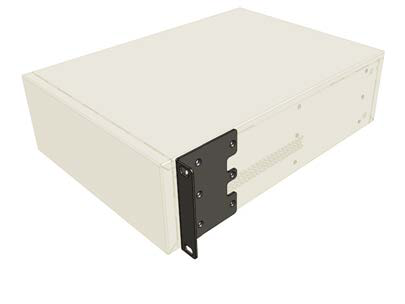

PTM-100 Polarity Test Meter
The PTM-100 is an easy-to-use instrument designed to check the polarity of multifiber cable assemblies. It features a touchscreen display, fast pass/fail results, and the ability to test up to 288 channels in under 10 seconds. The device supports various connector types and configurations, ensuring compatibility with different devices and assemblies.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 650 |
| Laser Class | 1 |
| Optics Interface Output | MTP/MPO APC Male (SM) |
| Optics Interface Input | MTP/MPO UPC Male (MM) |
| Detected Polarities | A |
| Detected Polarities | B |
| Detected Polarities | C |
| Detected Polarities | D |
| Detected Polarities | custom mappings |
| Insertion Loss (dB) | ≤6 |
| Telecom Interface | Ethernet/USB |
| Input Voltage | 100-240VAC, 50-60Hz |
| Power Consumption (W) | 80 |
| Max Channel Count 2U Half Rack | 48 |
| Max Channel Count 3U Full Rack | 288 |
| Unit Dimensions (W×H×D cm) 2U Half Rack | 23.6×12.3×25.5 |
| Unit Dimensions (W×H×D cm) 3U Full Rack | 44.8×13×33 |
| Shipping Box Dimensions (W×H×D cm) 2U Half Rack | 38.5×30×33 |
| Shipping Box Dimensions (W×H×D cm) 3U Full Rack | 65×58×33 |
| Unit Weight (kg) | 3 |
| Total Shipment Weight (kg) | 8 |
| Operating Temperature (°C) | 0 to 40 |
| Storage Temperature (°C) | -10 to 40 |
| Humidity (Non-Condensating) (%) | Maximum 95% RH from 0 to 40 |
