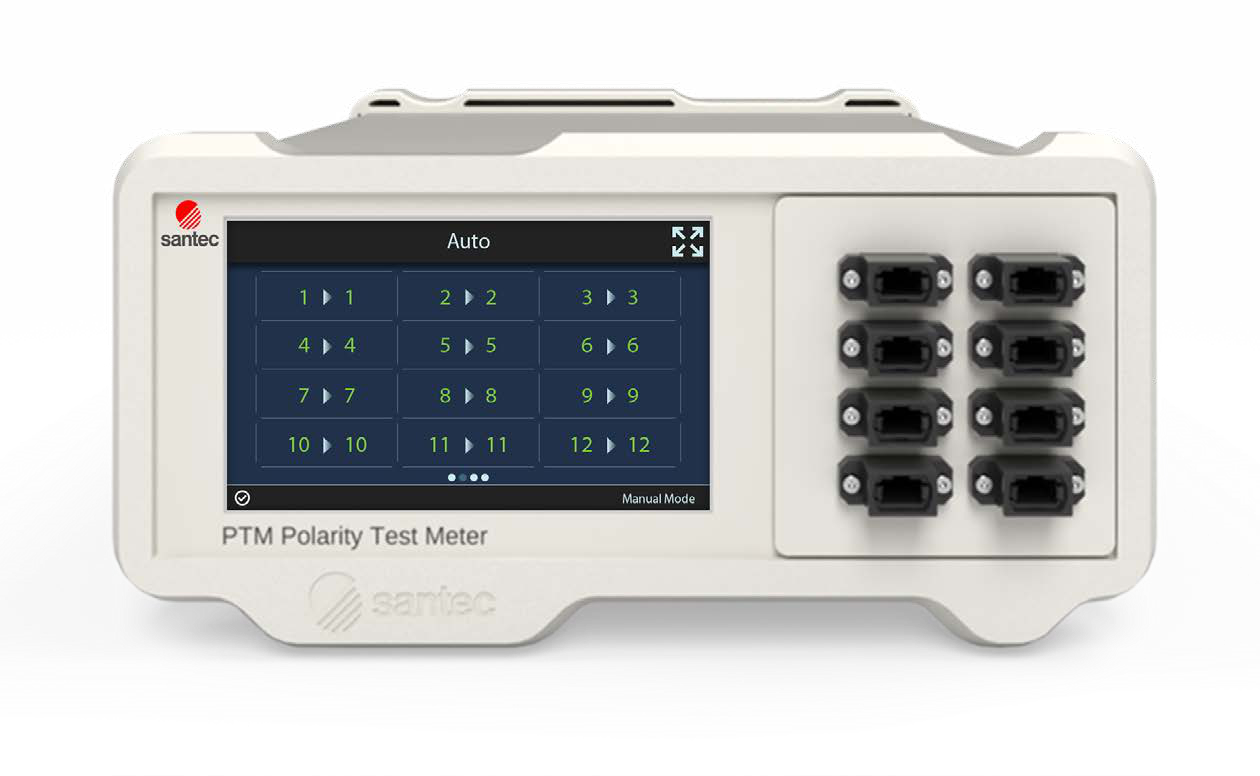

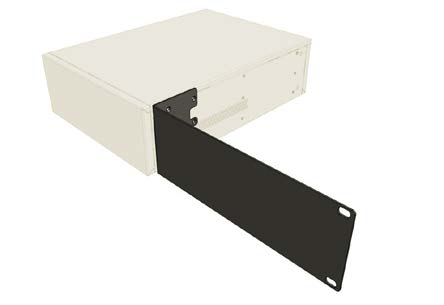

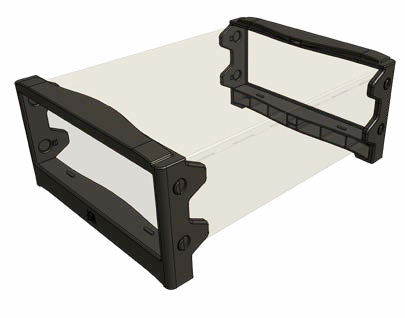

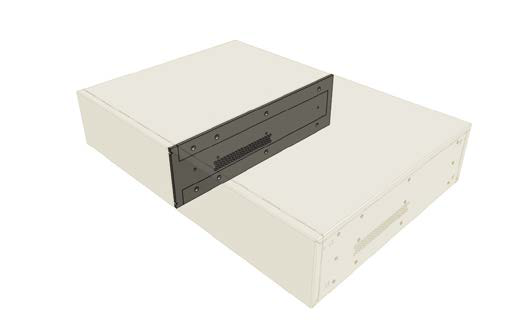

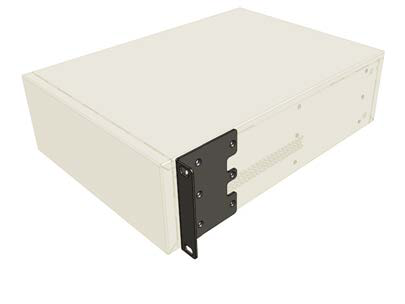

PTM-100 Polarity Test Meter
The PTM-100 is an easy-to-use instrument designed to check the polarity of multifiber cable assemblies. It features a touchscreen interface, supports up to 288 channels, and provides fast and accurate polarity testing for various cable types.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 650 |
| Laser Class | Class 1 |
| Optics Interface Input | MTP/MPO APC Male (SM) |
| Optics Interface Output | MTP/MPO UPC Male (MM) |
| Detected Polarities | A |
| Detected Polarities | B |
| Detected Polarities | C |
| Detected Polarities | D |
| Detected Polarities | custom mappings |
| IL Tolerance | ≤6dB |
| Communication Interface | Ethernet/USB |
| Input Voltage | 100-240VAC, 50-60Hz |
| Power Consumption (W) | 80 Maximum |
| Max Channel Count 2U Half Rack | 48 |
| Max Channel Count 3U Full Rack | 288 |
| Unit Dimensions (W x H x D) 2U Half Rack | 23.6x12.3x5.3cm |
| Unit Dimensions (W x H x D) 3U Full Rack | 44.8x14.3x13cm |
| Shipping Box Dimensions (W x H x D) 2U Half Rack | 38.5x30x33cm |
| Shipping Box Dimensions (W x H x D) 3U Full Rack | 65x55x33cm |
| Unit Weight (kg) | 3.5 |
| Total Shipment Weight (kg) | 8 |
| Operating Temperature (°C) | 0 to 40 |
| Storage Temperature (°C) | -10 to 40 |
| Humidity (non-condensing) | Maximum 95% RH from 0 to 40°C |
