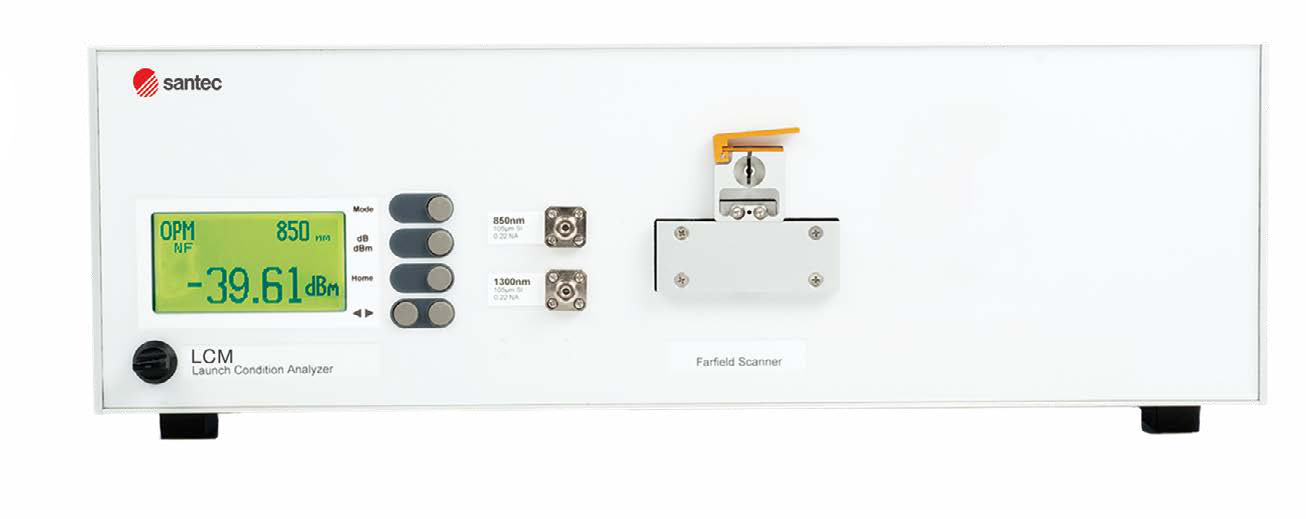

LCM-100 Launch Condition Meter
The LCM-100 is a compact and convenient instrument designed for scanning optical fibers. It utilizes Santec's software to scan and easily plot far-field patterns, enabling comparison to standard launch templates such as the IEC 61280-4-1 Encircled Flux standards. The device is equipped with two internal LEDs with wavelengths of 850nm and 1300nm, and features an internal 105/125µm O2.2 NA fiber for overfill testing in most applications. The optical interface of the instrument accepts all standard fiber sizes and ferrules, with other connector sizes available upon request.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Scanning Range | 0.05NA-0.6NA |
| Scanning Resolution | 0.002NA |
| Scanning Aperture | 0.32NA |
| Receiver Sensitivity (dBm) | -30 to -60 |
| Receiver Wavelength Range (nm) | 850 to 1700 / 450 to 1100 |
| Optical Power Resolution | 0.01dB or 0.1% |
| Measurement Linearity (dB) | ±0.1 |
| Scanning Speed (optical) (seconds) | 30, 10 |
| Connector Interface | Universal 2.5mm |
| Transmitter LED Wavelength (nm) | 850 / 1300 |
| Output Power (typical) (dBm) | -13 |
| Data Interface | USB |
| Power Supply | Input 90-264VAC, 43-63Hz |
| Unit Dimension W×H×D (cm) | 42.5×17×25.4 |
| Operating Temperature (°C) | 0 to 35 |
