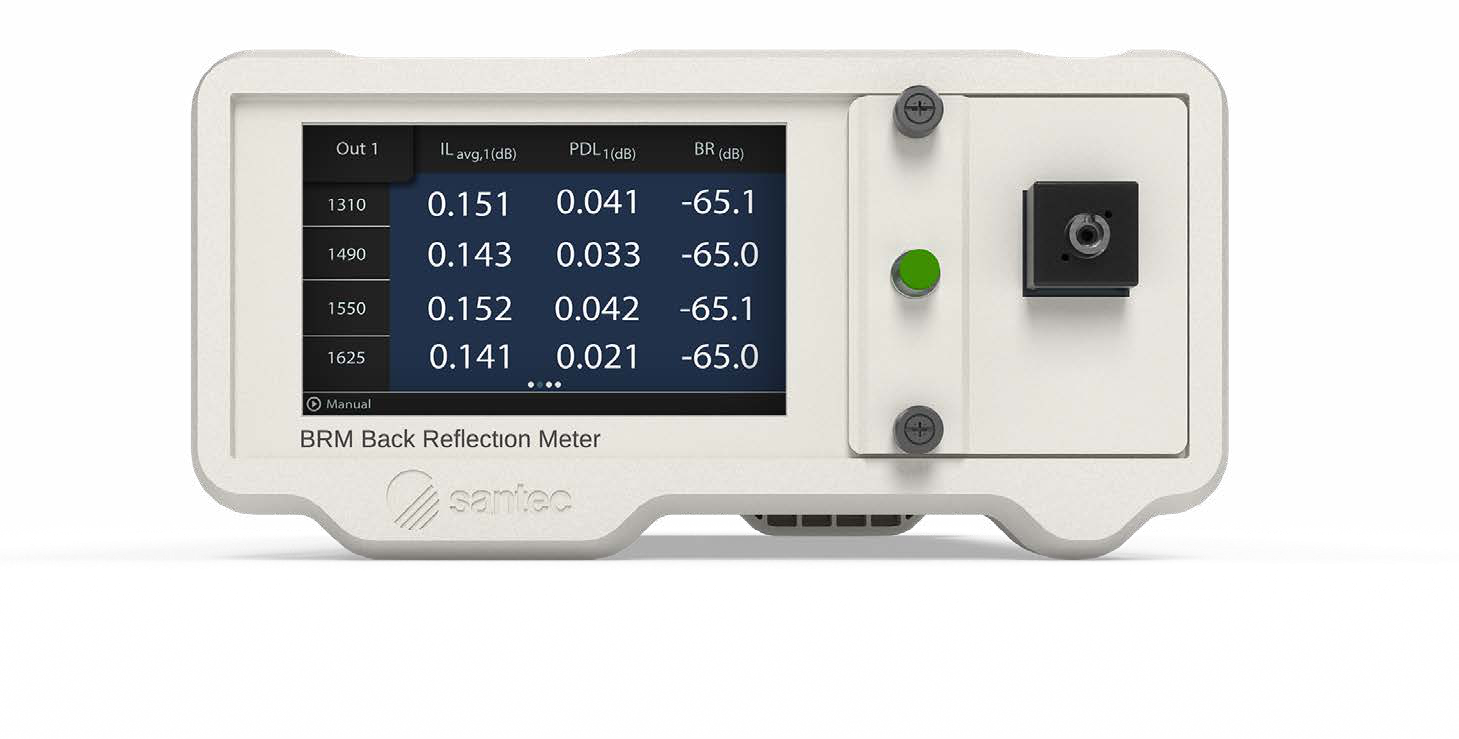

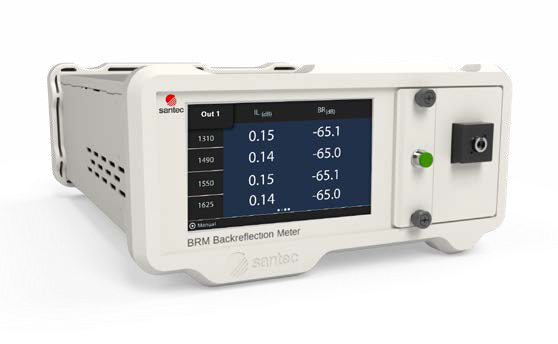

BRM-100 Backreflection Meter
The BRM-100 Backreflection Meter is designed for precise measurement of backreflection and insertion loss in single-mode and multimode fibers. It offers high-speed and accurate testing capabilities, making it ideal for component and cassette testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Type Single-mode | 1310/1490/1550 |
| Fiber Type Multimode | 850/1310/1490/1550/1625 |
| Insertion Loss (dB) Single-mode | ≤0.15 |
| Insertion Loss (dB) Multimode | ≤0.15 |
| Backreflection (dB) Single-mode | ≤-65 |
| Backreflection (dB) Multimode | ≤-65 |
| Absolute Power (dBm) Single-mode | 100 |
| Absolute Power (dBm) Multimode | 100 |
| Dimensions (W×H×D) | 23.5×12.5×32.5cm |
| Weight | 3.8kg |
| Storage Temperature | -10 to 60°C |
| Operating Temperature | 10 to 40°C |
| Humidity | Maximum 90% RH |
