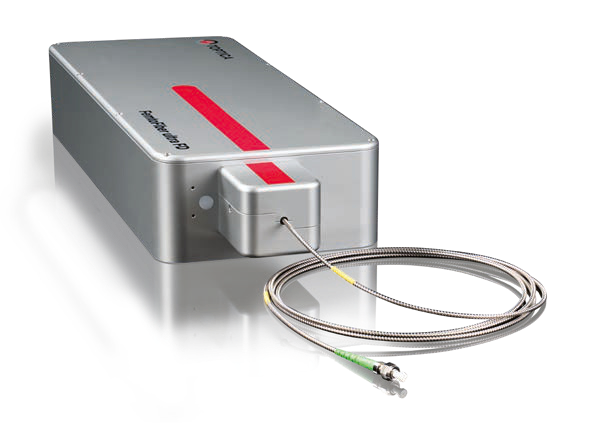

FemtoFiber ultra FD
FemtoFiber ultra FD is a femtosecond fiber laser designed for fiber delivery, simplifying multi-photon microscopy applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength 780nm | 780nm |
| Center Wavelength 920nm | 920nm |
| Center Wavelength 1050nm | 1050nm |
| Pulse Duration 780nm | <170fs |
| Pulse Duration 920nm | <130fs |
| Pulse Duration 1050nm | <130fs |
| Average Output Power After Fiber (w. AOM) 780nm | >0.5W |
| Average Output Power After Fiber (w. AOM) 920nm | >0.5W (typ. 0.6W) |
| Average Output Power After Fiber (w. AOM) 1050nm | >0.7W (typ. 0.8W) |
| Repetition Rate | 80MHz |
| Motorized Dispersion Precompensation (GDD) | -20,000~+1,000fs² |
| Integrated Power Control (AOM) | bandwidth>1MHz, input impedance 1kΩ |
| Linear Polarization | >90%, axis not aligned |
| Fiber Output Connector | FC/APC |
| Fiber Cable Length (max.) | 2m |
| Fiber Cable Type | stainless steel reinforced |
| Dimensions Laser Head | 76×165×465mm³ (excl. feet) |
| Options | FiberDock for collimation with max 3mm beam size (1/e²) |
Applications
Key Features
Datasheet
