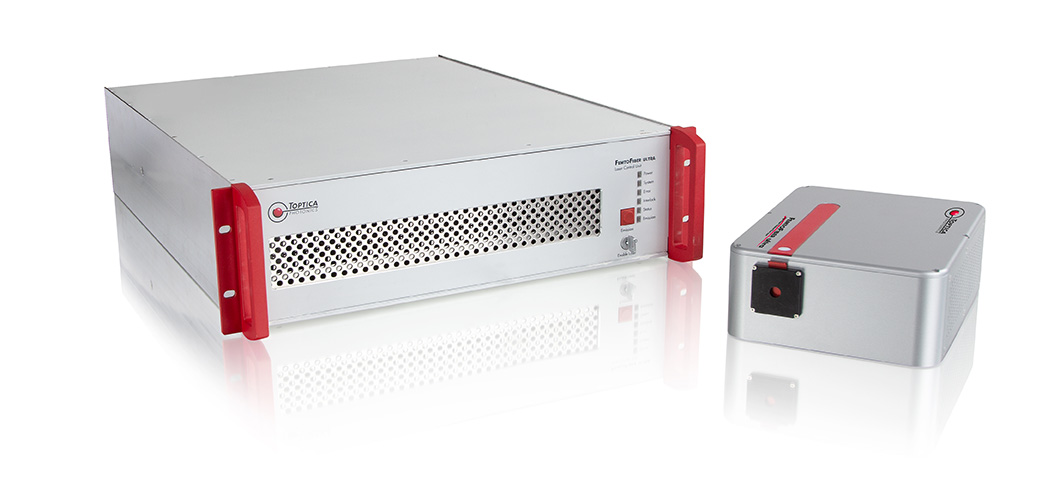

FemtoFiber ultra 920
The FemtoFiber ultra 920 is a compact and robust femtosecond fiber laser optimized for two-photon microscopy applications. It delivers high brightness and low sample heating with Clean-Pulse Technology, making it ideal for deep-tissue imaging and fluorescence excitation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength | 920nm |
| Pulse Duration | <100fs |
| Average Output Power | >1.5W |
| Repetition Rate | 80MHz |
| Motorized Dispersion Precompensation (GDD) | -40,000...+1,000fs² |
| Integrated Power Control (Optional) | >1MHz AOM modulation bandwidth |
| Beam Shape | TEM00 M²<1.2 |
| Beam Divergence | <1mrad |
| Beam Size (1/e²) | Ø1.0mm (typ.) |
| Linear Polarization | 100:1 (≥20dB), vertical |
| Output Coupling | Free space |
| Dimensions Laser Head | 77x165x300mm³ (H x W x D) |
| Weight Laser Head | <5kg |
Applications
Key Features
Datasheet
