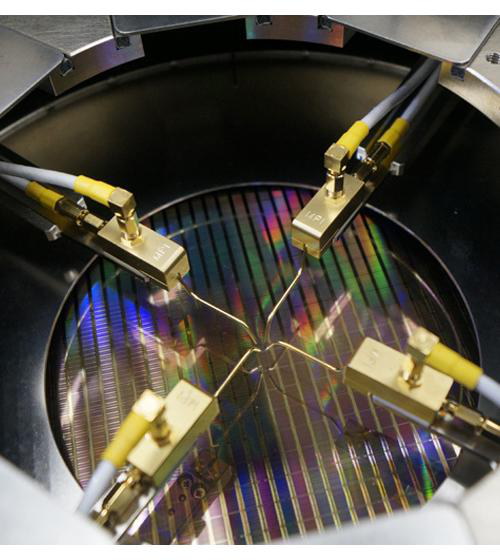

Coax Probe, Triax Probe, Kelvin Probe, Kelvin HT Probe
High-performance probes designed for precise electrical measurements in various applications, offering low leakage current, wide temperature range, and robust connectivity.
Save to Favorites
Overview

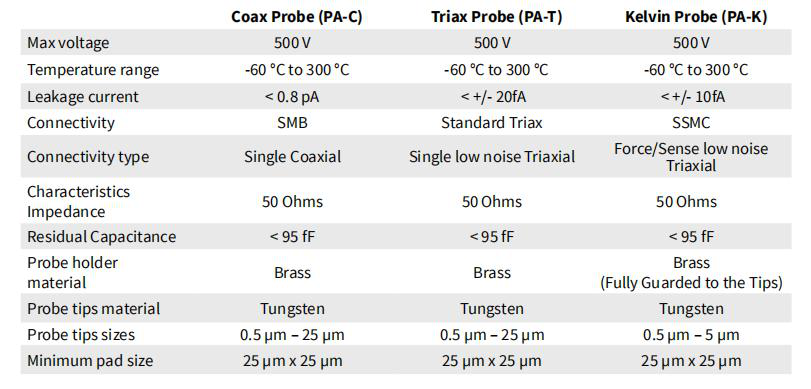

Specifications
| Parameter | Value |
|---|---|
| Max Voltage | 500V |
| Temperature range | -60°C to 300°C |
| Leakage Current Coax Probe | <0.8pA |
| Leakage Current Triax Probe | ≤±20fA |
| Leakage Current Kelvin Probe | ≤±10fA |
| Leakage Current Kelvin HT Probe | ≤±10fA / ≤±20fA |
| Connectivity Coax Probe | SMB / BNC |
| Connectivity Triax Probe | Standard Triax |
| Connectivity Kelvin Probe | Kelvin Triax |
| Connectivity Kelvin HT Probe | Kelvin Triax |
| Connectivity Type Coax Probe | Single |
| Connectivity Type Coax Probe | Coaxial |
| Connectivity Type Triax Probe | Single |
| Connectivity Type Triax Probe | low noise Triaxial |
| Connectivity Type Kelvin Probe | Force / Sense, low noise Triaxial |
| Connectivity Type Kelvin HT Probe | Force / Sense, low noise Triaxial |
| Characteristics Impedance | 50 Ohms |
| Residual Capacitance | <95fF |
| Probe Holder Material Coax Probe | Au-plated Brass |
| Probe Holder Material Triax Probe | Au-plated Brass |
| Probe Holder Material Kelvin Probe | Au-plated Brass |
| Probe Holder Material Kelvin HT Probe | Au-plated Brass (Guarded) |
| Probe Tip Type Coax Probe | Variety of metal tips |
| Probe Tip Type Triax Probe | Coaxial / Guarded |
| Probe Tip Type Kelvin Probe | Coaxial / Guarded |
| Probe Tip Type Kelvin HT Probe | Guarded ceramic blades |
| Probe Tips Material Coax Probe | W, BeCu, Au-plated |
| Probe Tips Material Triax Probe | W |
| Probe Tips Material Kelvin Probe | W |
| Probe Tips Material Kelvin HT Probe | WRe |
| Probe Tips Radius | 0.5μm – 25μm |
| Minimum Pad Size Coax Probe | 25μm x 25μm |
| Minimum Pad Size Triax Probe | 25μm x 25μm |
| Minimum Pad Size Kelvin Probe | 30μm x 30μm |
| Minimum Pad Size Kelvin HT Probe | 25μm x 25μm |
