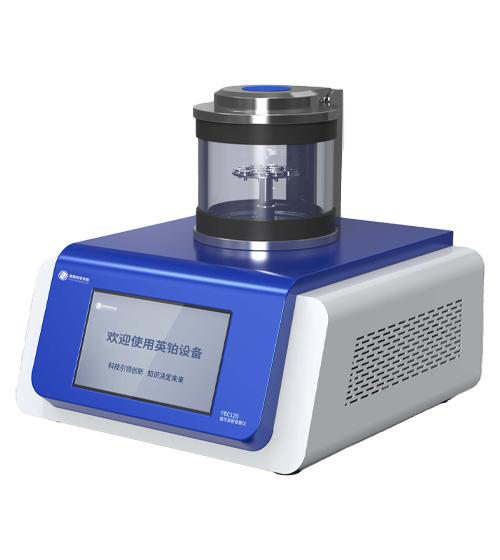

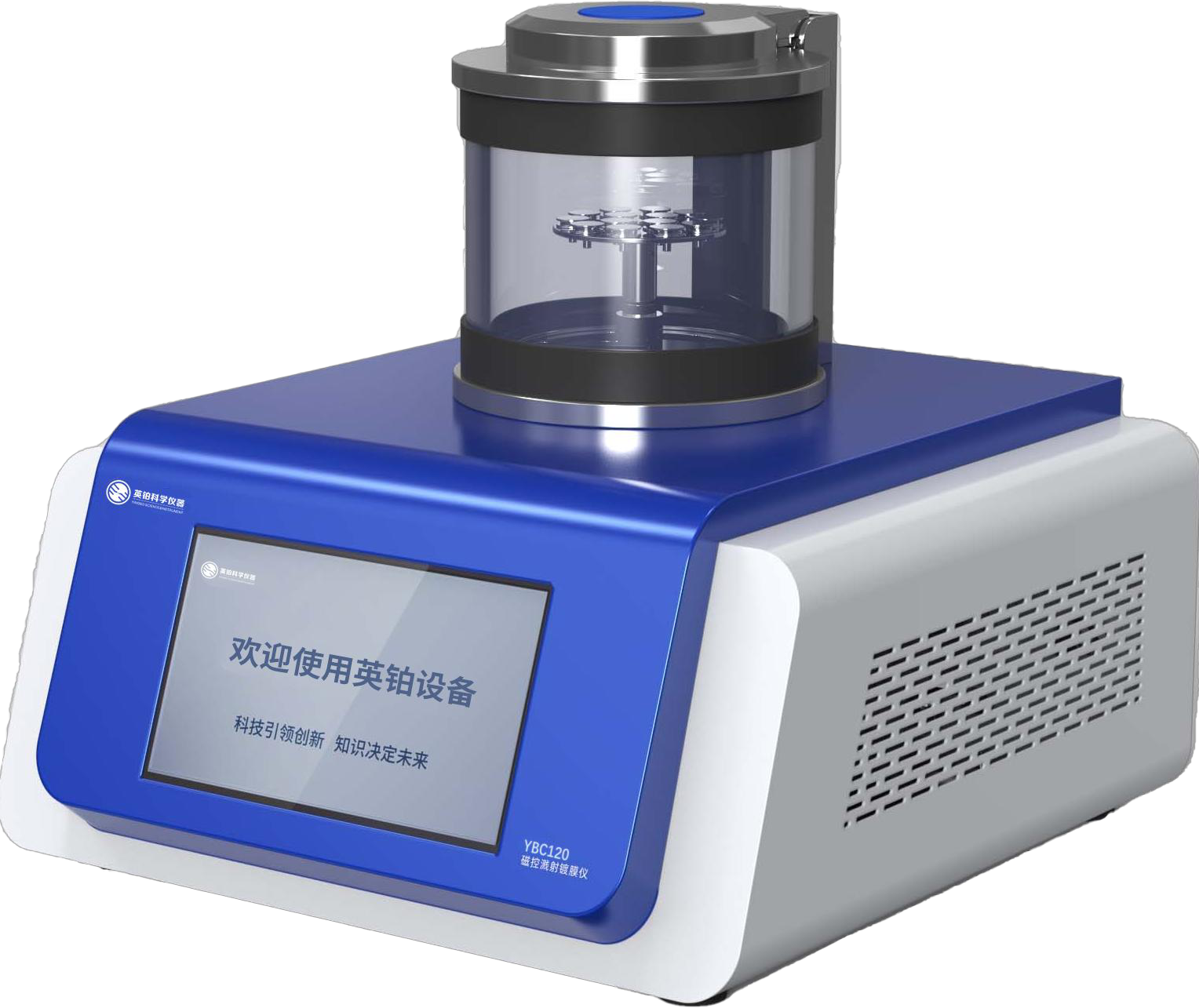

YBC120 Magnetic Control Sputtering Coater
The YBC120 Magnetic Control Sputtering Coater is a high-performance device designed for thin film coating applications. It features a user-friendly interface with a 7-inch touch screen and one-button operation, making it suitable for a wide range of applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 330(L)×300(H)×370(D)mm |
| Display Screen | 7-inch touch screen, full digital display |
| Available Target Materials | Au |
| Available Target Materials | Pt |
| Available Target Materials | Cu |
| Available Target Materials | Ag |
| Available Target Materials | Pd |
| Target Size | Φ50mm, thickness 0.1-2mm |
| Working Current | 1-50mA adjustable |
| Coating Time | 1-9999s adjustable |
| Vacuum Pump | Rotary vacuum pump (optional oil-free pump) |
| Vacuum Pump Speed | 1.1L/s |
| Ultimate Vacuum | ≤0.5Pa |
| Vacuum Chamber | Φ130×100mm high-strength glass |
| Working Gas | Argon or oxygen (air) |
| Working Vacuum | 1-20Pa adjustable |
| Power Supply | AC220V/50Hz |
| Rated Power | 500W |
| Sample Stage Diameter | Φ80mm, compatible with 14 SEM standard sample holders |
| Sample Stage Tilt Angle | 0-45° adjustable |
| Sample Stage Rotation Speed | 0-60rpm adjustable |
| Operating Temperature | 15-30°C |
| Storage Temperature | 5-40°C |
| Ambient Humidity | ≤80% (recommended ≤50%) |
