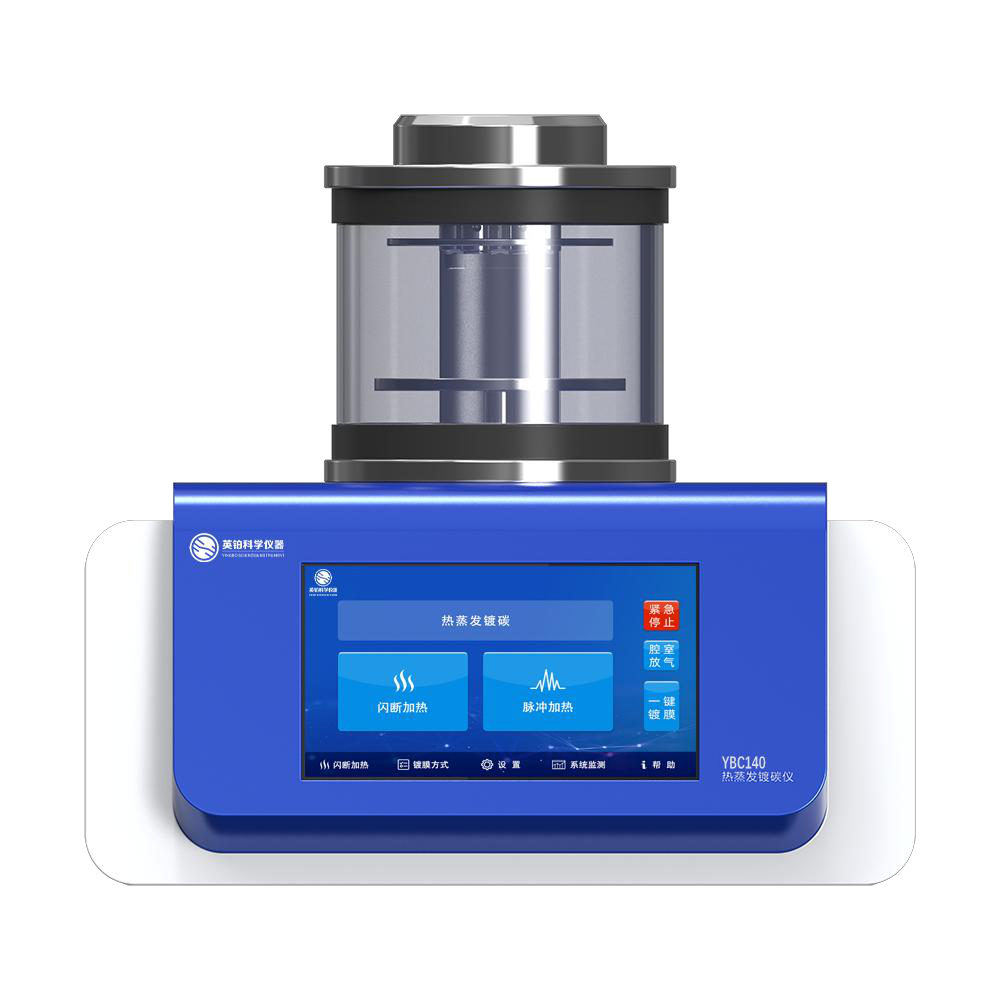

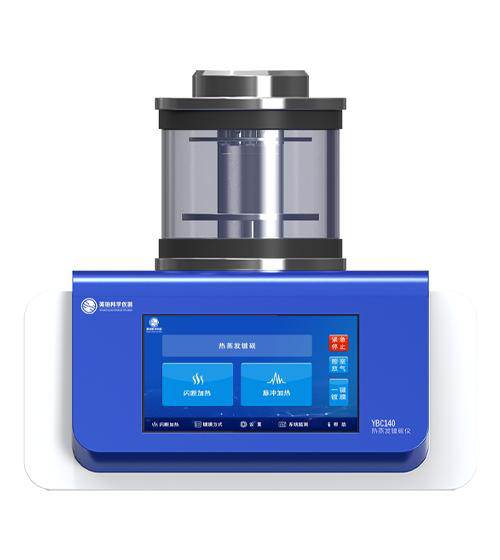

YBC140 Thermal Evaporation Carbon Coater
The YBC140 thermal evaporation carbon coater is designed for automatic carbon coating with a one-button operation. It features a 7-inch touch screen for real-time parameter monitoring, customizable carbon fiber usage, and adjustable sample rotation modes. Suitable for various sample types, it ensures high carbon utilization efficiency and precise control of carbon film thickness.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 330(L)×300(H)×370(D)mm |
| Evaporation Source | High-purity carbon fiber (Φ0.8mm) |
| Number of Evaporation Sources | 4 |
| Evaporation Mode | Continuous evaporation |
| Evaporation Mode | pulse evaporation |
| Working Mode | Fully automatic one-button operation |
| Vacuum Pump | Rotary vane vacuum pump (optional oil-free pump) |
| Vacuum Pump Speed | 1.1L/s |
| Vacuum Chamber | Φ130×100mm high-strength glass |
| Ultimate Vacuum | ≤0.5Pa |
| Power Supply | AC220V/50Hz |
| Rated Power | 500W |
| Sample Stage | Φ80mm, supports 14 standard SEM sample stages |
| Operating Temperature | 15~30°C |
| Storage Temperature | 5~40°C |
| Ambient Humidity | ≤80% (recommended ≤50%) |
