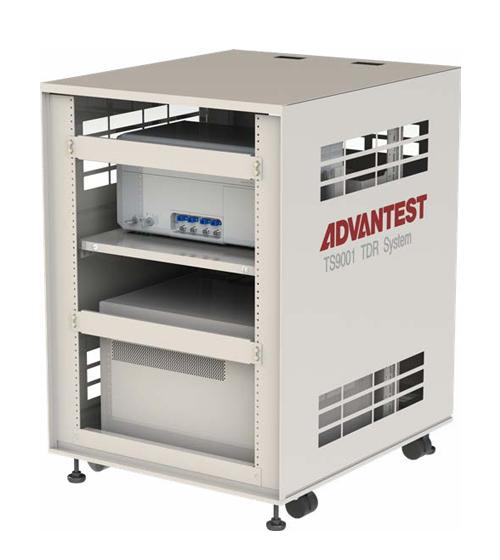

TS9001 TDR System
The TS9001 TDR System is a high-precision time-domain reflectometry (TDR) device designed for fault detection and analysis in transmission lines. It features advanced measurement capabilities and software tools for efficient diagnostics.
Save to Favorites
Overview

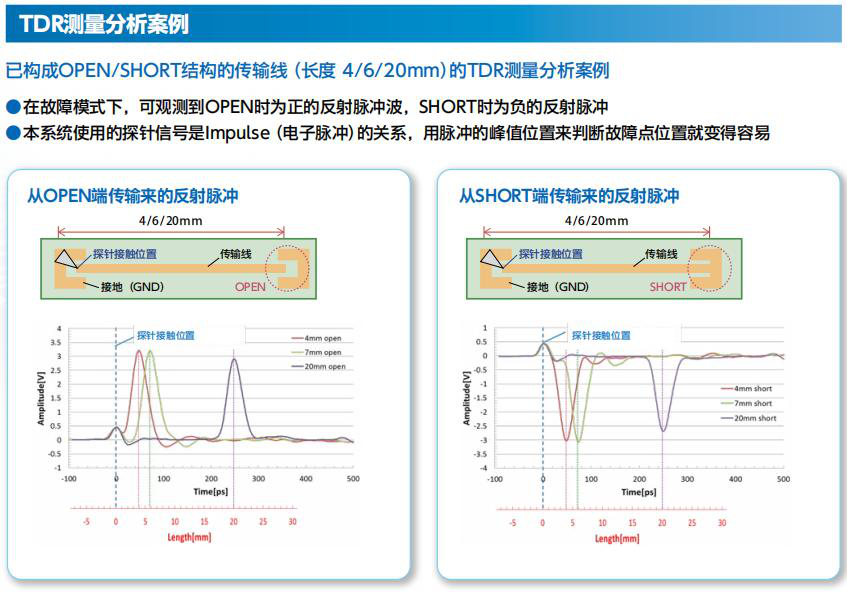

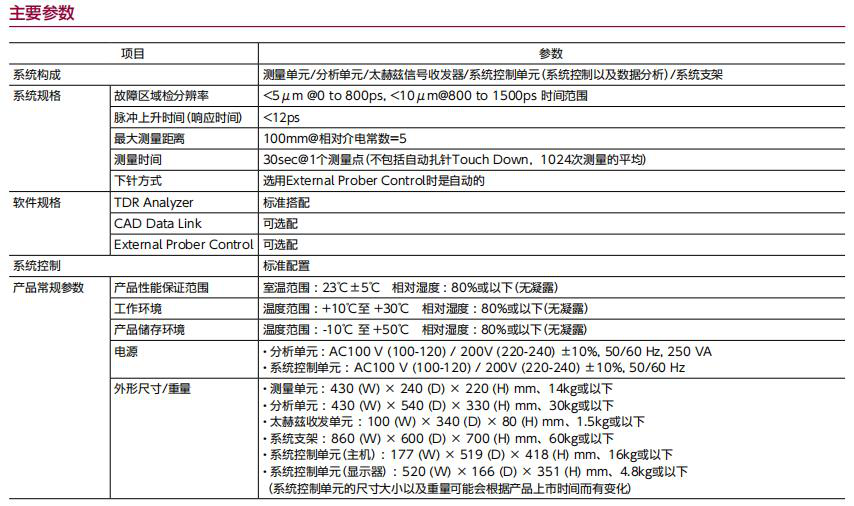

Specifications
| Parameter | Value |
|---|---|
| Fault Area Resolution | <5μm@0 to 800ps, <10μm@800 to 1500ps |
| Fault Rise Time (Response Time) | <12ps |
| Maximum Measurement Range | 100mm relative to electrical length=5 |
| Measurement Time | 30sec@1 temperature point (excluding automatic probe Touch Down, average of 1024 measurements) |
| Software Options | TDR Analyzer (standard), CAD Data Link (optional), External Prober Control (optional) |
| Product Storage Environment | -10°C to +50°C, relative humidity: ≤80% (non-condensing) |
| Operating Environment | 23°C ±5°C, relative humidity: ≤80% (non-condensing) |
| Power Supply | AC100V (100 to 120V)/200V (220 to 240V) ±10%, 50/60Hz, 250VA |
| Dimensions/Weight | Main unit: 430(W) x 240(D) x 210(H) mm, 14kg max; Power supply: 430(W) x 340(D) x 210(H) mm, 15kg max; Rack: 600(W) x 800(D) x 1000(H) mm, 16kg max |
