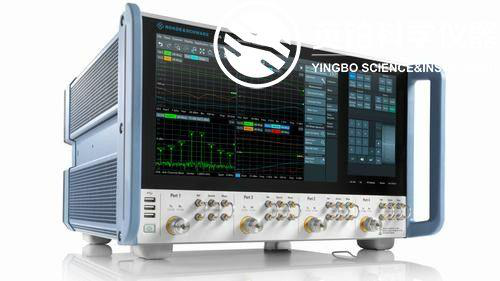

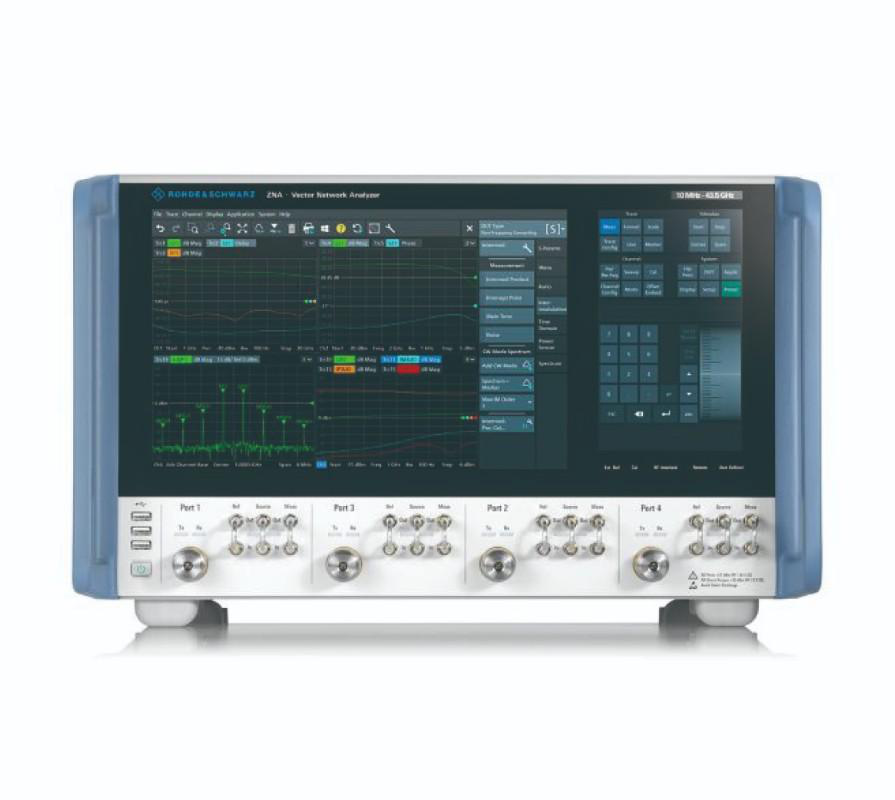

ZNA Vector Network Analyzer
The ZNA Vector Network Analyzer is a high-performance instrument designed for precise and reliable network analysis, offering advanced measurement capabilities and user-friendly operation.
Specification Snapshot
Dynamic Range
>100dB
Interfaces
USB
Interfaces
LAN
Interfaces
GPIB
Interfaces
HDMI
Dimensions
460mm x 300mm x 500mm
Request a Quote
Download Datasheet
Chat
Overview
The ZNA Vector Network Analyzer is a high-performance instrument designed for precise and reliable network analysis, offering advanced measurement capabilities and user-friendly operation.
Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 10MHz-67GHz |
| Dynamic Range | >100dB |
| Number of Measurement Ports | 4 |
| Output Power Range | -50dBm to +10dBm |
| Display | 12.1-inch touchscreen |

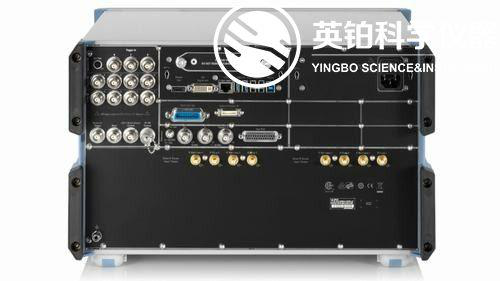

| Interfaces | USB |
| Interfaces | LAN |
| Interfaces | GPIB |
| Interfaces | HDMI |
| Harmonic Distortion | <-30dBc |
| Phase Noise | <-120dBc/Hz at 10kHz offset |
| Measurement Speed | <3ms per point |

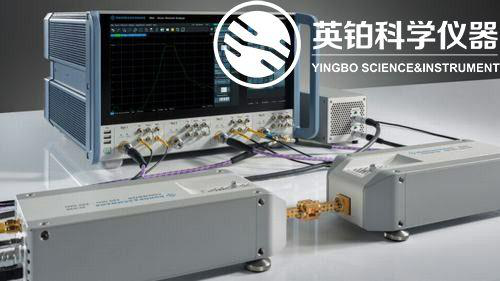

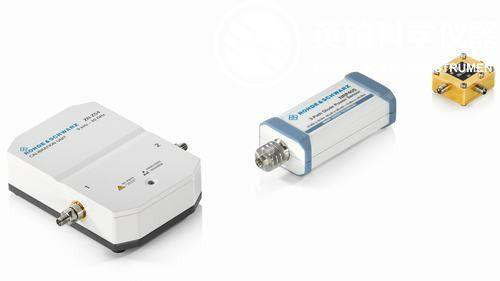

| Calibration Type | Automatic and manual |
| Dimensions | 460mm x 300mm x 500mm |
| Weight | 25kg |
Applications
1. RF component testing 2. Antenna measurements 3. Material characterization 4. Signal integrity analysis
Key Features
1. High dynamic range 2. Intuitive touchscreen interface 3. Multi-port measurement capabilities 4. Advanced calibration options 5. Wide frequency range
Datasheet
Product Datasheet
PDF
Supplier Information
<p>Yingbo Scientific Instruments (Shanghai) Co., Ltd. is an enterprise focused on providing comprehensive solutions for semiconductor wafer-level testing systems, micro-nano science and other fields. It mainly provides advanced semiconductor testing systems and micro-nano scientific instruments and equipment to universities, scientific research institutes and enterprises and institutions, and is committed to bringing scientific research products with market prospects to the market.</p><p><br></p><p><br></p><p> At present, the company has become one of the few domestic companies that provides professional scientific instruments such as semiconductor wafer-level testing systems and micro-nano processing. In the fields of semiconductor wafer-level testing system solutions, micro-nano processing equipment, micro-nano characterization equipment, micro-nano field consumables, micro-nano processing and testing, micro-nano peripheral products and other related fields, the company has an experienced and highly skilled team that can excellently complete all-round services before, during and after sales. The company is headquartered in Shanghai, and has offices in Beijing and Shenzhen. It has established 8 after-sales service outlets in Wuhan, Xi'an, Chengdu, Hefei, Shenyang, Nanjing, Xiamen, Xuzhou and other places. The outlets across the country provide customers with a large number of high-quality equipment and after-sales services, and have won a good reputation and reputation in the semiconductor technology service industry.</p><p><br></p><p> The company adheres to the value concepts of innovation, integrity, professionalism and efficiency, and provides high-quality equipment and technical services to partners. In the future, the company will continue to recommend the introduction of innovative and efficient product instruments and contribute a small amount to the development of the motherland's semiconductor science industry!</p>
