High-Density Fiber Optic Distribution Module Box

High-Density Fiber Optic Distribution Module Box

Supplier
Hyc-system
Part Number
High-Density Fiber Optic Distribution Module Box
Category
Optical Networking Accessories
Origin
China

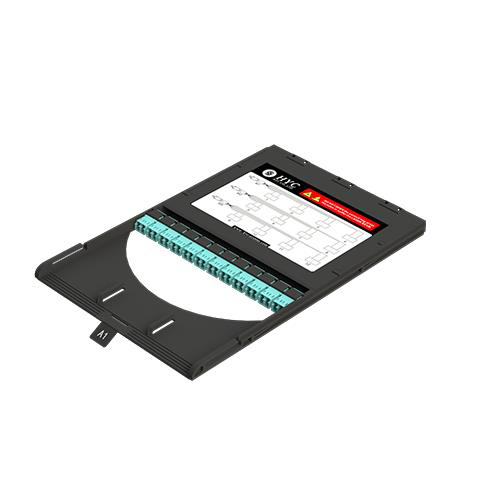

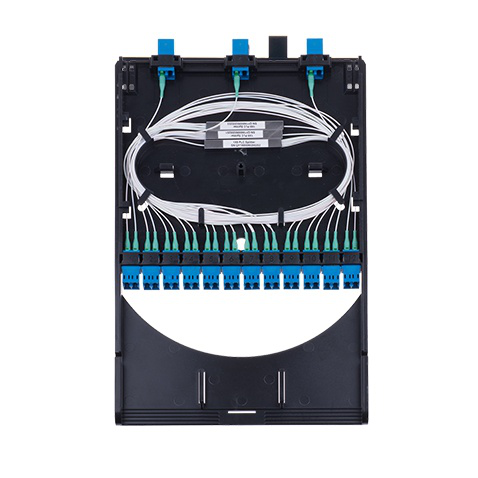

The high-density fiber optic distribution module box supports up to 24 cores. It is mainly used in HYC's 19-inch standard server cabinet, for data center horizontal distribution area (HDA), intermediate distribution area (IDA), and main distribution area (MDA). It can be pre-connected with MPO/MTP connectors to achieve interconnection between trunk cables and terminal equipment.

Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The high-density fiber optic distribution module box supports up to 24 cores. It is mainly used in HYC's 19-inch standard server cabinet, for data center horizontal distribution area (HDA), intermediate distribution area (IDA), and main distribution area (MDA). It can be pre-connected with MPO/MTP connectors to achieve interconnection between trunk cables and terminal equipment.

Specifications

ParameterValue
Dimensions295×196×21.5mm
Maximum CapacityLC 24 cores/SC 12 cores
Operating Temperature-25°C~+70°C
Applicable CableMPO/MTP-LC or MPO/MTP-SC

Applications

1. High-density fiber optic distribution systems 2. Quick distribution systems 3. Data centers 4. SAN systems

Key Features

1. Module supports sequential or reverse connection (AB/BA) 2. Module supports parallel or cross connection (AB/AB) 3. MPO connector is fixed inside the module 4. Fully modular and highly flexible 5. Complies with RoHS/REACH and UL94-V0 flame retardant requirements

Datasheet

Product Datasheet
PDF
Download
