Breakout Patch Cord

Breakout Patch Cord

Supplier
Hyc-system
Part Number
分支跳线
Category
Optical Networking Accessories
Origin
China

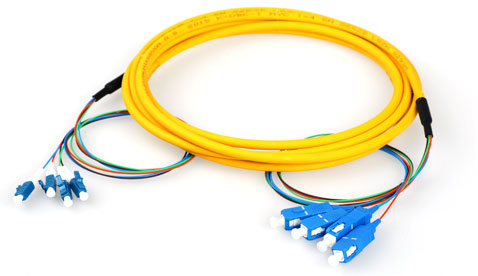

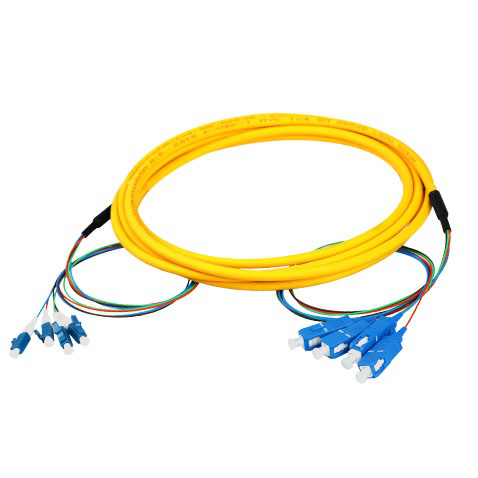

Branch jumpers are generally composed of main cables, sub-cables, branch devices, and connectors. They are mainly used for optical signal distribution and are suitable for various optical network environments. HYC's branch jumpers are high-quality optical fiber connection products with precise structure, optical performance, and connection reliability. They are widely used in local area networks, optical distribution, data centers, and other optical network environments.

Specification Snapshot
Insertion Loss (dB) Grade A Average
<0.08dB
Insertion Loss (dB) Grade A Maximum (97%)
<0.15dB
Insertion Loss (dB) Grade B Average
<0.12dB
Insertion Loss (dB) Grade B Maximum (97%)
<0.25dB
Insertion Loss (dB) Grade C Average
<0.25dB
Insertion Loss (dB) Grade C Maximum (97%)
<0.5dB
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

Branch jumpers are generally composed of main cables, sub-cables, branch devices, and connectors. They are mainly used for optical signal distribution and are suitable for various optical network environments. HYC's branch jumpers are high-quality optical fiber connection products with precise structure, optical performance, and connection reliability. They are widely used in local area networks, optical distribution, data centers, and other optical network environments.

Specifications

ParameterValue
Insertion Loss (dB) Grade A Average<0.08dB
Insertion Loss (dB) Grade A Maximum (97%)<0.15dB
Insertion Loss (dB) Grade B Average<0.12dB
Insertion Loss (dB) Grade B Maximum (97%)<0.25dB
Insertion Loss (dB) Grade C Average<0.25dB
Insertion Loss (dB) Grade C Maximum (97%)<0.5dB
Return Loss (dB) PC>50dB
Return Loss (dB) UPC>50dB
Return Loss (dB) APC>60dB
Mating Durability500times
Operating Temperature-20°C~+70°C
Applicable FiberOS1/OS2, OM1/OM2/OM3/OM4/OM5

Applications

1. Data centers 2. Optical distribution 3. Local area networks

Key Features

1. Low insertion loss 2. High repeatability and stability 3. Easy operation and installation

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Hy
Hyc-system
View Supplier →
Founded in 2000, Guangdong HYC Technology Co., Ltd. has long been deeply engaged in technological innovation and intelligent manufacturing in the optical communication field, providing global customers with integrated customized solutions for the R&D, production, sales, and service of high-performance passive optical components. Headquartered in Qingyuan, Guangdong, the company has built a modern office and production park of over 50,000 square meters, equipped with Class 10,000 and Class 100,000 high-standard cleanrooms. Adhering to the development philosophy of "Intelligent manufacturing as the foundation, quality builds trust," and relying on two major production bases in Qingyuan and Thailand as well as an R&D center in Shenzhen, the company has established a complete business system integrating independent R&D, large-scale production, and global delivery. The company's main products include optical interconnection products such as fiber optic patch cords, flexible optical circuit Shuffle products, and optical module internal connection components, as well as high-end optical component products such as CPO co-packaged optics supporting components, multi-core fiber (MCF) interconnection solutions, and OCS optical switching core devices. It also produces PLC splitters and WDM wavelength division multiplexers. The products are widely used in core scenarios such as computing data centers, cloud computing, and 5G/6G mobile communications. The company currently has more than 3,000 employees and an international-level R&D team. It has independently developed multiple technologies and obtained numerous domestic and international patent certificates. Its products are exported to markets in Europe, Asia, the Americas, and other regions.
