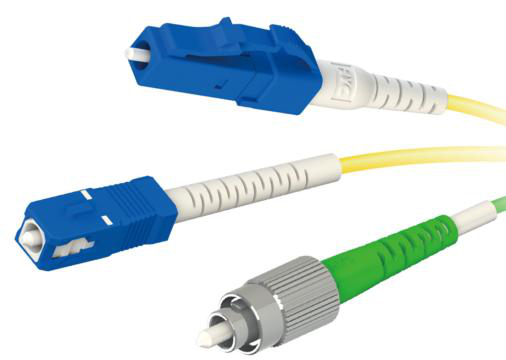

Polarization Maintaining Fiber Optic Connector

Polarization Maintaining Fiber Optic Connector

Supplier
HycSystem
Part Number
Polarization Maintaining Fiber Optic Connector
Category
Optical Networking Accessories
Origin
China

With the increasing applications in aerospace, unmanned driving, industrial manufacturing, and communication, polarization maintaining fiber optic connectors are becoming more popular due to their unique features. To meet market demands, HYC has developed a new type of connector with 360-degree rotation adjustment and stable polarization angle, ensuring high precision and reliability. These connectors are widely used in applications requiring high sensitivity and precision.

Specification Snapshot
Insertion Loss
≤0.30dB, ≤0.20dB, ≤0.15dB
Return Loss
≥50dB (UPC), ≥60dB (APC)
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

With the increasing applications in aerospace, unmanned driving, industrial manufacturing, and communication, polarization maintaining fiber optic connectors are becoming more popular due to their unique features. To meet market demands, HYC has developed a new type of connector with 360-degree rotation adjustment and stable polarization angle, ensuring high precision and reliability. These connectors are widely used in applications requiring high sensitivity and precision.

Specifications

ParameterValue
Connection TypeLC
Connection TypeFC
Connection TypeSC
Applicable Fiber TypeCladding 125μm
Ceramic Ferrule Inner Diameter125.0-125.5μm
Ceramic Ferrule Concentricity≤1.0μm, ≤0.5μm, ≤0.3μm
Insertion Loss≤0.30dB, ≤0.20dB, ≤0.15dB
Return Loss≥50dB (UPC), ≥60dB (APC)
Mating Durability≥500 times, <0.3dB
Operating Temperature-40°C~+85°C

Applications

1. Aerospace 2. Unmanned driving 3. Optical fiber sensing

Key Features

1. Low insertion loss 2. High repeatability and stability 3. 360-degree rotation adjustment with polarization angle stability ±1° 4. Compliance with GR326 and IEC 61300-2 standards

Datasheet

Product Datasheet
PDF
Download
