SC Single Core Fiber Optic Connector

SC Single Core Fiber Optic Connector

Supplier
HycSystem
Part Number
SC Single Core Fiber Optic Connector
Category
Optical Networking Accessories
Origin
China

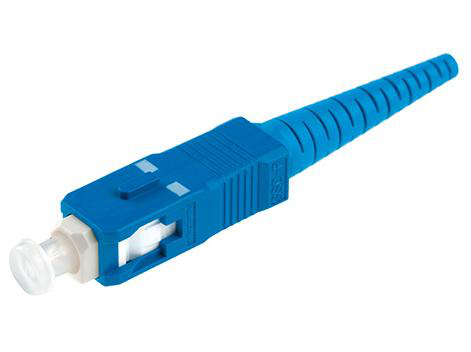

The SC single core fiber optic connector is a device used to connect optical fibers with minimal insertion loss. It ensures stable and reliable signal transmission, making it a convenient and widely used connector in telecommunications, CATV networks, Ethernet networks, and optical communication equipment.

Specification Snapshot
Insertion Loss (Single Mode)
<0.3dB
Insertion Loss (Multimode)
<0.3dB
Return Loss (UPC)
>50dB
Return Loss (APC)
>60dB
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The SC single core fiber optic connector is a device used to connect optical fibers with minimal insertion loss. It ensures stable and reliable signal transmission, making it a convenient and widely used connector in telecommunications, CATV networks, Ethernet networks, and optical communication equipment.

Specifications

ParameterValue
Insertion Loss (Single Mode)<0.3dB
Insertion Loss (Multimode)<0.3dB
Return Loss (UPC)>50dB
Return Loss (APC)>60dB
Fiber Endface Geometric Specifications (Single Mode)125.5μm, 同芯度<1μm
Fiber Endface Geometric Specifications (Multimode)127μm, 同芯度<3μm
Mating Durability500 times <0.3dB
Operating Temperature-40°C~+85°C
Applicable Fiber (Single Mode)PC/APC(9/125μm)
Applicable Fiber (Multimode)PC(50/125μm, 62.5/125μm)

Applications

1. Telecommunications networks 2. CATV networks 3. Ethernet networks 4. Optical communication equipment

Key Features

1. Low insertion loss 2. High repeatability 3. High stability 4. Easy operation 5. ROHS compliant
