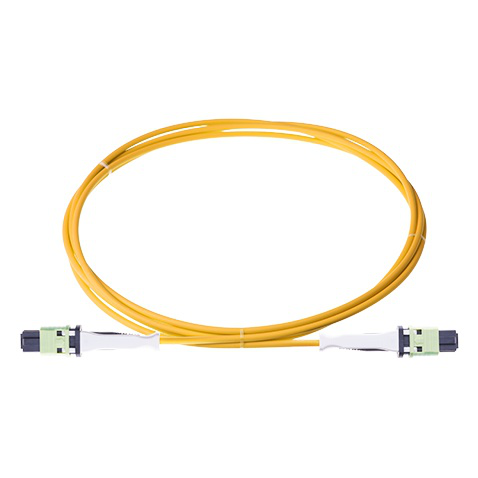

MPO/MTP Pull-Tab 12- and 24-Fiber Patch Cord

MPO/MTP Pull-Tab 12- and 24-Fiber Patch Cord

Supplier
Hyc-system
Part Number
MPO/MTP带拉杆12&24芯跳线
Category
Optical Networking Accessories
Origin
China

MPO/MTP带拉杆12&24芯跳线 is a fiber optic patch cord designed to enhance optical fiber connections, enabling efficient network device signal transmission and interconnection. It offers high convenience, operational simplicity, and flexibility. HYC provides a variety of MPO/MTP patch cords with low insertion loss, high return loss, and stable performance. These cords are compatible with various connectors and are widely used in data centers, optical fiber networks, and other optical communication scenarios.

Specification Snapshot
Insertion Loss (dB) MTP/MPO (超低损) SM
≤0.25dB
Insertion Loss (dB) MTP/MPO (超低损) MM
≤0.35dB
Insertion Loss (dB) MTP/MPO (低损) SM
≤0.5dB
Insertion Loss (dB) MTP/MPO (低损) MM
≤0.35dB
Insertion Loss (dB) MTP/MPO (标准) SM
≤0.7dB
Insertion Loss (dB) MTP/MPO (标准) MM
≤0.7dB
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

MPO/MTP带拉杆12&24芯跳线 is a fiber optic patch cord designed to enhance optical fiber connections, enabling efficient network device signal transmission and interconnection. It offers high convenience, operational simplicity, and flexibility. HYC provides a variety of MPO/MTP patch cords with low insertion loss, high return loss, and stable performance. These cords are compatible with various connectors and are widely used in data centers, optical fiber networks, and other optical communication scenarios.

Specifications

ParameterValue
Insertion Loss (dB) MTP/MPO (超低损) SM≤0.25dB
Insertion Loss (dB) MTP/MPO (超低损) MM≤0.35dB
Insertion Loss (dB) MTP/MPO (低损) SM≤0.5dB
Insertion Loss (dB) MTP/MPO (低损) MM≤0.35dB
Insertion Loss (dB) MTP/MPO (标准) SM≤0.7dB
Insertion Loss (dB) MTP/MPO (标准) MM≤0.7dB
Return Loss (dB) MTP/MPO (超低损) SM≥55dB
Return Loss (dB) MTP/MPO (超低损) MM≥20dB
Return Loss (dB) MTP/MPO (低损) SM≥55dB
Return Loss (dB) MTP/MPO (低损) MM≥20dB
Return Loss (dB) MTP/MPO (标准) SM≥55dB
Return Loss (dB) MTP/MPO (标准) MM≥20dB
Applicable FiberOS2/OM1/OM2/OM3/OM4/OM5

Applications

1. Data centers 2. Optical fiber networks 3. Backbone networks

Key Features

1. Low insertion loss 2. High stability and reliability 3. MPO/MTP connectors with precise alignment 4. Compliance with GR326 or IEC 61300-2 standards

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Hy
Hyc-system
View Supplier →
Founded in 2000, Guangdong HYC Technology Co., Ltd. has long been deeply engaged in technological innovation and intelligent manufacturing in the optical communication field, providing global customers with integrated customized solutions for the R&D, production, sales, and service of high-performance passive optical components. Headquartered in Qingyuan, Guangdong, the company has built a modern office and production park of over 50,000 square meters, equipped with Class 10,000 and Class 100,000 high-standard cleanrooms. Adhering to the development philosophy of "Intelligent manufacturing as the foundation, quality builds trust," and relying on two major production bases in Qingyuan and Thailand as well as an R&D center in Shenzhen, the company has established a complete business system integrating independent R&D, large-scale production, and global delivery. The company's main products include optical interconnection products such as fiber optic patch cords, flexible optical circuit Shuffle products, and optical module internal connection components, as well as high-end optical component products such as CPO co-packaged optics supporting components, multi-core fiber (MCF) interconnection solutions, and OCS optical switching core devices. It also produces PLC splitters and WDM wavelength division multiplexers. The products are widely used in core scenarios such as computing data centers, cloud computing, and 5G/6G mobile communications. The company currently has more than 3,000 employees and an international-level R&D team. It has independently developed multiple technologies and obtained numerous domestic and international patent certificates. Its products are exported to markets in Europe, Asia, the Americas, and other regions.
