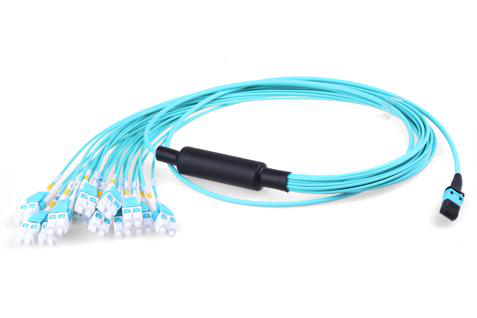

MPO/MTP-LC Fanout Cable
MPO/MTP-LC fanout cables are composed of four parts: trunk cable, fanout, and connector. They are designed for high-density optical fiber cabling systems, offering low insertion loss, high repeatability, and stable performance. These cables are suitable for data centers, backbone networks, optical distribution networks, and other optical network applications.
Specification Snapshot
Insertion Loss LC-SM-UPC
≤0.3dB
Insertion Loss LC-MM-APC
≤0.3dB
Insertion Loss LC-MM-PC
≤0.3dB
Insertion Loss MTP/MPO-SM-Standard
≤0.7dB
Insertion Loss MTP/MPO-MM-Standard
≤0.7dB
Insertion Loss MTP/MPO-SM-LowLoss
≤0.35dB
Request a Quote
Download Datasheet
Chat
Overview
MPO/MTP-LC fanout cables are composed of four parts: trunk cable, fanout, and connector. They are designed for high-density optical fiber cabling systems, offering low insertion loss, high repeatability, and stable performance. These cables are suitable for data centers, backbone networks, optical distribution networks, and other optical network applications.
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss LC-SM-UPC | ≤0.3dB |
| Insertion Loss LC-MM-APC | ≤0.3dB |
| Insertion Loss LC-MM-PC | ≤0.3dB |
| Insertion Loss MTP/MPO-SM-Standard | ≤0.7dB |
| Insertion Loss MTP/MPO-MM-Standard | ≤0.7dB |
| Insertion Loss MTP/MPO-SM-LowLoss | ≤0.35dB |
| Insertion Loss MTP/MPO-MM-LowLoss | ≤0.35dB |
| Insertion Loss MTP/MPO-MM-LowLoss-24F | ≤0.5dB |
| Return Loss LC-SM-UPC | >50dB |
| Return Loss LC-MM-APC | >60dB |
| Return Loss LC-MM-PC | >30dB |
| Return Loss MTP/MPO-SM-Standard | >55dB |
| Return Loss MTP/MPO-MM-Standard | >20dB |
| Return Loss MTP/MPO-SM-LowLoss | >55dB |
| Return Loss MTP/MPO-MM-LowLoss | >20dB |
| Mating Durability | 500 times |
| Operating Temperature | -25°C~+70°C |
| Applicable Fiber | OS2/OM1/OM2/OM3/OM4 |
Applications
1. Data centers 2. Optical distribution networks 3. Backbone networks
Key Features
1. Low insertion loss 2. High repeatability and stability 3. MPO/MTP connectors with precise alignment 4. Compliant with GR326 or IEC 61300-2 standards
Datasheet
Product Datasheet
PDF
Supplier Information
<p>Guangdong Yiyuantong Technology Co., Ltd. (HYC) was founded in 2000 in Shenzhen, China, and moved to Qingyuan, Guangdong in 2014. HYC is an influential passive optical communication device ODM/JDM manufacturer in the industry, focusing on providing design, R&D, manufacturing, sales and service of basic passive optical components. The company adheres to the concept of 'quality manufacturing and refined operation', with large-scale production and strict testing standards, continuously improving product manufacturing processes to achieve efficient and high-capacity output, providing customers with capacity that effectively matches demand and rapid response services. Actively promoting global industrial layout, relying on domestic Qingyuan production base and overseas Thailand production base, together with Shenzhen marketing R&D center and global sales center, building a unique competitive independent R&D, production and sales system. The company mainly produces optical interconnect products, high-speed transceiver modules & CPO optical components, multi-core fiber components, PLC splitters, WDM and other passive optical devices, which are widely used in AI, cloud computing, data center interconnection, fiber access, 5G/6G mobile communications and other fields. The company has over 2,000 employees, an international-level R&D team, and products are exported to Europe, Asia, America and other markets.</p>
