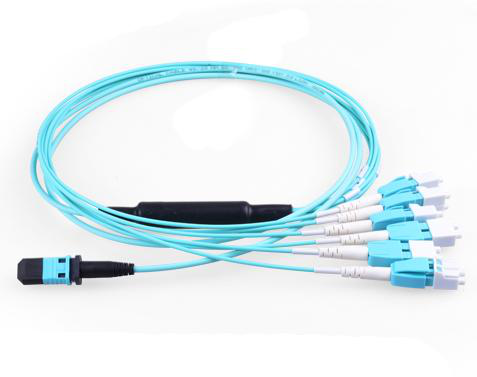

MPO/MTP-LC Uniboot Fanout Cable

MPO/MTP-LC Uniboot Fanout Cable

Supplier
Hyc-system
Part Number
MPO/MTP-LC Uniboot Fanout Cable
Category
Optical Networking Accessories
Origin
China

MPO/MTP-LC Uniboot fanout cable is designed for high-density network connections. It features a compact structure, high precision, and low insertion loss, making it suitable for data centers, backbone networks, and optical fiber links.

Specification Snapshot
Insertion Loss UPC SM LC Uniboot
≤0.3dB
Insertion Loss APC SM LC Uniboot
≤0.3dB
Insertion Loss PC MM LC Uniboot
≤0.3dB
Insertion Loss SM MTP/MPO (Standard)
≤0.7dB
Insertion Loss MM MTP/MPO (Standard)
≤0.7dB
Insertion Loss SM MTP/MPO (Low Loss)
≤0.35dB
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

MPO/MTP-LC Uniboot fanout cable is designed for high-density network connections. It features a compact structure, high precision, and low insertion loss, making it suitable for data centers, backbone networks, and optical fiber links.

Specifications

ParameterValue
Insertion Loss UPC SM LC Uniboot≤0.3dB
Insertion Loss APC SM LC Uniboot≤0.3dB
Insertion Loss PC MM LC Uniboot≤0.3dB
Insertion Loss SM MTP/MPO (Standard)≤0.7dB
Insertion Loss MM MTP/MPO (Standard)≤0.7dB
Insertion Loss SM MTP/MPO (Low Loss)≤0.35dB
Insertion Loss MM MTP/MPO (Low Loss)≤0.5dB
Return Loss UPC SM LC Uniboot>50dB
Return Loss APC SM LC Uniboot>60dB
Return Loss PC MM LC Uniboot>30dB
Return Loss SM MTP/MPO (Standard)>55dB
Return Loss MM MTP/MPO (Standard)>20dB
Return Loss SM MTP/MPO (Low Loss)>55dB
Return Loss MM MTP/MPO (Low Loss)>20dB
Mating Durability500 times
Operating Temperature-25°C~70°C
Applicable FiberOS2/OM1/OM2/OM3/OM4

Applications

1. Data centers 2. Optical fiber cabling 3. Backbone networks

Key Features

1. Low insertion loss 2. High quality and stable performance 3. MPO/MTP connectors with precise alignment 4. Compliant with GR326 or IEC 61300-2 standards

Datasheet

Product Datasheet
PDF
Download
