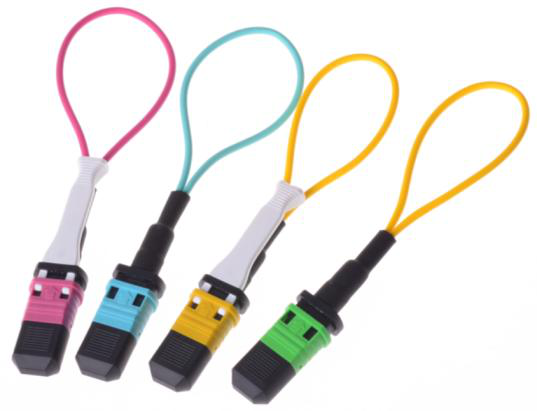

MPO/MTP Loopback
MPO/MTP loopback is a device that connects two ends of an optical fiber into one MPO/MTP connector, enabling network testing and signal feedback. It is mainly used for network equipment testing and signal reception, suitable for various scenarios such as data centers and optical networks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) SM 8F,12F (Low Grade) | <0.7dB |
| Insertion Loss (dB) SM 24F (Low Grade) | <1.0dB |
| Insertion Loss (dB) MM 8F,12F,16F (Low Grade) | <0.7dB |
| Insertion Loss (dB) MM 24F,32F (Low Grade) | <1.0dB |
| Insertion Loss (dB) SM 8F,12F (High Grade) | <1.4dB |
| Insertion Loss (dB) SM 24F (High Grade) | <1.4dB |
| Insertion Loss (dB) MM 8F,12F,16F (High Grade) | <1.4dB |
| Insertion Loss (dB) MM 24F,32F (High Grade) | <1.4dB |
| Return Loss (dB) SM (Low Grade) | ≥55dB |
| Return Loss (dB) MM (Low Grade) | ≥20dB |
| Return Loss (dB) SM (High Grade) | ≥55dB |
| Return Loss (dB) MM (High Grade) | ≥20dB |
| Operating Temperature | -25°C~+70°C |
| Applicable Fiber | OS2/OM1/OM2/OM3/OM4/OM5 |
