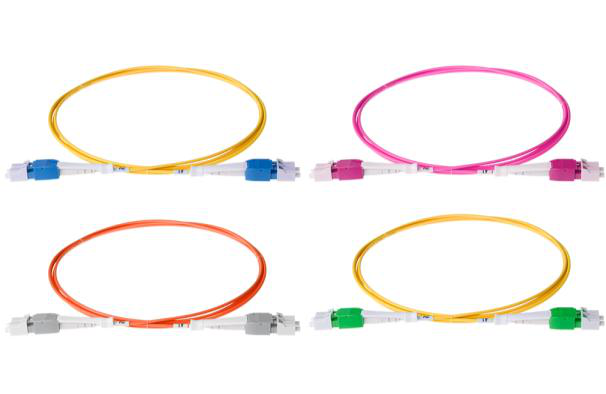

LC Long Pull Rod Uniboot Patch Cord
This is a type of LC Uniboot patch cord with a long pull rod designed for high-density assembly environments. Compared to traditional duplex connection systems, this product is more compact and has a smaller size, effectively improving high-density wiring environments. It is suitable for high-density wiring scenarios, providing a reasonable solution for limited space. HYC has designed this product to meet the industry's highest assembly density connector requirements.
Specification Snapshot
Return Loss (dB) Multimode
≥30dB
Ceramic Ferrule Size Tolerance
125.5μm Tolerance<1μm (Single Mode); 127μm Tolerance<3μm (Multimode)
Request a Quote
Download Datasheet
Chat
Overview
This is a type of LC Uniboot patch cord with a long pull rod designed for high-density assembly environments. Compared to traditional duplex connection systems, this product is more compact and has a smaller size, effectively improving high-density wiring environments. It is suitable for high-density wiring scenarios, providing a reasonable solution for limited space. HYC has designed this product to meet the industry's highest assembly density connector requirements.
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) Single Mode | Standard<0.3dB; Typical<0.15dB |
| Insertion Loss (dB) Multimode | Standard<0.3dB; Typical<0.10dB |
| Return Loss (dB) Single Mode | ≥55dB(UPC); ≥65dB(APC) |
| Return Loss (dB) Multimode | ≥30dB |
| Ceramic Ferrule Size Tolerance | 125.5μm Tolerance<1μm (Single Mode); 127μm Tolerance<3μm (Multimode) |
| Mating Durability | 500 times <0.3dB |
| Operating Temperature | -40°C~+85°C |
| Applicable Fiber | PC/APC(9/125μm) (Single Mode); PC(50/125μm, 62.5/125μm) (Multimode) |
Applications
1. Telecommunications networks 2. CATV networks 3. Data networks 4. Optical communication equipment
Key Features
1. Meets high-density application requirements 2. Compact cable management 3. Extremely small size 4. Multiple color options 5. Compatible with 1.2-2.5mm cable assembly 6. Complies with IEC and GR326 standards 7. Customizable logo
Datasheet
Product Datasheet
PDF
Supplier Information
<p>Guangdong Yiyuantong Technology Co., Ltd. (HYC) was founded in 2000 in Shenzhen, China, and moved to Qingyuan, Guangdong in 2014. HYC is an influential passive optical communication device ODM/JDM manufacturer in the industry, focusing on providing design, R&D, manufacturing, sales and service of basic passive optical components. The company adheres to the concept of 'quality manufacturing and refined operation', with large-scale production and strict testing standards, continuously improving product manufacturing processes to achieve efficient and high-capacity output, providing customers with capacity that effectively matches demand and rapid response services. Actively promoting global industrial layout, relying on domestic Qingyuan production base and overseas Thailand production base, together with Shenzhen marketing R&D center and global sales center, building a unique competitive independent R&D, production and sales system. The company mainly produces optical interconnect products, high-speed transceiver modules & CPO optical components, multi-core fiber components, PLC splitters, WDM and other passive optical devices, which are widely used in AI, cloud computing, data center interconnection, fiber access, 5G/6G mobile communications and other fields. The company has over 2,000 employees, an international-level R&D team, and products are exported to Europe, Asia, America and other markets.</p>
