LC Short Pull Uniboot Patch Cord

LC Short Pull Uniboot Patch Cord

Supplier
HycSystem
Part Number
LC Short Pull Uniboot Patch Cord
Category
Optical Networking Accessories
Origin
China

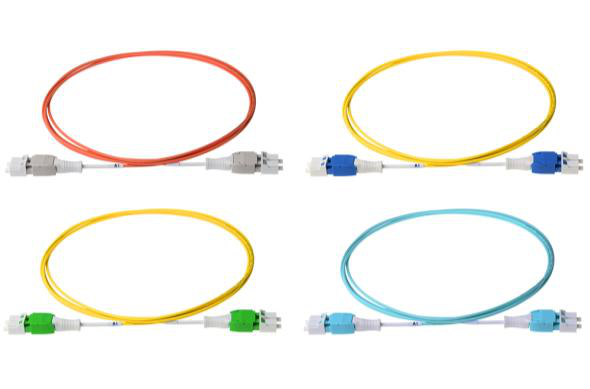

This is a type of LC Uniboot patch cord designed for high-density assembly environments. Compared to traditional optical connection systems, this product is more compact and lightweight, effectively improving space utilization. It is suitable for high-density optical fiber distribution frames and cabinets, providing a more reasonable utilization of space.

Specification Snapshot
Return Loss (dB) Multimode
≥30dB
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

This is a type of LC Uniboot patch cord designed for high-density assembly environments. Compared to traditional optical connection systems, this product is more compact and lightweight, effectively improving space utilization. It is suitable for high-density optical fiber distribution frames and cabinets, providing a more reasonable utilization of space.

Specifications

ParameterValue
Insertion Loss (dB) Single ModeStandard<0.3dB; Typical<0.15dB
Insertion Loss (dB) MultimodeStandard<0.3dB; Typical<0.10dB
Return Loss (dB) Single Mode≥55dB(UPC); ≥65dB(APC)
Return Loss (dB) Multimode≥30dB
Ceramic Ferrule Aperture Error125.5μm Same-axis error<1μm (Single Mode); 127μm Same-axis error<3μm (Multimode)
Mating Durability500 times <0.3dB
Operating Temperature-40°C~+85°C
Applicable FiberPC/APC(9/125μm) (Single Mode); PC(50/125μm, 62.5/125μm) (Multimode)

Applications

1. Telecommunications networks 2. CATV networks 3. Data networks 4. Optical communication equipment

Key Features

1. Meets high-density application requirements 2. Compact cable structure 3. Extremely lightweight 4. Multiple color options 5. Compatible with 1.2-2.5mm cable installation 6. Complies with IEC and GR326 standards 7. Customizable logo

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Hy
HycSystem
View Supplier →
<p>Guangdong Yiyuantong Technology Co., Ltd. (HYC) was founded in 2000 in Shenzhen, China, and moved to Qingyuan, Guangdong in 2014. HYC is an influential passive optical communication device ODM/JDM manufacturer in the industry, focusing on providing design, R&D, manufacturing, sales and service of basic passive optical components. The company adheres to the concept of 'quality manufacturing and refined operation', with large-scale production and strict testing standards, continuously improving product manufacturing processes to achieve efficient and high-capacity output, providing customers with capacity that effectively matches demand and rapid response services. Actively promoting global industrial layout, relying on domestic Qingyuan production base and overseas Thailand production base, together with Shenzhen marketing R&D center and global sales center, building a unique competitive independent R&D, production and sales system. The company mainly produces optical interconnect products, high-speed transceiver modules & CPO optical components, multi-core fiber components, PLC splitters, WDM and other passive optical devices, which are widely used in AI, cloud computing, data center interconnection, fiber access, 5G/6G mobile communications and other fields. The company has over 2,000 employees, an international-level R&D team, and products are exported to Europe, Asia, America and other markets.</p>
