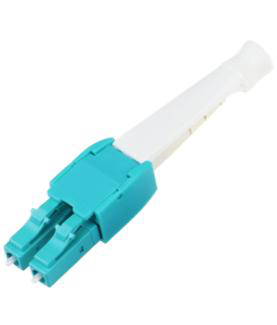

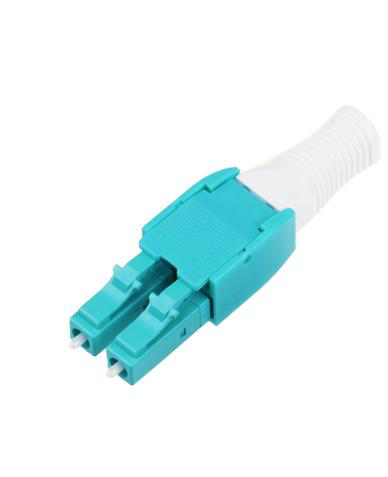

LC Uniboot Pull-Tab Connector
This is a type of LC connector designed for high-density environments, featuring a Uniboot design. Compared to traditional connectors, this product is more compact and durable, making it suitable for high-density applications. It optimizes space utilization and provides excellent performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Ceramic Ferrule Hole Diameter and Roundness Single-mode | 125.5μm; 同心度<1μm |
| Ceramic Ferrule Hole Diameter and Roundness Multi-mode | 127μm; 同心度<3μm |
| Operating Temperature | -40°C~+85°C |
Applications
Key Features
Datasheet
