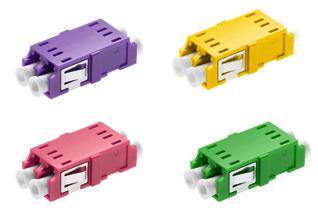

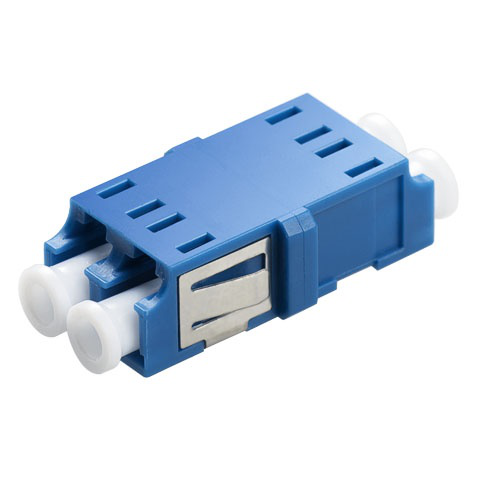

LC Duplex Adapter SC Type
LC duplex adapters are devices used to connect two optical fibers, minimizing optical loss and ensuring high-performance optical signal transmission. HYC's LC duplex adapters feature easy installation, high stability, and low insertion loss, making them widely applicable in telecommunications networks, CATV, and FTTX.
Specification Snapshot
Insertion Loss SM/PC
<0.2dB
Insertion Loss SM/APC
<0.2dB
Insertion Loss MM/PC
<0.2dB
Request a Quote
Download Datasheet
Chat
Overview
LC duplex adapters are devices used to connect two optical fibers, minimizing optical loss and ensuring high-performance optical signal transmission. HYC's LC duplex adapters feature easy installation, high stability, and low insertion loss, making them widely applicable in telecommunications networks, CATV, and FTTX.
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss SM/PC | <0.2dB |
| Insertion Loss SM/APC | <0.2dB |
| Insertion Loss MM/PC | <0.2dB |
| Retention Force | 100-300g |
| Repeatability | <0.2dB(500times) |
| Temperature Range | -40°C~+85°C |
Applications
1. Telecommunications networks 2. CATV 3. FTTX
Key Features
1. Low insertion loss 2. High stability and reliability 3. Compliant with GR326 or IEC 61300-2 standards 4. Meets RoHS and UL 94-V0 requirements
Datasheet
Product Datasheet
PDF
Supplier Information
<p>Guangdong Yiyuantong Technology Co., Ltd. (HYC) was founded in 2000 in Shenzhen, China, and moved to Qingyuan, Guangdong in 2014. HYC is an influential passive optical communication device ODM/JDM manufacturer in the industry, focusing on providing design, R&D, manufacturing, sales and service of basic passive optical components. The company adheres to the concept of 'quality manufacturing and refined operation', with large-scale production and strict testing standards, continuously improving product manufacturing processes to achieve efficient and high-capacity output, providing customers with capacity that effectively matches demand and rapid response services. Actively promoting global industrial layout, relying on domestic Qingyuan production base and overseas Thailand production base, together with Shenzhen marketing R&D center and global sales center, building a unique competitive independent R&D, production and sales system. The company mainly produces optical interconnect products, high-speed transceiver modules & CPO optical components, multi-core fiber components, PLC splitters, WDM and other passive optical devices, which are widely used in AI, cloud computing, data center interconnection, fiber access, 5G/6G mobile communications and other fields. The company has over 2,000 employees, an international-level R&D team, and products are exported to Europe, Asia, America and other markets.</p>
