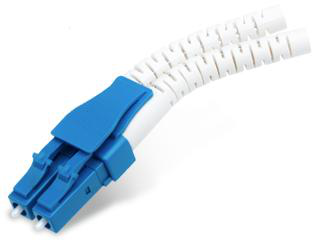

LC Duplex Connector
This is a high-performance connector that combines two single LC connectors into a duplex assembly using a zipcord single cable. Compared to traditional systems, the duplex connector can be assembled in one step, allowing for quick and easy assembly. The design ensures high precision and compatibility with various applications, making it convenient for customers to use.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) Single mode | <0.3dB |
| Insertion Loss (dB) Multimode | <0.3dB |
| Return Loss (dB) Single Mode | ≥50dB(UPC);≥60dB(APC) |
| Return Loss (dB) Multimode | ≥30dB |
| Ceramic Ferrule Hole Diameter and Roundness Tolerance Single Mode | 125.5μm; Roundness:<1μm |
| Ceramic Ferrule Hole Diameter and Roundness Tolerance Multimode | 127μm; Roundness:<3μm |
| Operating Temperature | -40°C~+85°C |
| Applicable Optical Fiber Single Mode | PC/APC(9/125μm) |
| Applicable Optical Fiber Multimode | PC(50/125μm,62.5/125μm) |
