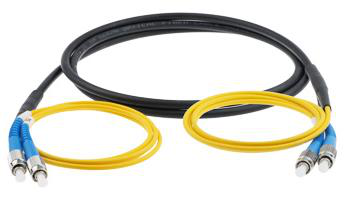

FTTA Patch Cord
FTTA patch cord is a key product for connecting remote terminals and central machines, such as 4G networks between RRU and BBU, or 5G networks between AAU and DU. HYC provides comprehensive FTTA patch cord solutions with high pressure resistance, durability, low insertion loss, and easy installation. Widely used in FTTA, CATV, and other network scenarios.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (Grade A) | <0.08dB |
| Insertion Loss (Grade B) | <0.12dB |
| Insertion Loss (Grade C) | <0.25dB |
| Return Loss (Grade A) | ≥50dB(PC) |
| Return Loss (Grade B) | ≥50dB(UPC);≥60dB(APC) |
| Return Loss (Grade C) | ≥50dB |
| Plugging Test Cycles | 500times |
| Operating Temperature | -25°C~+70°C |
| Applicable Fiber | OS1/OS2 |
Applications
Key Features
Datasheet
